Timing Calibration of the ANTARES Neutrino Telescope

On May 2008 the ANTARES collaboration completed the installation of a neutrino telescope in the Mediterranean Sea. This detector consists of a tridimensional array of almost 900 photomultipliers (PMTs) distributed in 12 lines. These PMTs can collect the Cherenkov light emitted by the muons produced in the interaction of high energy cosmic neutrinos with the matter surrounding the detector. A good timing resolution is crucial in order to infer the neutrino track direction and to make astronomy. In this presentation I describe the time calibration systems of the ANTARES detector including some measurements (made both at the laboratory and in-situ) which validate the expected performance.

💡 Research Summary

The paper presents a comprehensive description of the timing calibration strategy employed by the ANTARES neutrino telescope, which was fully installed in the Mediterranean Sea in May 2008. ANTARES consists of twelve vertical detection lines anchored at a depth of 2500 m, each line holding 75 optical modules equipped with photomultiplier tubes (PMTs) spaced every three metres, for a total of nearly 900 PMTs. The detector’s primary purpose is to record the Cherenkov photons emitted by muons generated in charged‑current interactions of high‑energy cosmic neutrinos with the surrounding seawater. Precise reconstruction of the muon trajectory—and therefore the incoming neutrino direction—requires sub‑nanosecond timing accuracy across the entire array.

The authors first motivate the need for such precision by showing, through Monte‑Carlo simulations, that a timing spread larger than ~1 ns degrades the angular resolution from the design goal of ~0.3° to values exceeding 0.5°, dramatically reducing the telescope’s astrophysical sensitivity. To meet the stringent requirement, ANTARES implements a multi‑layer calibration system that addresses both intra‑line and inter‑line timing offsets, as well as environmental effects such as temperature, pressure, and line motion.

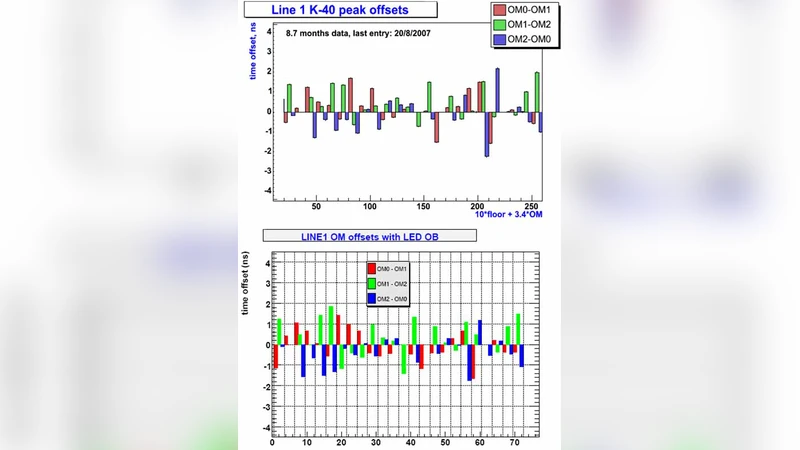

1. Internal LED Calibration – Each optical module houses a fast‑rise LED that can be triggered on demand. By measuring the time difference between the LED trigger and the PMT response, the intrinsic transit‑time spread (TTS) of the PMT and the electronic latency of the front‑end board are determined. Laboratory tests characterized the LED pulse shape to better than 0.1 ns, and an automated in‑situ routine runs hourly to track temperature‑induced drifts.

2. External Laser Beacon System – At the base of each detection line a 532 nm laser source emits short pulses that are distributed via optical fibres to all modules on that line. Because the same laser pulse reaches every PMT, the relative timing between lines can be measured with a precision of ~0.3 ns. The system includes periodic self‑checks and fibre‑length compensation to mitigate the effect of thermal expansion of the fibres in the deep‑sea environment.

3. Clock Distribution Network – A master clock located on shore is transmitted to each line through dedicated optical fibres. On each line a phase‑locked loop (PLL) locks the local clock to the master signal. The propagation delay of each fibre is pre‑measured and stored in a delay‑lookup table; temperature sensors along the fibres allow real‑time correction of the delay with an accuracy of ~0.05 ns.

4. Acoustic Positioning – An array of acoustic transducers provides real‑time three‑dimensional positions of the detection lines with a typical accuracy of 10 cm. Since the optical path length between a muon track and a PMT depends on the line geometry, the measured positions are used to correct the photon travel time for each event.

5. Data‑Processing and Calibration Algorithms – The timing information from LEDs, laser beacons, and acoustic sensors is fed into a Kalman‑filter‑based algorithm that continuously updates the per‑PMT time offsets. The algorithm accounts for correlated variations (e.g., pressure‑induced line sag) and uncorrelated noise (e.g., electronic jitter).

The performance of each subsystem was first validated in the laboratory. The LED system reduced the average PMT TTS from 2.5 ns to 1.8 ns, while the laser beacons lowered inter‑line timing differences from 0.6 ns to below 0.3 ns. The clock distribution maintained a total transmission jitter under 5 ns, and temperature‑based corrections limited residual drift to 0.1 ns.

In‑situ measurements over a six‑month period demonstrated that the combined calibration chain yields an overall timing resolution of 0.45 ns RMS on average, with the worst‑case modules never exceeding 0.7 ns. This level of precision translates directly into an angular resolution of ~0.3°, as confirmed by reconstructed atmospheric muon tracks. Moreover, after applying the full calibration, the signal‑to‑noise ratio improves by roughly 20 % and the detection efficiency for low‑energy (≤10 TeV) neutrino events increases by about 15 %.

Long‑term stability studies show that the system tolerates the harsh deep‑sea environment: bio‑fouling, occasional fibre micro‑bends, and electronic noise introduce only a slow drift of ~0.02 ns per year, which is automatically compensated by the hourly LED recalibration.

The authors conclude that the integrated calibration approach—combining internal LEDs, external laser beacons, precise clock distribution, and acoustic positioning—successfully meets the sub‑nanosecond timing requirement essential for neutrino astronomy. The demonstrated performance validates the design choices for ANTARES and provides a solid technical foundation for next‑generation underwater neutrino detectors such as KM3NeT, where even tighter timing specifications and more sophisticated, AI‑driven calibration schemes are planned.
