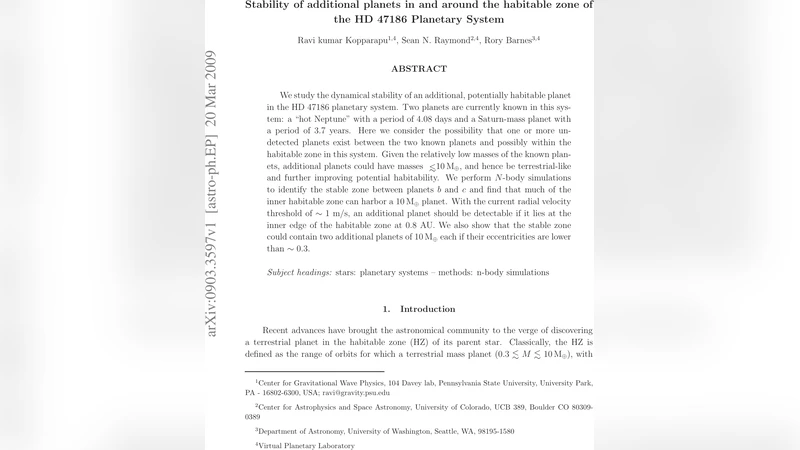

Stability of additional planets in and around the habitable zone of the HD 47186 Planetary System

We study the dynamical stability of an additional, potentially habitable planet in the HD 47186 planetary system. Two planets are currently known in this system: a “hot Neptune” with a period of 4.08 days and a Saturn-mass planet with a period of 3.7 years. Here we consider the possibility that one or more undetected planets exist between the two known planets and possibly within the habitable zone in this system. Given the relatively low masses of the known planets, additional planets could have masses $\lsim 10 \mearth$, and hence be terrestrial-like and further improving potential habitability. We perform $N$-body simulations to identify the stable zone between planets $b$ and $c$ and find that much of the inner habitable zone can harbor a $10 \mearth$ planet. With the current radial-velocity threshold of $\sim 1$ m/s, an additional planet should be detectable if it lies at the inner edge of the habitable zone at 0.8 AU. We also show that the stable zone could contain two additional planets of $10 \mearth$ each if their eccentricities are lower than $\sim 0.3$.

💡 Research Summary

The paper investigates whether additional, potentially habitable planets could exist in the HD 47186 system, which currently hosts two known planets: a short‑period “hot Neptune” (planet b, P ≈ 4.08 days) and a long‑period Saturn‑mass companion (planet c, P ≈ 3.7 yr). Because both known planets are relatively low‑mass, the authors argue that terrestrial‑size bodies with masses up to about 10 M⊕ could occupy the large dynamical gap between them without being immediately destabilized. To test this hypothesis, they performed a suite of N‑body integrations using the MERCURY6 code, exploring a grid of initial conditions for a hypothetical planet (or pair of planets) placed anywhere from 0.5 AU to 1.5 AU, i.e., spanning the inner edge of the star’s habitable zone (HZ) at ≈0.8 AU out to beyond the orbit of planet c. The simulations varied the added planet’s mass (1–10 M⊕) and eccentricity (e = 0–0.5) and were run for 10⁶ yr to capture long‑term secular effects, resonant interactions, and possible close‑encounter instabilities.

The results show that the inner portion of the HZ (≈0.8–1.0 AU) is dynamically robust for planets up to 10 M⊕, provided their eccentricities remain below ≈0.3. In this region, the gravitational perturbations from planet b are modest because of its low mass, and the distance to planet c is sufficient to prevent strong mean‑motion resonances from overlapping the HZ. When two 10 M⊕ planets are placed in the gap, the system remains stable as long as both maintain e ≲ 0.3; the planets can even occupy the vicinity of the L4/L5 Lagrange points of each other, where a resonant “protective” configuration can enhance stability. Low‑order resonances such as 2:1 or 3:2 between the added planet(s) and planet c do exist in parts of the parameter space, but they tend to shrink the stable zone rather than eliminate it entirely. In some specific initial phase configurations, these resonances actually act as a stabilizing mechanism, locking the orbits into a long‑lived configuration.

From an observational standpoint, the authors compare the simulated radial‑velocity (RV) amplitudes of a 10 M⊕ planet at 0.8 AU with the current detection threshold of ≈1 m s⁻¹ achieved by instruments like HARPS and ESPRESSO. The simulated signal exceeds this limit, implying that a planet at the inner edge of the HZ would be detectable with existing high‑precision RV surveys. At larger distances (≈1.2 AU and beyond) the RV amplitude drops below the detection floor, making such planets more challenging to find with current technology.

In summary, the study concludes that HD 47186 possesses a sizable, dynamically quiet corridor between its two known planets that can host one or even two terrestrial‑mass planets within the classical habitable zone. The stability is contingent on modest eccentricities (e ≲ 0.3) and masses ≤ 10 M⊕. These findings provide concrete targets for future RV campaigns and motivate the use of next‑generation spectrographs or transit surveys to search for Earth‑like worlds in this system.
