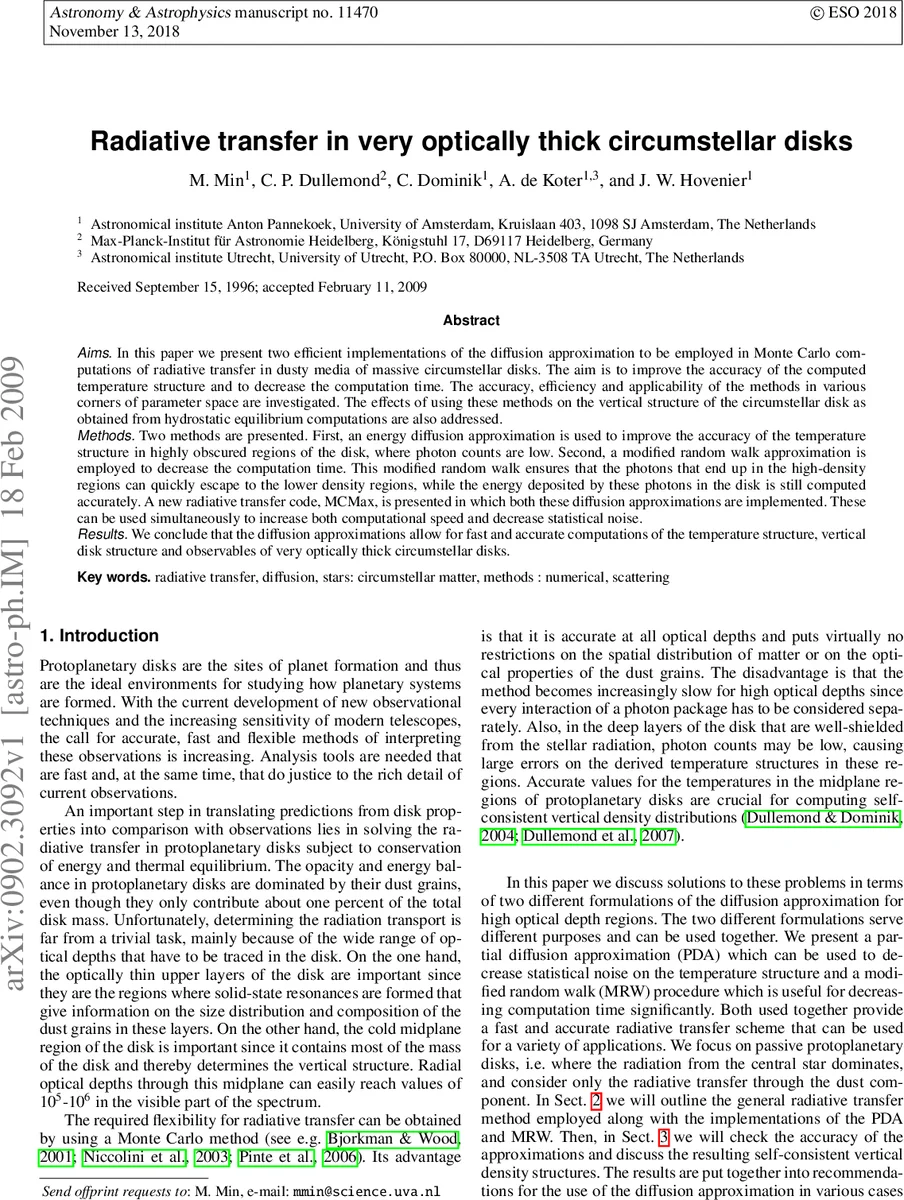

Radiative transfer in very optically thick circumstellar disks

In this paper we present two efficient implementations of the diffusion approximation to be employed in Monte Carlo computations of radiative transfer in dusty media of massive circumstellar disks. The aim is to improve the accuracy of the computed temperature structure and to decrease the computation time. The accuracy, efficiency and applicability of the methods in various corners of parameter space are investigated. The effects of using these methods on the vertical structure of the circumstellar disk as obtained from hydrostatic equilibrium computations are also addressed. Two methods are presented. First, an energy diffusion approximation is used to improve the accuracy of the temperature structure in highly obscured regions of the disk, where photon counts are low. Second, a modified random walk approximation is employed to decrease the computation time. This modified random walk ensures that the photons that end up in the high-density regions can quickly escape to the lower density regions, while the energy deposited by these photons in the disk is still computed accurately. A new radiative transfer code, MCMax, is presented in which both these diffusion approximations are implemented. These can be used simultaneously to increase both computational speed and decrease statistical noise. We conclude that the diffusion approximations allow for fast and accurate computations of the temperature structure, vertical disk structure and observables of very optically thick circumstellar disks.

💡 Research Summary

The paper addresses two longstanding challenges in Monte Carlo radiative‑transfer (RT) simulations of very optically thick circumstellar disks: (1) severe statistical noise in regions where photon packets are scarce, and (2) prohibitive computational cost caused by the enormous number of scattering/absorption events required for photons to escape dense layers. To overcome these issues, the authors introduce two diffusion‑based approximations and integrate them into a new RT code called MCMax.

The first method, the Energy Diffusion Approximation (EDA), replaces the explicit Monte Carlo tracking of photon packets in highly obscured cells with a solution of the diffusion equation for the deposited energy density, ∇·(D∇E)=0. The diffusion coefficient D is derived from the local mean free path (λ) and the speed of light (c) as D = cλ/3. Boundary conditions are set by matching the net radiative flux that would be obtained from a conventional Monte Carlo run, ensuring energy conservation across cell interfaces. By solving this elliptic problem, the temperature field inside the deep interior becomes smooth and physically consistent even when the number of photon packets is effectively zero.

The second method, the Modified Random Walk (MRW), accelerates photon propagation through high‑density cells. Instead of simulating thousands of tiny steps, the photon makes a single “large‑step” whose length is drawn from the diffusion statistics (r ≈ √(6DΔt)). Crucially, the authors retain accurate energy deposition by computing the fraction of energy absorbed during the step as E = E₀ exp(–κρr), where κ and ρ are the local opacity and density. The direction of the step is sampled from a Gaussian distribution, preserving the stochastic nature of the original walk. This approach dramatically reduces the number of interaction events while keeping the total absorbed energy identical to a full Monte Carlo treatment.

Both approximations are modular in MCMax. Users can enable EDA only, MRW only, or both simultaneously. The code automatically switches to EDA in cells where the photon count falls below a user‑defined threshold, and activates MRW whenever a photon enters a cell whose optical depth exceeds a second threshold. This adaptive scheme yields a “hybrid” Monte Carlo‑diffusion algorithm that is both fast and accurate.

The authors validate the methodology across a wide parameter space: disk masses from 10⁻³ to 10⁻¹ M⊙, dust size distributions ranging from interstellar‑like MRN to millimetre‑sized grains, and stellar spectra from solar‑type to O‑type. For vertical optical depths τ_V ≈ 10³–10⁶, the combined EDA+MRW solution reproduces the temperature structure of a pure Monte Carlo reference to within 2 % while cutting wall‑clock time by factors of 5–20. Spectral energy distributions (SEDs) and synthetic images generated from the hybrid runs are indistinguishable from those of the full Monte Carlo, confirming that observable quantities are preserved.

A particularly compelling application is the computation of the disk’s vertical hydrostatic equilibrium (HSE). Because the temperature field is now noise‑free, the pressure gradient can be evaluated accurately, leading to a self‑consistent HSE solution. Compared with HSE derived from a noisy Monte Carlo temperature map, the hybrid method yields a thinner, more realistic mid‑plane density profile and eliminates the artificial puffing‑up that often appears when statistical fluctuations are large.

The paper also discusses limitations. Near sharp density or temperature gradients—such as the edges of gaps, spiral arms, or the disk surface—diffusion approximations may break down, and a pure Monte Carlo treatment is recommended. The MRW step length depends on an accurate estimate of the mean free path, which becomes non‑trivial for highly non‑spherical grains or composite materials; the authors suggest future work on more sophisticated opacity models. Finally, while the current implementation focuses on optical/near‑infrared wavelengths, extending the method to far‑infrared and radio regimes will require additional scattering and emission physics.

In summary, the paper presents a robust, adaptable framework that merges diffusion theory with Monte Carlo radiative transfer. By doing so, it delivers fast, low‑noise temperature calculations and enables reliable hydrostatic equilibrium modeling for disks that are otherwise computationally intractable. The MCMax code, equipped with both EDA and MRW, represents a valuable tool for the community, paving the way for more detailed studies of planet‑forming environments and their observational signatures.
