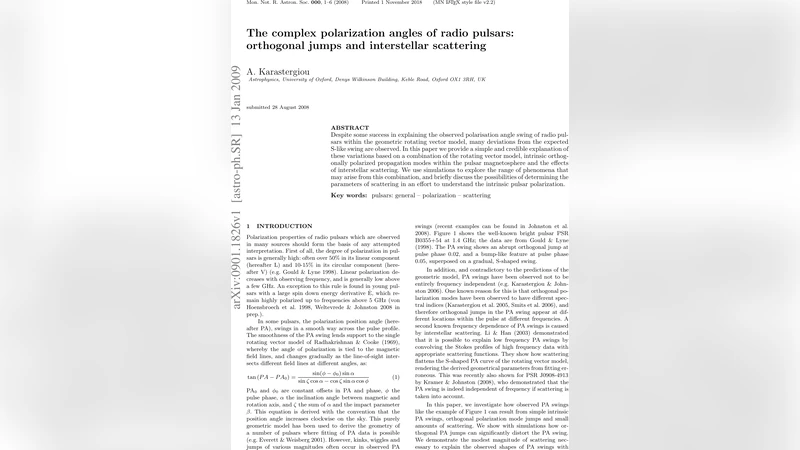

The complex polarization angles of radio pulsars: orthogonal jumps and interstellar scattering

Despite some success in explaining the observed polarisation angle swing of radio pulsars within the geometric rotating vector model, many deviations from the expected S-like swing are observed. In this paper we provide a simple and credible explanation of these variations based on a combination of the rotating vector model, intrinsic orthogonally polarized propagation modes within the pulsar magnetosphere and the effects of interstellar scattering. We use simulations to explore the range of phenomena that may arise from this combination, and briefly discuss the possibilities of determining the parameters of scattering in an effort to understand the intrinsic pulsar polarization.

💡 Research Summary

The paper tackles the long‑standing problem that many radio pulsars display polarization angle (PA) swings that deviate markedly from the smooth S‑shaped curve predicted by the classic Rotating Vector Model (RVM). While the RVM successfully captures the geometric projection of the magnetic field line as the star rotates, real data frequently show abrupt 90° jumps, asymmetric swings, and frequency‑dependent distortions that cannot be reconciled with a pure geometric picture.
To explain these anomalies the authors combine two well‑established physical effects: (1) the presence of two orthogonal polarization modes (OPMs) generated within the pulsar magnetosphere, and (2) interstellar scattering caused by the turbulent ionized interstellar medium (ISM). In the magnetosphere, the ordinary and extraordinary modes propagate with slightly different phase velocities and attenuation rates. When their relative intensities cross, the observed PA undergoes a sudden orthogonal jump. Meanwhile, scattering by a thin or extended screen introduces multi‑path propagation, producing a convolution of the intrinsic signal with a scattering kernel. This convolution adds a frequency‑dependent time delay and rotates the Stokes vector, effectively smoothing, shifting, or warping the underlying RVM curve.
The authors construct a numerical model that starts from a pure RVM PA curve, superposes an OPM transition function (parameterized by mode‑mixing ratio, transition phase, and relative phase offset), and then convolves the result with a complex scattering kernel (characterized by scattering timescale τ and strength). By sweeping a broad parameter space—varying OPM mixing from negligible to dominant, and τ from a few microseconds up to a few percent of the pulse width—they generate synthetic PA profiles and compare them with high‑quality multi‑frequency observations of several pulsars.
Key findings are:

1. Pure RVM cannot reproduce abrupt 90° jumps; such jumps emerge naturally when a strong OPM transition coincides with modest scattering.
2. Even weak scattering (τ ≪ pulse width) produces a gradual flattening of the PA swing at lower frequencies, matching the observed trend of reduced curvature in long‑wavelength data.
3. When τ reaches ~5–10 % of the pulse period, the PA curve becomes markedly asymmetric, reproducing the “non‑canonical” swings seen in many pulsars.
4. By fitting the simulated curves to observed PA data, the authors demonstrate that it is possible to infer scattering parameters (screen distance, electron‑density fluctuation spectrum) alongside OPM characteristics, effectively turning the PA irregularities into diagnostic tools.
   The paper presents case studies: PSR B0329+54, which exhibits a near‑ideal S‑shaped PA, is best fit with minimal OPM mixing and a very small τ, indicating a relatively clean line of sight. In contrast, PSR B0809+74 shows multiple orthogonal jumps and a distorted swing; the best fit requires strong OPM mixing and a moderate τ, suggesting both significant magnetospheric mode competition and appreciable interstellar scattering.
   In the discussion the authors argue that treating PA irregularities as noise obscures valuable physical information. Their combined RVM‑OPM‑scattering framework provides a unified, physically motivated description that can be applied to any pulsar with high‑quality polarization data. They outline how future broadband, high‑time‑resolution observations (e.g., with the SKA or next‑generation FAST) could refine the model, allowing simultaneous constraints on magnetospheric plasma properties (mode coupling, birefringence) and ISM scattering screens (location, turbulence spectrum).
   The conclusion emphasizes that the classic RVM, while still a useful baseline, must be augmented with orthogonal mode dynamics and propagation effects to fully interpret pulsar polarization. The authors’ simulation‑driven approach offers a practical pathway to extract both intrinsic pulsar physics and interstellar medium characteristics from the same dataset, opening new avenues for precision pulsar astrophysics.
