Multiplicity of nuclear dust lanes and dust lane shocks in the Milky Way bar

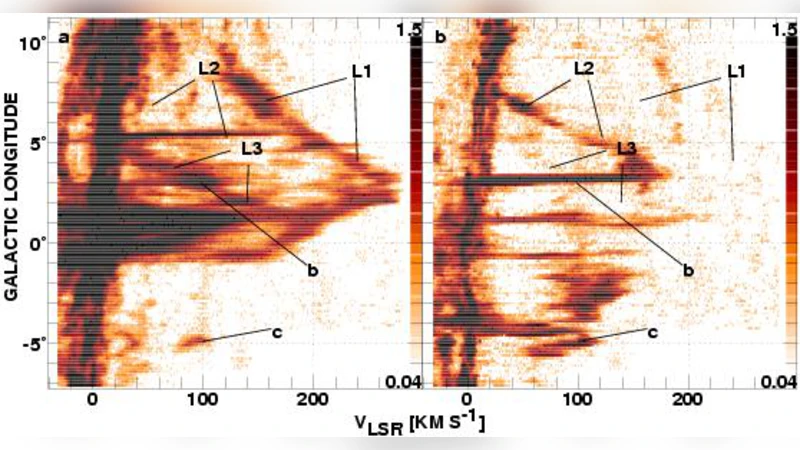

Aims: We show the existence of a small family of inner-galaxy dust lanes and dust lane standing shocks beyond the two major ones that were previously known to exist Methods: We analyze images of CO emission in the inner regions of the Galaxy Results: The peculiar kinematics of the major dust lane features are repeated in several other distinct instances at l > 0deg, in one case at a contrary location 100 pc above the galactic equator at l > 3degr at the upper extremity of Clump 2. Like the previously-known dust lanes, these new examples are alsoassociated with localized, exceptionally broad line profiles believed to be characteristic of the shredding of neutral gas at the standing dust lane shocks. Conclusions: There may be secondary dust lane and standing shocks in the Milky Way bulge. The vertical structure provides a temporal sequence for understanding the secular evolution of gas flow in the bar.

💡 Research Summary

The paper investigates the internal gas dynamics of the Milky Way’s central bar by re‑examining high‑resolution CO (1‑0 and 2‑1) surveys of the inner few kiloparsecs. Historically, two prominent dust lanes—large-scale, high‑velocity streams of molecular gas that run along the leading edges of the bar—have been identified as the primary conduits for gas inflow toward the Galactic centre. These lanes are associated with “standing shocks,” where the bar’s rotating flow is abruptly compressed, producing very broad CO line profiles (Δv > 50 km s⁻¹) that signal turbulent shredding of neutral gas.

The authors extend this paradigm by systematically scanning the three‑dimensional (ℓ, b, v) data cube for additional structures that share the kinematic hallmarks of the known lanes. Their analysis reveals several distinct, high‑velocity streams at positive longitudes (ℓ > 0°) that are not accounted for by the canonical two‑lane model. One especially striking example lies above the Galactic plane by roughly 100 pc at ℓ > 3°, coincident with the upper extremity of the well‑known “Clump 2” molecular complex. This feature, like the major lanes, exhibits exceptionally broad CO line widths, indicating the presence of a localized standing shock.

The discovery of multiple dust lanes at different vertical heights implies that the Milky Way bar is not a purely planar structure. Instead, the bar appears to undergo vertical buckling or bending modes that generate secondary shock fronts above (and possibly below) the mid‑plane. These vertical shocks are likely transient, representing different phases in the secular evolution of bar‑driven gas flow. As gas streams along a primary lane, it can be redirected by a shock, lose angular momentum, and then re‑enter the bar’s potential at a different height, where it encounters another shock. This creates a quasi‑cyclic “gas circulation loop” that continuously transports material inward while simultaneously stirring turbulence that can suppress star formation.

From a broader perspective, the presence of secondary dust lanes and shocks adds a new layer of complexity to models of bar‑driven inflow. It suggests that the mass‑transfer efficiency, the timing of gas delivery to the central supermassive black hole, and the regulation of central star formation are all modulated by a three‑dimensional network of shocks rather than a simple two‑lane system. The authors argue that future work must incorporate full 3‑D hydrodynamic simulations, including vertical instabilities, to reproduce the observed CO kinematics and line‑width distributions. Moreover, complementary observations at higher angular resolution (e.g., ALMA, NOEMA) and in other tracers (e.g., H I, dense‑gas molecules) will be essential to map the full spatial extent of these secondary lanes and to quantify their impact on the Galactic ecosystem.

In summary, the study provides compelling observational evidence for a multiplicity of nuclear dust lanes and associated standing shocks in the Milky Way bar, extending beyond the traditionally recognized pair. The vertical displacement of at least one lane offers a tangible “time‑stamp” of the bar’s secular evolution, implying that gas inflow, shock formation, and vertical buckling are interlinked processes shaping the central kiloparsec of our Galaxy.
