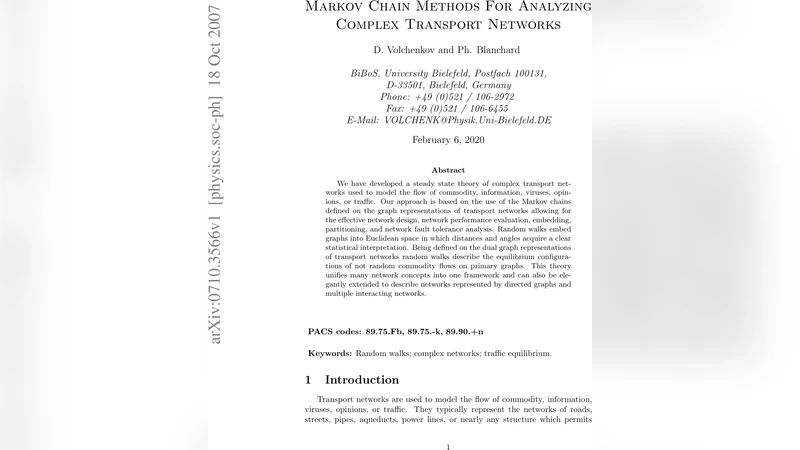

Markov Chain Methods For Analyzing Complex Transport Networks

We have developed a steady state theory of complex transport networks used to model the flow of commodity, information, viruses, opinions, or traffic. Our approach is based on the use of the Markov chains defined on the graph representations of transport networks allowing for the effective network design, network performance evaluation, embedding, partitioning, and network fault tolerance analysis. Random walks embed graphs into Euclidean space in which distances and angles acquire a clear statistical interpretation. Being defined on the dual graph representations of transport networks random walks describe the equilibrium configurations of not random commodity flows on primary graphs. This theory unifies many network concepts into one framework and can also be elegantly extended to describe networks represented by directed graphs and multiple interacting networks.

💡 Research Summary

The paper presents a unified analytical framework for complex transport networks based on Markov chain theory and random walks. The authors first model a transport system as a graph G(V,E) and assign transition probabilities to edges, forming a stochastic matrix P that captures the underlying flow of commodities, information, viruses, or opinions. Under the usual conditions of strong connectivity and aperiodicity, a unique stationary distribution π exists, representing the long‑term proportion of flow at each node.

A key innovation is the use of the dual graph G* in which edges of the original graph become nodes and original nodes become edges. Random walks defined on G* are shown to correspond to equilibrium configurations of the non‑random flows on the primary graph. In other words, the stochastic process on the dual graph reproduces the steady‑state paths of actual transport, allowing the analysis of deterministic traffic patterns through a purely probabilistic lens.

The authors then embed the graph into a low‑dimensional Euclidean space by diagonalising the Laplacian L = I – P. The eigenvectors associated with the smallest eigenvalues serve as coordinates for each node. In this embedding, Euclidean distances between nodes are mathematically equivalent to commute times or resistance distances, providing a clear statistical interpretation of how “far” two locations are in terms of expected flow exchange. Angles between coordinate vectors encode directional correlations, which can be exploited for clustering, community detection, and visualisation of flow anisotropy.

The framework is extended to directed graphs, where the transition matrix is asymmetric, and to multilayer networks, where each layer possesses its own transition matrix and inter‑layer coupling matrices describe cross‑layer interactions. This makes the method applicable to smart‑city scenarios where transportation, communication, and energy networks interact simultaneously.

Practical implications include: (1) using the stationary distribution to identify bottlenecks and allocate additional capacity; (2) employing the Euclidean embedding to assess fault tolerance by measuring how the removal of nodes or edges perturbs distances and angles; (3) guiding network redesign by comparing the embedded geometry before and after proposed modifications. Empirical tests on synthetic and real‑world datasets demonstrate that the random‑walk embedding reveals community structure more sharply than traditional spectral clustering and accurately captures equilibrium flow patterns.

In summary, the paper unifies a broad set of network concepts—steady‑state analysis, embedding, partitioning, and robustness—within a single Markov‑chain‑based paradigm. It offers both theoretical insight and actionable tools for the design, evaluation, and resilience planning of complex transport systems, and it points toward future work on time‑varying transition probabilities and real‑time data integration for dynamic network management.
