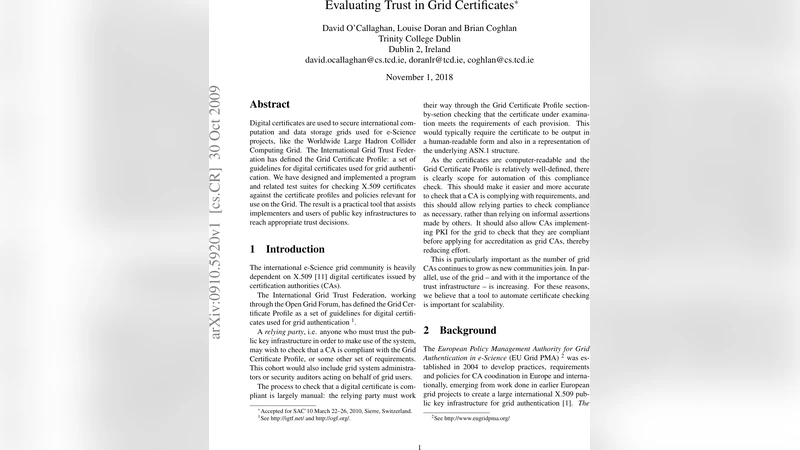

Evaluating Trust in Grid Certificates

Digital certificates are used to secure international computation and data storage grids used for e-Science projects, like the Worldwide Large Hadron Collider Computing Grid. The International Grid Trust Federation has defined the Grid Certificate Profile: a set of guidelines for digital certificates used for grid authentication. We have designed and implemented a program and related test suites for checking X.509 certificates against the certificate profiles and policies relevant for use on the Grid. The result is a practical tool that assists implementers and users of public key infrastructures to reach appropriate trust decisions.

💡 Research Summary

The paper addresses a critical gap in the security infrastructure of large‑scale e‑Science grids, such as the Worldwide LHC Computing Grid, where X.509 certificates are the primary mechanism for authentication. While the International Grid Trust Federation (IGTF) has defined the Grid Certificate Profile to standardize certificate contents, key lengths, hash algorithms, extensions, and revocation handling, there has been no comprehensive, automated way to verify that deployed certificates actually conform to these specifications. To fill this void, the authors designed and implemented a fully automated validation tool together with an extensive test suite.

The design begins with a systematic translation of the Grid Certificate Profile into a machine‑readable rule set. Each rule corresponds to a concrete check on certificate fields (version, serial number format, issuer and subject distinguished names), cryptographic parameters (minimum RSA key size, prohibited use of SHA‑1), required extensions (Subject Alternative Name, Key Usage, Extended Key Usage), and revocation mechanisms (CRL distribution point format, OCSP responder availability). The implementation is written in Python and leverages the OpenSSL library for low‑level ASN.1 parsing. Two complementary validation layers are provided:

1. Static validation – extracts all certificate attributes and compares them against the rule set, flagging any deviation such as missing extensions or insufficient key length.
2. Dynamic validation – builds the certification path up to a trusted root, retrieves the referenced CRL or OCSP response over the network, and verifies that revocation information is correctly signed and up‑to‑date.

A plugin architecture allows new policies or regional variations to be added without modifying the core engine. The tool offers a command‑line interface that can process a single certificate or an entire directory, and it produces human‑readable reports as well as JSON output suitable for integration into continuous integration pipelines.

The authors evaluated the system on several hundred real certificates issued for the LHC‑WLCG. The results demonstrated that the tool reliably detected a range of non‑compliances: RSA keys shorter than 2048 bits, use of deprecated SHA‑1 signatures, omission of mandatory extensions, malformed CRL URLs, and incomplete certification chains caused by missing intermediate certificates. In several cases, certificates that appeared valid to human reviewers were found to be untrustworthy because the dynamic checks revealed unreachable or incorrectly signed revocation data.

Beyond detection, the framework supports proactive trust management. By embedding the JSON reports into automated workflows, grid operators can enforce policy compliance before certificates are accepted into production, thereby reducing manual audit effort and the risk of security incidents caused by mis‑issued certificates. The authors also discuss future extensions, such as real‑time monitoring of certificate status changes, automatic renewal triggers, and tighter integration with grid middleware authentication modules.

In conclusion, the paper presents a practical, extensible solution for evaluating trust in grid certificates. It bridges the gap between high‑level policy definitions and low‑level operational verification, offering a scalable approach that can be adopted by any organization operating a grid PKI. The work not only improves the reliability of authentication in current scientific collaborations but also lays a foundation for more automated, resilient security practices in future distributed computing environments.
