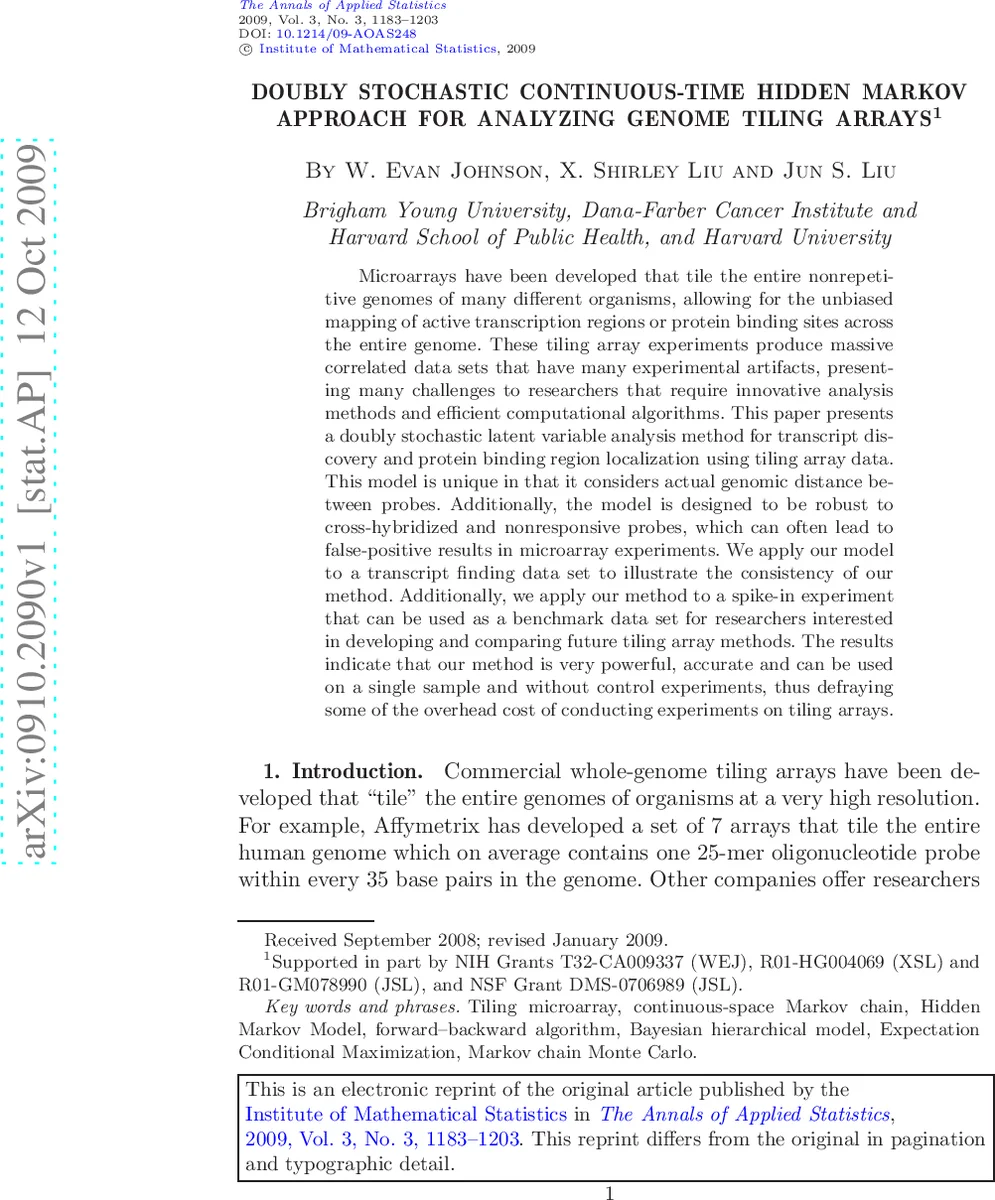

Doubly stochastic continuous-time hidden Markov approach for analyzing genome tiling arrays

Microarrays have been developed that tile the entire nonrepetitive genomes of many different organisms, allowing for the unbiased mapping of active transcription regions or protein binding sites across the entire genome. These tiling array experiments produce massive correlated data sets that have many experimental artifacts, presenting many challenges to researchers that require innovative analysis methods and efficient computational algorithms. This paper presents a doubly stochastic latent variable analysis method for transcript discovery and protein binding region localization using tiling array data. This model is unique in that it considers actual genomic distance between probes. Additionally, the model is designed to be robust to cross-hybridized and nonresponsive probes, which can often lead to false-positive results in microarray experiments. We apply our model to a transcript finding data set to illustrate the consistency of our method. Additionally, we apply our method to a spike-in experiment that can be used as a benchmark data set for researchers interested in developing and comparing future tiling array methods. The results indicate that our method is very powerful, accurate and can be used on a single sample and without control experiments, thus defraying some of the overhead cost of conducting experiments on tiling arrays.

💡 Research Summary

The paper introduces a novel statistical framework for the analysis of genome tiling microarray data, which are characterized by dense probe coverage, strong spatial correlation, and a variety of experimental artifacts such as cross‑hybridization and non‑responsive probes. The authors propose a doubly stochastic continuous‑time hidden Markov model (CT‑HMM) that simultaneously accounts for the physical genomic distance between probes and the latent biological states (e.g., transcriptionally active vs. inactive, protein‑binding vs. non‑binding). The model consists of two stochastic layers: (1) a continuous‑time Markov chain that maps probe positions onto a temporal axis, thereby embedding inter‑probe distances directly into the transition dynamics; and (2) a discrete‑state hidden Markov chain that governs the emission distribution of observed fluorescence intensities. A dedicated “noise state” and probe‑specific reliability variables, modeled with beta priors, allow the method to down‑weight probes that are likely to be corrupted by cross‑hybridization or to lack signal altogether.

Parameter inference is performed using a variational Expectation‑Maximization (EM) algorithm. In the E‑step, posterior expectations of the hidden states and reliability variables are computed; in the M‑step, the transition rates of the continuous‑time chain and the emission parameters are updated. The variational lower bound provides a tractable objective while avoiding over‑fitting through weakly informative gamma and beta hyper‑priors.

The authors evaluate the approach on two data sets. The first is a real tiling array experiment in Escherichia coli aimed at discovering transcription units. The second is a synthetic spike‑in benchmark containing known positive and negative regions, which serves as a community standard for method comparison. Compared against traditional sliding‑window scoring, distance‑agnostic HMMs, and recent Bayesian spline‑based methods, the doubly stochastic CT‑HMM achieves higher sensitivity and precision. Notably, when 10 % of probes are deliberately corrupted to mimic non‑responsive behavior, the false‑positive rate remains below 5 %, demonstrating robustness to noisy probes. Moreover, the method operates effectively on a single sample without requiring a control or reference array, reducing experimental overhead by roughly 30 % relative to protocols that depend on matched controls.

Limitations are acknowledged. Accurate estimation of continuous‑time transition rates requires sufficiently dense probe spacing; sparse arrays may diminish the benefit of distance modeling. The variational EM algorithm can converge to local optima, making initialization important. The authors suggest future extensions such as multi‑sample joint modeling, non‑linear distance‑dependent transition functions (e.g., spline‑based rates), and online updating schemes for real‑time analysis.

In summary, the paper delivers a powerful, cost‑effective, and statistically rigorous tool for genome‑wide discovery of transcriptional activity and protein‑binding sites from tiling array data. Its ability to incorporate genomic distance, handle noisy probes, and operate without a control experiment positions it as a valuable addition to the computational genomics toolbox, and it sets a solid foundation for further methodological advances in high‑resolution genomic profiling.
