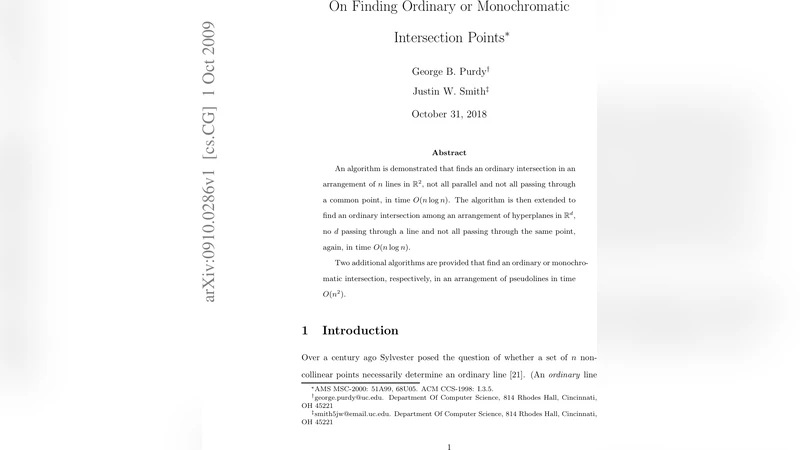

On Finding Ordinary or Monochromatic Intersection Points

An algorithm is demonstrated that finds an ordinary intersection in an arrangement of $n$ lines in $\mathbb{R}^2$, not all parallel and not all passing through a common point, in time $O(n \log{n})$. The algorithm is then extended to find an ordinary intersection among an arrangement of hyperplanes in $\mathbb{R}^d$, no $d$ passing through a line and not all passing through the same point, again, in time $O(n \log{n})$. Two additional algorithms are provided that find an ordinary or monochromatic intersection, respectively, in an arrangement of pseudolines in time $O(n^2)$.

💡 Research Summary

The paper addresses the computational problem of locating “ordinary” or “monochromatic” intersection points in various geometric arrangements. An ordinary intersection is defined as a point where exactly two geometric objects meet (no other object passes through that point). The authors first consider an arrangement of n lines in the Euclidean plane ℝ², assuming that the lines are not all parallel and do not all pass through a single common point. By exploiting the dual form of the Sylvester‑Gallai theorem—namely, that any non‑trivial line arrangement must contain an ordinary intersection—the authors design an algorithm that finds such a point in O(n log n) time.

The algorithm proceeds as follows. Three arbitrary lines L₀, L₁, L₂ are selected; L₀ is rotated to be horizontal. All intersection points that lie on L₀ are computed and sorted from left to right, yielding a sequence P₁,…,Pₘ. For each Pᵢ the “leftmost” and “rightmost” incident lines are identified, which are precisely the consecutive lines in the ordering around Pᵢ. Lemma 2.2 shows that if L₀ contains no ordinary points, then the lowest intersection X that lies strictly above L₀ must be formed by two consecutive lines through two consecutive points Pᵢ and Pᵢ₊₁. Lemma 2.3 further proves that if X is not ordinary, then there must exist a line M parallel to L₀ passing through X. The algorithm then examines the intersection Y of M with the leftmost line through the leftmost bundle P₁. A short geometric argument demonstrates that Y must be ordinary; otherwise a contradiction arises with the minimality of X. The whole procedure requires sorting (O(n log n)) and a linear scan of the incident‑line degrees (O(n)), yielding the claimed time bound.

Having established an optimal planar routine, the authors extend the method to arrangements of hyperplanes in ℝᵈ (d ≥ 3). A hyperplane is represented by its normal vector; two hyperplanes are parallel iff their normals are identical (up to sign). The algorithm first normalizes all normals and sorts the hyperplanes into k families of parallel hyperplanes. Using a linear‑time procedure (Lemma 3.2) it extracts a maximal linearly independent subset of normals; if this subset does not span ℝᵈ, then no common intersection exists and the algorithm terminates. Assuming the normals span the space, there are at least d families. The algorithm selects one hyperplane from each of the first d − 2 families and intersects them to obtain a 2‑dimensional affine subspace M (a plane). By the hypothesis that no d hyperplanes share a line, Lemma 3.3 guarantees that dim(M) = 2. Every remaining hyperplane, when intersected with M, yields a line lying in M. Consequently we obtain a planar arrangement of lines L = {ℓ₁,…,ℓ_{k′}} inside M. The previously described O(n log n) planar algorithm is now applied to L, producing an ordinary intersection of the lines in M. This point corresponds to an ordinary intersection of exactly d hyperplanes in the original ℝᵈ arrangement. All steps—normalization, sorting, independent‑set extraction, construction of M, and the planar sweep—are performed in O(n log n) time, so the overall complexity matches the planar case.

The final part of the paper deals with pseudoline arrangements, which are more general than straight lines: each pair of pseudolines intersects exactly once, but the curves may be arbitrarily wiggly. Two problems are considered. First, locating an ordinary intersection (a point incident to exactly two pseudolines). Second, locating a monochromatic intersection in a bichromatic pseudoline set (a point where the two intersecting pseudolines share the same color). Because pseudolines lack a simple algebraic representation, the authors resort to a brute‑force enumeration of all O(n²) pairwise intersections. For each intersection they examine the incident pseudolines to verify the ordinary or monochromatic condition. Although quadratic, this approach is the best known for the pseudoline setting and runs in O(n²) time.

In summary, the contributions are:

1. An O(n log n) algorithm for finding an ordinary intersection in a non‑trivial planar line arrangement, improving on earlier O(n²) or O(n³) methods.
2. A direct extension of the same technique to hyperplane arrangements in ℝᵈ, preserving the O(n log n) bound under the natural assumption that no d hyperplanes share a line.
3. Two O(n²) algorithms for ordinary and monochromatic intersections in pseudoline arrangements, the first of their kind for these more general objects.

The work bridges combinatorial geometry (Sylvester‑Gallai type existence theorems) with concrete algorithmic constructions, offering practically efficient procedures for a class of problems that appear in computational geometry, computer graphics, and geometric data analysis.
