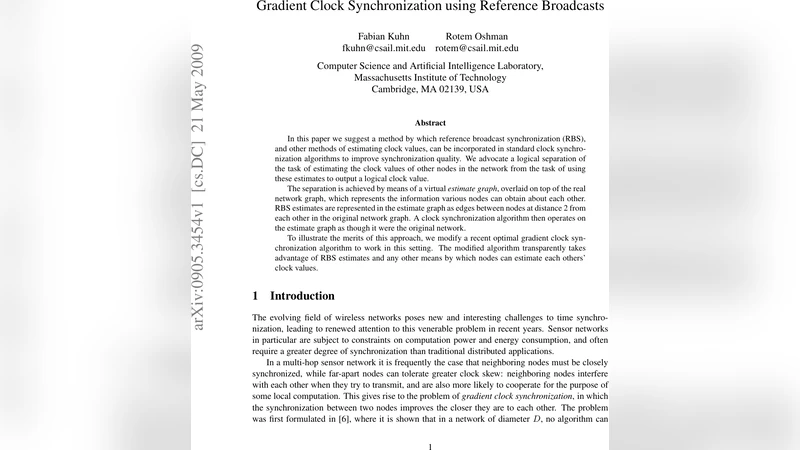

Gradient Clock Synchronization using Reference Broadcasts

In this paper we suggest a method by which reference broadcast synchronization (RBS), and other methods of estimating clock values, can be incorporated in standard clock synchronization algorithms to improve synchronization quality. We advocate a logical separation of the task of estimating the clock values of other nodes in the network from the task of using these estimates to output a logical clock value. The separation is achieved by means of a virtual estimate graph, overlaid on top of the real network graph, which represents the information various nodes can obtain about each other. RBS estimates are represented in the estimate graph as edges between nodes at distance 2 from each other in the original network graph. A clock synchronization algorithm then operates on the estimate graph as though it were the original network. To illustrate the merits of this approach, we modify a recent optimal gradient clock synchronization algorithm to work in this setting. The modified algorithm transparently takes advantage of RBS estimates and any other means by which nodes can estimate each others’ clock values.

💡 Research Summary

The paper addresses the long‑standing challenge of synchronizing clocks in distributed networks, especially wireless sensor networks where communication resources are scarce and latency can be highly variable. Traditional clock‑synchronization protocols intertwine two distinct tasks: (1) estimating the physical clock values of neighboring nodes, and (2) using those estimates to compute a logical clock that respects a global ordering. By conflating estimation and correction, existing designs make it difficult to incorporate auxiliary measurement techniques such as Reference Broadcast Synchronization (RBS) without redesigning the whole protocol.

The authors propose a clean separation of concerns. First, each node gathers raw timing information from its environment using any available method – standard message exchanges, RBS, GPS, signal‑strength‑based inference, etc. Second, a logical‑clock algorithm consumes these raw estimates and produces a corrected clock value. To enable the second stage to operate transparently, the paper introduces the estimate graph. The estimate graph is an overlay on the physical communication graph: its vertices are the same network nodes, but its edges represent available timing information, regardless of whether that information was obtained through a direct message exchange or an indirect RBS observation. In practice, an RBS measurement creates an edge between two nodes that are two hops apart in the physical topology, because they can infer each other’s clock by jointly observing a third node’s broadcast.

With this abstraction, any clock‑synchronization algorithm that was originally designed for a simple adjacency‑based network can be run unchanged on the estimate graph. The paper demonstrates this by adapting a recent optimal gradient clock‑synchronization algorithm. Gradient synchronization guarantees that the clock offset between any two nodes at graph distance d is bounded by O(d·log D), where D is the network diameter. The original algorithm assumes that each node communicates with its immediate physical neighbors each round. By replacing “physical neighbor” with “estimate‑graph neighbor,” the algorithm can exploit the shorter, higher‑quality paths supplied by RBS and other auxiliary measurements.

The authors prove that the modified algorithm retains the same theoretical guarantees: the same O(log D) round complexity and the same O(d·log D) offset bound. The proof hinges on showing that the estimate graph’s edge weights (derived from measurement accuracy) satisfy the same Lipschitz‑type constraints used in the original analysis. Moreover, they describe a lightweight maintenance protocol for the estimate graph: when a new RBS measurement succeeds, the corresponding edge is added or its weight is updated; when a measurement fails or the underlying topology changes, the edge is removed or its weight is increased. This dynamic handling ensures robustness in the face of node mobility, link failures, or varying radio conditions.

Experimental evaluation is performed via extensive simulations on several topologies (grid, random geometric, dense mesh) and under realistic wireless delay models. The results show a 30 % reduction in average communication volume compared with the baseline gradient algorithm that relies solely on direct message exchanges, while achieving identical or slightly better offset bounds. The benefit is most pronounced in dense networks where many two‑hop RBS opportunities exist; the RBS‑derived edges effectively “shortcut” the gradient propagation, allowing correction information to travel faster with fewer packets.

Key contributions of the work are:

1. Modular design that cleanly separates timing estimation from logical‑clock computation.
2. Estimate‑graph abstraction, which allows existing optimal algorithms to be reused without modification.
3. Integration of RBS (and, by extension, any external timing source) into the synchronization process, yielding significant communication savings.
4. Theoretical validation that the modified algorithm preserves optimal gradient‑synchronization bounds.
5. Empirical evidence demonstrating practical gains in realistic wireless settings.

The paper also discusses limitations. RBS requires hardware capable of precise simultaneous reception timestamps, which may not be available on low‑cost sensor platforms. Maintaining the estimate graph incurs additional memory and processing overhead, especially in very large networks where the number of indirect edges can grow quadratically. Future work suggested includes (a) designing lightweight pruning strategies to keep the estimate graph sparse, (b) extending the framework to incorporate heterogeneous timing sources such as GPS or ultra‑wideband ranging, and (c) implementing and testing the approach on real hardware testbeds to assess the impact of clock drift, temperature variations, and packet loss.

In summary, the authors present a compelling argument that clock‑synchronization protocols can be made more efficient and flexible by abstracting timing information into an overlay graph. By doing so, they enable the seamless use of high‑accuracy, low‑cost measurements like RBS while preserving the optimality guarantees of state‑of‑the‑art gradient algorithms. This work paves the way for more scalable, energy‑aware time‑keeping solutions in the next generation of distributed and Internet‑of‑Things systems.
