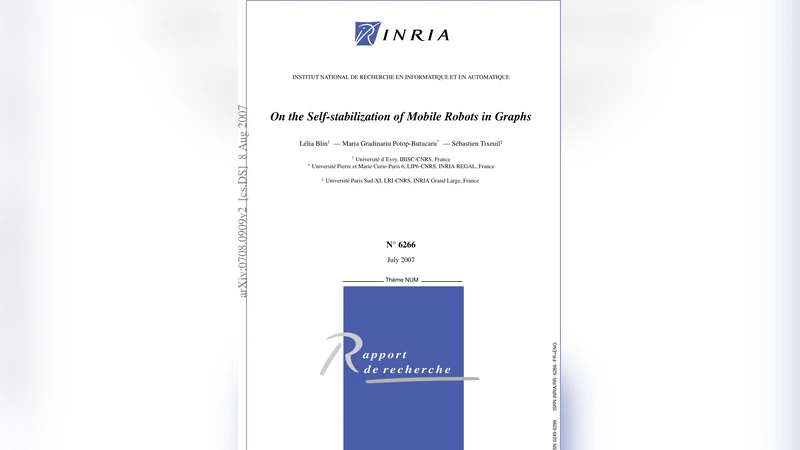

On the Self-stabilization of Mobile Robots in Graphs

Self-stabilization is a versatile technique to withstand any transient fault in a distributed system. Mobile robots (or agents) are one of the emerging trends in distributed computing as they mimic autonomous biologic entities. The contribution of this paper is threefold. First, we present a new model for studying mobile entities in networks subject to transient faults. Our model differs from the classical robot model because robots have constraints about the paths they are allowed to follow, and from the classical agent model because the number of agents remains fixed throughout the execution of the protocol. Second, in this model, we study the possibility of designing self-stabilizing algorithms when those algorithms are run by mobile robots (or agents) evolving on a graph. We concentrate on the core building blocks of robot and agents problems: naming and leader election. Not surprisingly, when no constraints are given on the network graph topology and local execution model, both problems are impossible to solve. Finally, using minimal hypothesis with respect to impossibility results, we provide deterministic and probabilistic solutions to both problems, and show equivalence of these problems by an algorithmic reduction mechanism.

💡 Research Summary

The paper introduces a novel framework for studying mobile entities—robots or agents—operating on a graph under transient faults. Unlike classical robot models that assume unrestricted movement, the authors impose path constraints: each robot may traverse only a predefined subset of edges, reflecting real‑world restrictions such as road regulations, energy limits, or security policies. In contrast to traditional agent models, the number of robots is fixed throughout the execution, eliminating creation or deletion events. This hybrid model captures the essence of autonomous vehicles, drones, or warehouse bots that must obey strict navigation rules while remaining a constant fleet.

The central research question is whether self‑stabilizing solutions exist for two fundamental distributed tasks—naming (assigning unique identifiers) and leader election—when robots are subject to arbitrary transient faults that may corrupt all local memory at any moment. The authors first prove a strong impossibility result: if no assumptions are made about the underlying graph topology or the execution model (synchrony, fairness, etc.), both naming and leader election are unsolvable. The proof relies on symmetry arguments: starting from a completely symmetric configuration (all robots indistinguishable, identical memory), any deterministic or probabilistic schedule preserves this symmetry, so the system can never converge to a state where identifiers are distinct or a unique leader exists. This mirrors classic impossibility theorems in self‑stabilization but extends them to the constrained‑movement setting.

To escape this deadlock, the paper identifies a minimal set of hypotheses that break symmetry while preserving the model’s realism:

1. Graph connectivity with at least one non‑trivial structural feature (e.g., a bridge, a cut‑vertex, or the absence of perfect cycles). This provides a “distinguishing point” that can be used as a reference for breaking symmetry.
2. Fair scheduling: every robot is activated infinitely often, guaranteeing progress.
3. Optional weak synchrony (a common round counter) for the deterministic solution; the probabilistic solution works under fully asynchronous conditions.

Under these modest constraints, the authors present two families of algorithms.

Deterministic Solution

The algorithm proceeds in three phases:

1. Spanning‑tree construction – each robot locally exchanges neighbor information and, respecting its path constraints, builds a spanning tree (or BFS tree) rooted at a distinguished vertex (e.g., the endpoint of a bridge).
2. Root identifier assignment – the root receives a fixed identifier (0).
3. Depth‑first or level‑order numbering – the root propagates identifiers down the tree; each child appends a locally unique suffix, guaranteeing that every robot ends up with a distinct ID.

Because the tree respects the allowed edges, robots never attempt illegal moves. The protocol finishes in O(n) rounds (n = number of vertices) and requires only O(Δ) local memory (Δ = maximum degree). Once unique IDs exist, the robot with the smallest ID is declared the leader, solving both naming and leader election simultaneously.

Probabilistic Solution

The second protocol is designed for asynchronous, highly dynamic environments:

• Each robot performs a random walk constrained to its admissible edges.
• When two robots meet at the same vertex, they engage in a collision‑resolution sub‑protocol: one robot (chosen uniformly at random) retains its current identifier, while the other draws a new identifier from a large space.
• Repeating this process, the system behaves like a Markov chain where the number of identifier collisions strictly decreases in expectation.

Standard coupon‑collector analysis shows that after Θ(n log n) expected steps, all identifiers become unique with high probability. The robot holding the smallest identifier is then the leader. This algorithm needs only constant local memory (current ID and a temporary ID during collisions) and does not rely on any global clock or synchrony.

Reduction Between Naming and Leader Election

A key theoretical contribution is an algorithmic reduction showing that the two problems are computationally equivalent in this model.

• From naming to leader election: Once a unique identifier set is established, the robot with the minimum identifier can be selected as the leader using a simple comparison.
• From leader election to naming: If a leader can be elected (e.g., via a separate election protocol), the leader can act as the root of a spanning tree and assign sequential numbers to all other robots, thereby achieving naming.

Thus, any self‑stabilizing solution for one problem immediately yields a solution for the other, and the lower bounds and impossibility conditions apply identically.

Evaluation and Discussion

The paper provides rigorous correctness proofs for both algorithms, analyzes their time and space complexities, and discusses robustness against various fault patterns (e.g., simultaneous multiple memory corruptions). The deterministic protocol offers fast convergence but requires a weak synchrony assumption; the probabilistic protocol sacrifices speed for greater flexibility and minimal memory usage.

The authors conclude by outlining future research directions: extending the model to dynamic path constraints (edges that appear/disappear), incorporating energy or bandwidth limits, exploring multi‑leader or clustering extensions, and performing experimental validation on real robot swarms or simulated networks.

Overall, the work bridges a gap between theoretical self‑stabilization and practical mobile‑robot systems, demonstrating that with only modest structural assumptions, robust naming and leader election are achievable even when robots are confined to predetermined routes and must recover from arbitrary transient disturbances.
