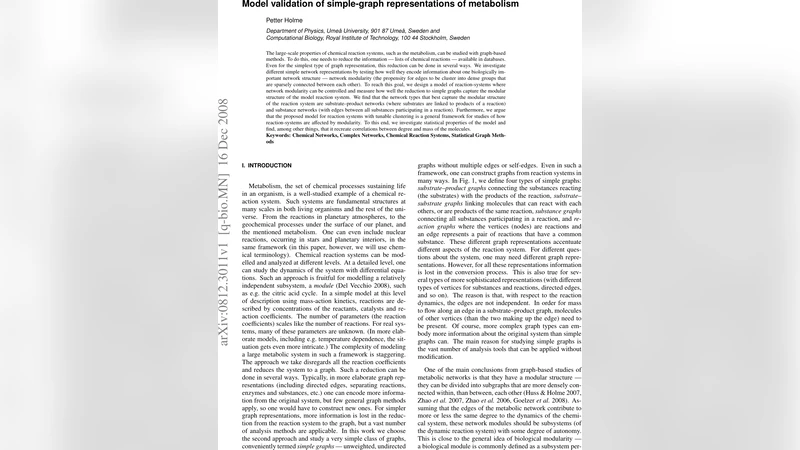

Model validation of simple-graph representations of metabolism

The large-scale properties of chemical reaction systems, such as the metabolism, can be studied with graph-based methods. To do this, one needs to reduce the information – lists of chemical reactions – available in databases. Even for the simplest type of graph representation, this reduction can be done in several ways. We investigate different simple network representations by testing how well they encode information about one biologically important network structure – network modularity (the propensity for edges to be cluster into dense groups that are sparsely connected between each other). To reach this goal, we design a model of reaction-systems where network modularity can be controlled and measure how well the reduction to simple graphs capture the modular structure of the model reaction system. We find that the network types that best capture the modular structure of the reaction system are substrate-product networks (where substrates are linked to products of a reaction) and substance networks (with edges between all substances participating in a reaction). Furthermore, we argue that the proposed model for reaction systems with tunable clustering is a general framework for studies of how reaction-systems are affected by modularity. To this end, we investigate statistical properties of the model and find, among other things, that it recreate correlations between degree and mass of the molecules.

💡 Research Summary

The paper addresses a fundamental methodological question in systems biology: how to reduce detailed chemical reaction data, as stored in metabolic databases, to simple graph representations without losing biologically relevant structural information. The authors focus on one such piece of information—network modularity, the tendency of edges to cluster into densely connected groups that are sparsely linked to each other—and ask which of several possible simple‑graph encodings best preserves this property.

Four elementary graph constructions are examined. (1) Substrate‑product networks connect each substrate directly to each product of a reaction, ignoring stoichiometry and directionality. (2) Substance networks create a complete subgraph among all molecules that participate in the same reaction, thereby linking every pair of co‑reactants and co‑products. (3) Reaction‑reaction networks place an edge between two reactions whenever they share at least one molecule. (4) Bipartite graphs treat reactions and molecules as two disjoint node sets and connect a molecule to each reaction in which it appears. All four are undirected simple graphs, which makes them amenable to standard community‑detection algorithms.

To evaluate the fidelity of each representation, the authors devise a generative model of reaction systems in which modularity can be tuned explicitly. The model specifies a fixed number of molecules (N) and reactions (M) and partitions them into K modules. Within a module, reactions are more likely to involve molecules from the same module (probability p_in); between modules, the probability of sharing molecules is lower (p_out). By adjusting the ratio p_in/p_out the expected modularity Q_target can be set to any desired value. Because the ground‑truth modular structure is known, the authors can compare the modularity Q_meas obtained after graph conversion with Q_target.

Simulation results show that substrate‑product and substance networks reproduce the target modularity far more accurately than reaction‑reaction or bipartite graphs. In substance networks, the complete linkage of co‑participating molecules creates high internal edge density, which makes community‑detection algorithms (e.g., the Newman‑Girvan modularity maximization) identify modules that closely match the planted ones. Substrate‑product networks perform almost as well, despite the loss of some co‑reactant information, because each reaction still contributes a set of edges that cross module boundaries in proportion to p_out. By contrast, reaction‑reaction graphs suffer from sparse connectivity when shared molecules are rare, leading to weakly defined communities. Bipartite graphs, while preserving the full reaction‑molecule incidence matrix, spread the information over two node types, which dilutes the modular signal in the projected unipartite view used for modularity calculation.

Beyond modularity, the authors analyze additional statistical properties of the synthetic networks. They find a positive correlation between molecular mass (assigned randomly but with realistic size distribution) and node degree, mirroring empirical observations that larger metabolites tend to participate in more reactions. This emergent property demonstrates that the model captures not only the intended modular structure but also realistic topological constraints of metabolic systems.

The discussion emphasizes practical implications. For researchers who need a compact graph representation of metabolism for community detection, pathway analysis, or network‑based machine learning, the substance network (or, alternatively, the substrate‑product network) is recommended because it maximally retains modular information while remaining computationally simple. The reaction‑reaction and bipartite representations may still be useful when the research focus is on reaction‑level interactions or when preserving the full bipartite incidence is essential for downstream stoichiometric analyses.

Finally, the paper positions the tunable reaction‑system model itself as a valuable testbed for methodological development. By providing a controllable ground truth, it enables systematic benchmarking of graph‑based algorithms, null‑model generation, and hypothesis testing about how modularity influences dynamical properties such as flux distribution or robustness. In summary, the study delivers both a clear recommendation on graph construction for metabolic modularity studies and a versatile synthetic framework for future investigations into the structural and functional organization of biochemical reaction networks.
