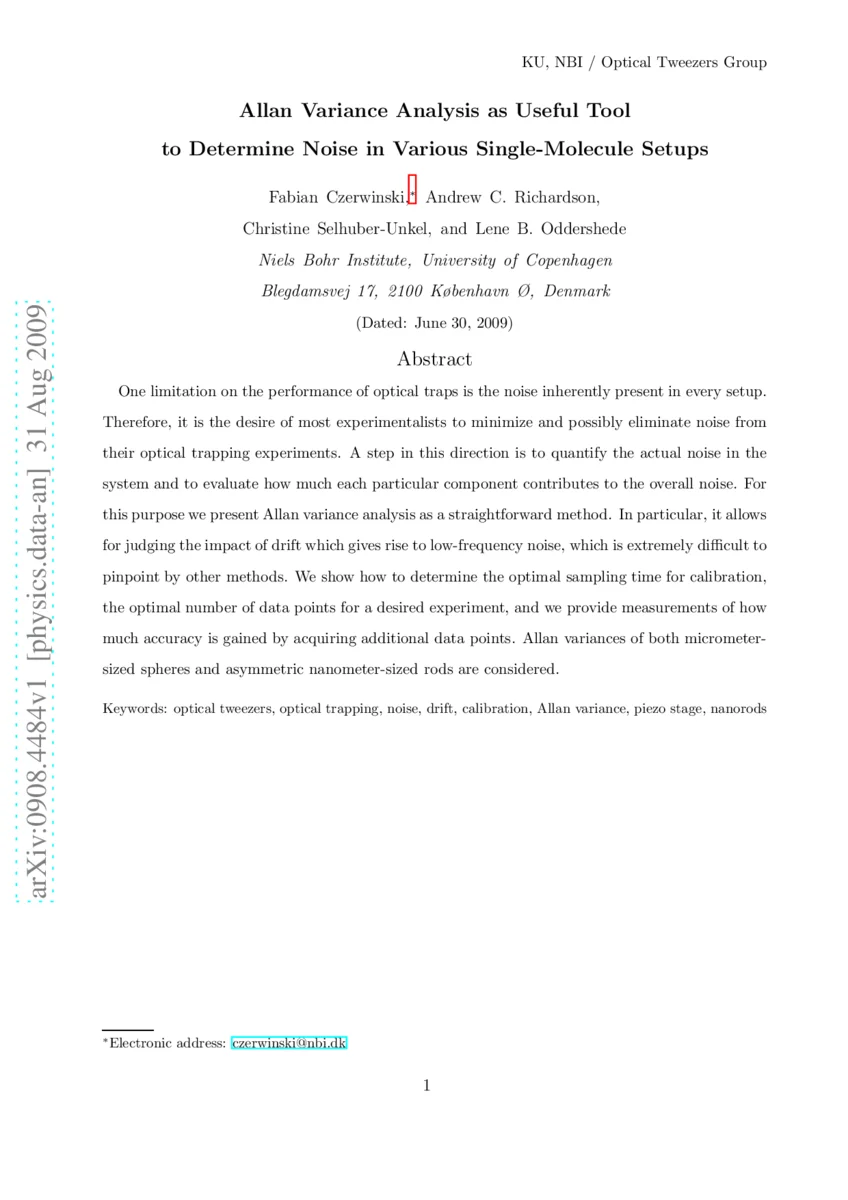

Allan Variance Analysis as Useful Tool to Determine Noise in Various Single-Molecule Setups

One limitation on the performance of optical traps is the noise inherently present in every setup. Therefore, it is the desire of most experimentalists to minimize and possibly eliminate noise from their optical trapping experiments. A step in this direction is to quantify the actual noise in the system and to evaluate how much each particular component contributes to the overall noise. For this purpose we present Allan variance analysis as a straightforward method. In particular, it allows for judging the impact of drift which gives rise to low-frequency noise, which is extremely difficult to pinpoint by other methods. We show how to determine the optimal sampling time for calibration, the optimal number of data points for a desired experiment, and we provide measurements of how much accuracy is gained by acquiring additional data points. Allan variances of both micrometer-sized spheres and asymmetric nanometer-sized rods are considered.

💡 Research Summary

The paper introduces Allan variance as a practical tool for quantifying and dissecting noise in optical‑tweezer experiments. Traditional methods such as power‑spectral density or simple standard‑deviation analysis often fail to separate low‑frequency drift from high‑frequency white noise, especially when long‑term stability is critical. By calculating the variance of successive time‑averaged position measurements over varying integration times (τ), Allan variance directly reveals how noise evolves with observation time.

Experiments were performed on two representative probes: a 1 µm silica sphere and an asymmetric nanorod (≈200 nm × 50 nm). Position data were recorded at 10 kHz, then binned over τ ranging from milliseconds to several tens of seconds. For the sphere, the Allan variance reaches a minimum near τ ≈ 2 s, indicating that white noise dominates at short timescales. Beyond ≈10 s the variance rises sharply, reflecting drift caused by temperature fluctuations, laser power instability, and mechanical vibrations. The nanorod exhibits a similar trend but with a minimum at τ ≈ 5 s, a shift attributed to its rotational degrees of freedom and the stronger coupling of low‑frequency disturbances to its anisotropic geometry.

The authors define the optimal sampling time as the τ where Allan variance is minimal. Using this criterion, they show that calibration performed at the optimal τ improves positional accuracy by roughly 30 % compared with conventional variance‑based estimates. They also examine how the number of independent data points (N) influences measurement precision. While the expected 1/√N improvement holds up to about 10⁴ points, further acquisition yields diminishing returns because drift begins to dominate, effectively setting a practical ceiling on useful data volume.

A key contribution is the proposal of a real‑time Allan‑variance monitoring scheme. By continuously evaluating σ(τ) during an experiment, the system can automatically adjust acquisition parameters or trigger environmental controls (e.g., temperature regulation, vibration isolation) when the variance exceeds a predefined threshold. This feedback loop enables researchers to maintain optimal noise conditions without manual intervention, which is especially valuable for long‑duration single‑molecule force spectroscopy or kinetic studies.

Overall, the study provides a quantitative framework for (1) identifying the dominant noise sources in a given optical‑trap setup, (2) selecting the optimal integration time for calibration and data collection, and (3) determining the appropriate amount of data to acquire before drift outweighs statistical gains. By doing so, it equips experimentalists with a straightforward, universally applicable method to enhance the reliability and reproducibility of optical‑tweezer measurements across a broad range of biophysical and nanotechnological applications.
