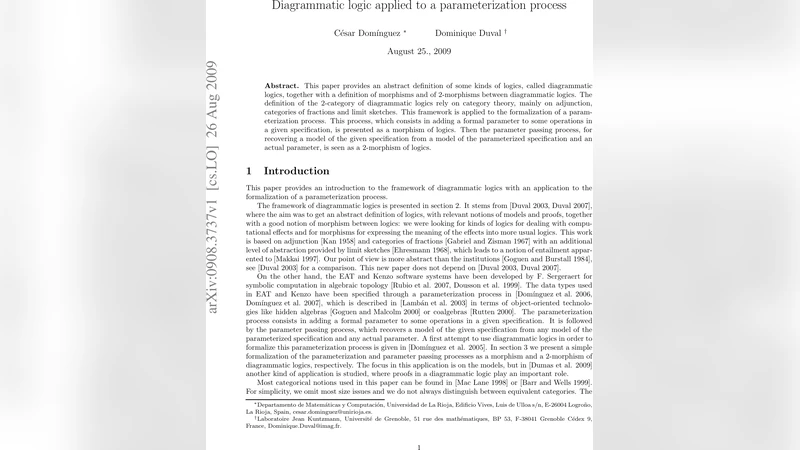

Diagrammatic logic applied to a parameterization process

This paper provides an abstract definition of some kinds of logics, called diagrammatic logics, together with a definition of morphisms and of 2-morphisms between diagrammatic logics. The definition of the 2-category of diagrammatic logics rely on category theory, mainly on adjunction, categories of fractions and limit sketches. This framework is applied to the formalization of a parameterization process. This process, which consists in adding a formal parameter to some operations in a given specification, is presented as a morphism of logics. Then the parameter passing process, for recovering a model of the given specification from a model of the parameterized specification and an actual parameter, is seen as a 2-morphism of logics.

💡 Research Summary

The paper introduces a novel categorical framework called diagrammatic logic and demonstrates how it can be used to formalize the process of parameterizing a specification and subsequently passing concrete parameters to obtain a model of the original specification. The authors begin by defining a diagrammatic logic as a limit sketch—a small category equipped with objects, arrows, and specified limits (products, pull‑backs, etc.). Such a sketch captures the syntax of a logic in a graphical way, and a model of the logic is a realization of the sketch in a target category (typically Set).

A morphism of diagrammatic logics is a functor between the underlying sketches that preserves the specified limits. Crucially, each morphism comes equipped with an adjunction (F \dashv G): the left adjoint (F) maps the source logic into the target, while the right adjoint (G) provides a way to “forget” the added structure. This adjoint pair guarantees that the essential logical structure (e.g., inference rules encoded as limits) is respected during translation.

To capture transformations between such morphisms, the authors introduce 2‑morphisms. Using the notion of categories of fractions, a 2‑morphism (\alpha : F \Rightarrow F’) is represented by a family of fractions that identify, in the target logic, the images of each object and arrow under (F) and (F’). This higher‑dimensional structure makes the collection of diagrammatic logics into a 2‑category, denoted (\mathbf{DiagLog}).

With this machinery in place, the paper tackles the parameterization process. Given a specification (\Sigma) (represented by a diagrammatic logic (L_\Sigma)), a new formal parameter (p) is added, yielding an extended specification (\Sigma(p)) and a corresponding logic (L_{\Sigma(p)}). The addition of (p) is encoded as a morphism (\Phi : L_\Sigma \to L_{\Sigma(p)}) that sends each original operation to a version that takes an extra argument of type (p). The authors prove that (\Phi) participates in an adjunction (\Phi \dashv \Psi), where (\Psi) “drops” the parameter. Consequently, any model of the parameterized specification together with a concrete value (a) for (p) can be turned into a model of the original specification by applying the right adjoint followed by the evaluation at (a).

The parameter passing step is then expressed as a 2‑morphism (\Theta_a : \Phi \Rightarrow \mathrm{id}{L\Sigma}). For each concrete parameter (a), (\Theta_a) provides a natural transformation that, when interpreted in models, substitutes (a) for the formal parameter and collapses the extended model back to an ordinary model of (\Sigma). The naturality of (\Theta_a) guarantees that this substitution respects all logical structure, yielding a canonical isomorphism between the resulting model and the one obtained by directly interpreting (\Sigma) with the same underlying data.

The paper supplies concrete examples, such as parameterizing a monoid operation by a scalar, to illustrate how the abstract definitions work in practice. It also compares the approach with traditional macro‑based or template‑based parameterization, emphasizing that the diagrammatic‑logic framework provides formal guarantees (preservation of limits, adjointness, and naturality) that are absent in ad‑hoc methods.

In the concluding section, the authors discuss potential extensions: handling multiple or dependent parameters, integrating dynamic parameter updates, and applying the same 2‑categorical perspective to other meta‑operations like refactoring or abstraction. By elevating logics themselves to objects of a 2‑category, the work opens a pathway for systematic, mathematically sound manipulation of specifications, bridging a gap between category‑theoretic semantics and practical software engineering concerns.
