Service-oriented high level architecture

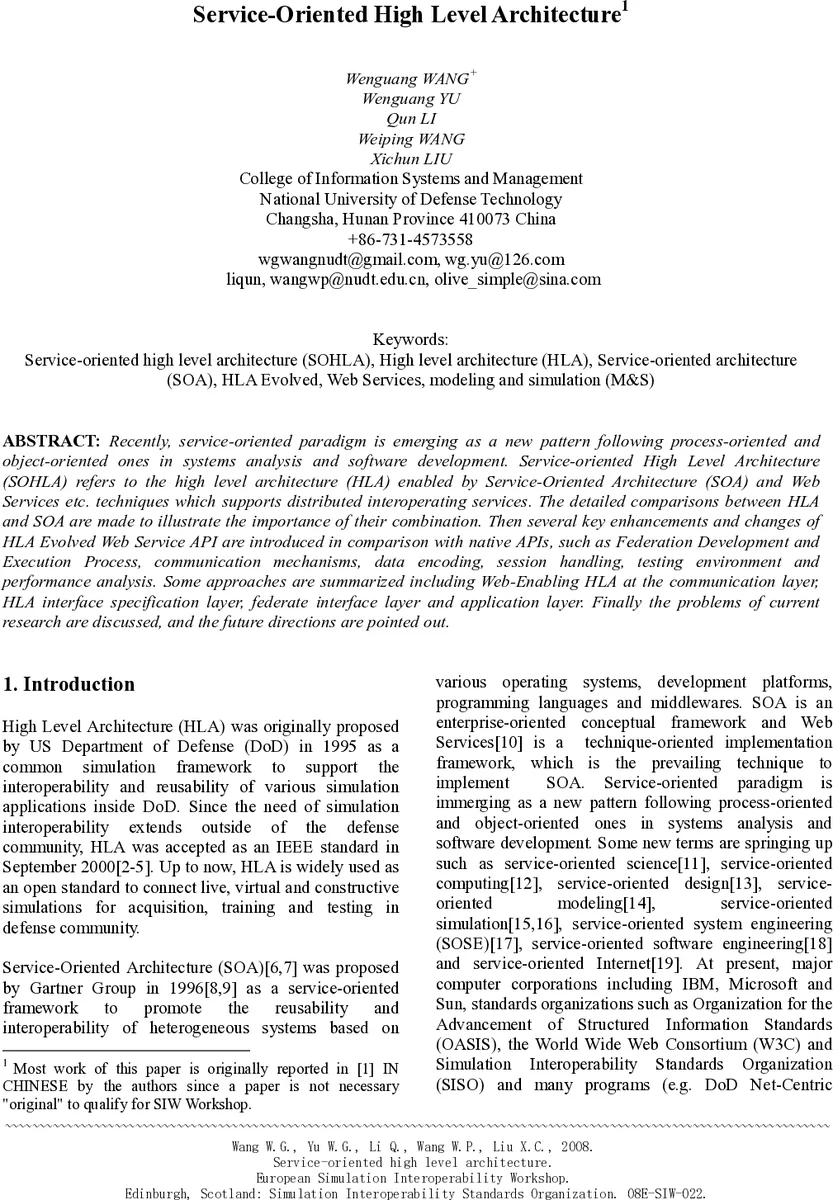

Service-oriented High Level Architecture (SOHLA) refers to the high level architecture (HLA) enabled by Service-Oriented Architecture (SOA) and Web Services etc. techniques which supports distributed interoperating services. The detailed comparisons between HLA and SOA are made to illustrate the importance of their combination. Then several key enhancements and changes of HLA Evolved Web Service API are introduced in comparison with native APIs, such as Federation Development and Execution Process, communication mechanisms, data encoding, session handling, testing environment and performance analysis. Some approaches are summarized including Web-Enabling HLA at the communication layer, HLA interface specification layer, federate interface layer and application layer. Finally the problems of current research are discussed, and the future directions are pointed out.

💡 Research Summary

The paper introduces Service‑Oriented High Level Architecture (SOHLA), a concept that merges the Defense‑oriented High Level Architecture (HLA) with Service‑Oriented Architecture (SOA) and Web Services to create a more flexible, interoperable simulation framework. After a brief historical overview—HLA originated in 1995 as a DoD standard for linking live, virtual, and constructive simulations, while SOA was proposed in the mid‑1990s to enable reusable, loosely‑coupled services across heterogeneous enterprise systems—the authors define SOHLA as an architecture that enables distributed interoperating services through SOA and Web‑based techniques.

Four possible layers for “web‑enabling” HLA are identified: (1) the communication layer, where the underlying RTI protocol is replaced or extended with Web‑Enabled RTI supporting HTTP/SOAP; (2) the interface‑specification layer, where the HLA Evolved Web Service API (WS‑API) provides WSDL‑defined services; (3) the federate‑interface layer, where adapters such as the HLA Connector bridge traditional federates to Web Service federates; and (4) the application layer, where federates themselves become Web Service providers or consumers (e.g., HLA Island). This layered view clarifies where and how SOA concepts can be injected without breaking existing HLA semantics.

A detailed comparison between HLA and SOA/Web Services is presented across twelve dimensions, including interoperability level, reuse granularity, extensibility, scalability, coupling, agility, architecture style, performance, time management, publish/subscribe mechanisms, data exchange mode, and encoding. HLA excels in high‑performance binary data exchange, strict time management, and deterministic synchronization, but it is tightly coupled and offers coarse‑grained reuse. SOA/Web Services provide platform‑independent, loosely‑coupled, fine‑grained services with rich discovery and composition capabilities, yet they lack built‑in simulation‑specific time management and can suffer from higher latency and lower throughput, especially over WAN. The authors argue that the two paradigms are complementary: integrating SOA into HLA can extend interoperability, reusability, extensibility, and agility while preserving HLA’s strengths in scalability and deterministic execution.

The core technical contribution is the analysis of the HLA Evolved Web Service API (WS‑API) versus traditional native APIs (C++/Java). Key differences include: a client‑server model where the Web Service Provider RTI Component (WSPRC) resides on the server and federates act as clients; a unidirectional request/response communication using SOAP over HTTP instead of bidirectional callbacks over TCP/UDP; string/XML encoding of object classes, attributes, interactions, and parameters rather than binary handles; session management handled by the WSPRC; and the need for WSDL‑generated stubs rather than direct linkage to an RTI library. While WS‑API simplifies deployment across firewalls and enables federates to be written in any language supporting Web Services, it introduces performance penalties due to larger message sizes and additional round‑trips, making it less suitable for high‑frequency updates in LAN environments.

The paper also discusses how the traditional Federation Development and Execution Process (FEDEP) must be extended to incorporate web‑centric design, testing, and debugging practices. It highlights the necessity of a dedicated development and debug environment that can simulate both the RTI and Web Service components, and points out new concerns such as security, fault tolerance, versioning, and service discovery that are not addressed in the original FEDEP.

Various research efforts and commercial products related to web‑enabling HLA are surveyed. At the communication layer, Web‑Enabled RTI implementations have been explored in projects such as XMSF. At the interface‑specification layer, the WS‑API is standardized in the IEEE1516‑e specification and supported by vendors like Pitch and MAK. At the federate‑interface layer, adapters (e.g., HLA Connector) allow legacy federates to interoperate with Web Service federates. At the application layer, concepts like HLA Island demonstrate federates acting as service providers within broader enterprise ecosystems.

Finally, the authors identify open research challenges: (1) standardizing service discovery and registry mechanisms (e.g., UDDI integration) for simulation services; (2) strengthening security and authentication for Web‑based federations; (3) optimizing performance and scalability of WS‑API for large‑scale, high‑frequency simulations; (4) extending time management and synchronization primitives to operate over SOAP/HTTP; and (5) fostering broader industry adoption through continued standardization by SISO and IEEE. They conclude that SOHLA offers a promising pathway to bridge defense‑grade simulation with enterprise service ecosystems, enabling more flexible, reusable, and globally accessible modeling and simulation capabilities.
