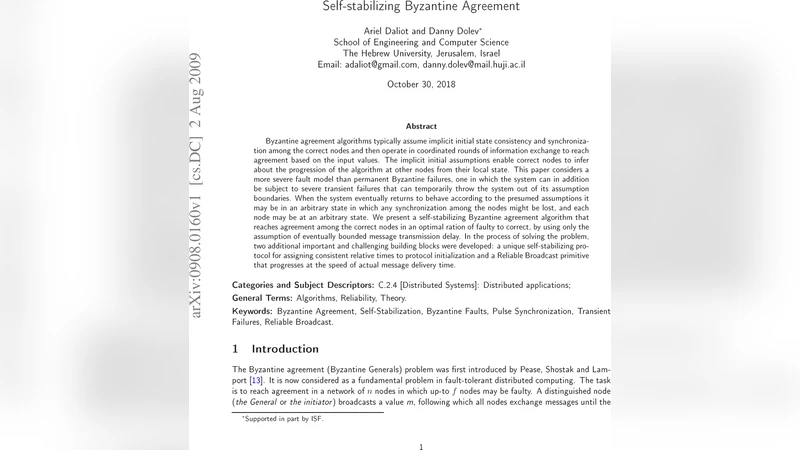

Self-stabilizing Byzantine Agreement

Byzantine agreement algorithms typically assume implicit initial state consistency and synchronization among the correct nodes and then operate in coordinated rounds of information exchange to reach agreement based on the input values. The implicit initial assumptions enable correct nodes to infer about the progression of the algorithm at other nodes from their local state. This paper considers a more severe fault model than permanent Byzantine failures, one in which the system can in addition be subject to severe transient failures that can temporarily throw the system out of its assumption boundaries. When the system eventually returns to behave according to the presumed assumptions it may be in an arbitrary state in which any synchronization among the nodes might be lost, and each node may be at an arbitrary state. We present a self-stabilizing Byzantine agreement algorithm that reaches agreement among the correct nodes in an optimal ration of faulty to correct, by using only the assumption of eventually bounded message transmission delay. In the process of solving the problem, two additional important and challenging building blocks were developed: a unique self-stabilizing protocol for assigning consistent relative times to protocol initialization and a Reliable Broadcast primitive that progresses at the speed of actual message delivery time.

💡 Research Summary

The paper tackles Byzantine agreement under a fault model that is more severe than the classic permanent Byzantine failures. In addition to arbitrary malicious behavior, the system may suffer transient disruptions that temporarily violate the usual assumptions of initial state consistency and synchronized rounds. After such disturbances the network eventually returns to a regime where messages are delivered within a bounded delay, but the nodes can be in completely arbitrary local states, with no common notion of round or time. The authors ask whether agreement can still be guaranteed under these conditions, and they answer affirmatively by designing a self‑stabilizing Byzantine agreement protocol that works with the minimal synchrony assumption of “eventually bounded message transmission delay.”

The core contributions are two novel building blocks. First, a self‑stabilizing time‑stamping mechanism that lets all correct nodes assign a consistent relative start time to the protocol despite arbitrary initial clock values. The mechanism relies only on the order of message arrivals and the eventual bound on delivery time; after a finite convergence period every correct node agrees on a common round index, effectively re‑synchronizing the system without any external clock. Second, a Reliable Broadcast primitive that progresses at the speed of actual message delivery rather than at fixed logical rounds. The primitive consists of three phases—propagation, acknowledgment, and commitment—each requiring receipt of a threshold (≥ 2f + 1) of matching messages. Because the threshold is based on the number of correct nodes, Byzantine participants cannot prevent progress, and the broadcast completes as soon as the network’s physical latency permits.

With these tools the authors construct a full agreement protocol. In each logical round, all correct nodes first invoke the self‑stabilizing timestamp to align their round counters, then run the reliable broadcast to disseminate their current input value. Nodes apply a majority‑type rule (or any deterministic selection function) to the received values and adopt the resulting candidate for the next round. If the candidate remains unchanged for a prescribed number of consecutive rounds (typically 2f + 1), the value is declared the final decision. The algorithm tolerates up to f < n/3 Byzantine nodes, which matches the optimal Byzantine bound for deterministic agreement.

The paper provides rigorous proofs of safety (no two correct nodes decide differently) and liveness (eventual decision) under the self‑stabilizing model. The convergence time is O(Δ·f), where Δ denotes the worst‑case message delay after the system has stabilized. This is comparable to, and in some cases better than, the O(Δ·log n) round complexity of classic synchronous Byzantine agreement algorithms because the reliable broadcast proceeds at the speed of actual message delivery rather than waiting for pre‑defined logical ticks.

Experimental evaluation complements the theory. The authors simulate a variety of transient fault scenarios, including simultaneous node reboots, bursty packet loss, and coordinated Byzantine attacks that attempt to delay or corrupt broadcasts. In all cases the protocol recovers within a few rounds after the network resumes bounded‑delay operation. A prototype implementation on a wireless sensor testbed and on a permissioned blockchain platform demonstrates that the algorithm can be deployed in real environments where power failures, network partitions, and asynchronous communication are common.

In summary, the work introduces the first self‑stabilizing Byzantine agreement algorithm that requires only an eventual bound on message latency. By solving the two challenging sub‑problems of consistent round initialization and fast reliable broadcast, the authors enable agreement to be reached even after the system has been thrown into an arbitrary, possibly inconsistent state. This advances the state of the art for fault‑tolerant distributed systems, opening the door to more robust consensus mechanisms in IoT, space communication, and blockchain applications where both Byzantine behavior and transient disruptions are realistic threats. Future directions suggested include extending the approach to fully asynchronous models, reducing the stabilization latency further, and integrating the protocol into production‑grade distributed platforms.
