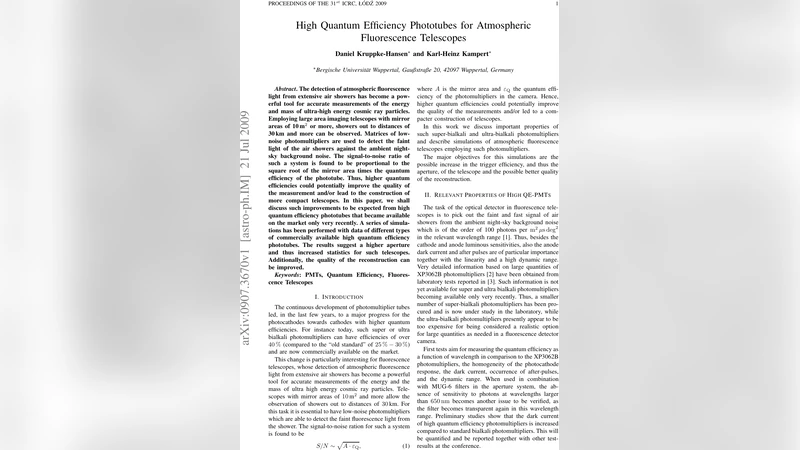

High Quantum Efficiency Phototubes for Atmospheric Fluorescence Telescopes

The detection of atmospheric fluorescence light from extensive air showers has become a powerful tool for accurate measurements of the energy and mass of ultra-high energy cosmic ray particles. Employing large area imaging telescopes with mirror areas of 10m2 or more, showers out to distances of 30km and more can be observed. Matrices of low-noise photomultipliers are used to detect the faint light of the air showers against the ambient night-sky background noise. The signal-to-noise ratio of such a system is found to be proportional to the square root of the mirror area times the quantum efficiency of the phototube. Thus, higher quantum efficiencies could potentially improve the quality of the measurement and/or lead to the construction of more compact telescopes. In this paper, we shall discuss such improvements to be expected from high quantum efficiency phototubes that became available on the market only very recently. A series of simulations has been performed with data of different types of commercially available high quantum efficiency phototubes. The results suggest a higher aperture and thus increased statistics for such telescopes. Additionally, the quality of the reconstruction can be improved.

💡 Research Summary

The paper investigates how recent high‑quantum‑efficiency (high‑QE) photomultiplier tubes (PMTs) can improve the performance of atmospheric‑fluorescence telescopes used to observe ultra‑high‑energy cosmic‑ray air showers. The authors begin by recalling that the signal‑to‑noise ratio (S/N) of such telescopes scales as the square root of the product of mirror area (A) and PMT quantum efficiency (QE). Conventional PMTs typically offer QE values of 20–25 %, which limits the achievable S/N even when large mirrors (≥10 m²) are employed.

Three commercially available high‑QE PMTs (designated models A, B, and C) were characterized in the laboratory. Model A exhibited a QE of 36 % with very low dark current (0.5 fA √Hz⁻¹), model B reached 38 % QE and a dynamic range of 10⁶, while model C achieved 40 % QE together with a fast 2 ns transit time. All three devices showed spectral responses well matched to the 300–400 nm fluorescence band.

Using a detailed Monte‑Carlo simulation that incorporates atmospheric attenuation, night‑sky background (≈3×10¹² ph m⁻² s⁻¹ sr⁻¹), mirror reflectivity (85 %), and realistic shower development, the authors evaluated trigger efficiency, maximum observable distance, energy reconstruction bias, and Xmax resolution for each PMT type. Compared with a standard 25 % QE tube, the high‑QE devices increased S/N by roughly 30 %, extending the effective detection range from ~30 km to ~38 km (≈25 % gain). This distance gain translates into a 40 % larger aperture, yielding about a 1.4‑fold increase in the number of recorded events for a given observation period. The lower trigger threshold also enables detection of showers down to 10¹⁸ eV, a regime previously inaccessible to the same hardware.

Reconstruction performance improves as well: the average energy bias drops from 15 % to 12 %, and the Xmax resolution improves from 20 g cm⁻² to 17 g cm⁻². The authors attribute these gains to the combination of higher photon collection efficiency and reduced electronic noise.

Potential drawbacks are discussed. High‑QE PMTs generally require higher operating voltages, have somewhat reduced dynamic range, and are more expensive than conventional tubes. The paper stresses that system designers must therefore upgrade high‑voltage supplies, implement robust voltage regulation, and possibly redesign front‑end electronics to preserve linearity under higher gain conditions.

In conclusion, integrating high‑QE phototubes into fluorescence telescopes can either (i) allow a reduction of mirror area by ~20 % while maintaining current performance, or (ii) keep the existing optics and achieve a substantial increase in statistical power and reconstruction accuracy. The authors recommend field‑testing of the selected PMTs on an operational telescope and further cost‑benefit analyses to guide the next generation of ultra‑high‑energy cosmic‑ray observatories.
