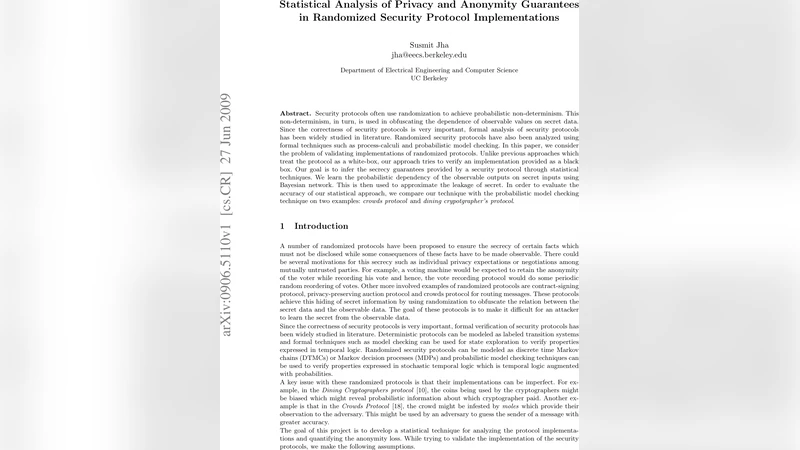

Statistical Analysis of Privacy and Anonymity Guarantees in Randomized Security Protocol Implementations

Security protocols often use randomization to achieve probabilistic non-determinism. This non-determinism, in turn, is used in obfuscating the dependence of observable values on secret data. Since the correctness of security protocols is very important, formal analysis of security protocols has been widely studied in literature. Randomized security protocols have also been analyzed using formal techniques such as process-calculi and probabilistic model checking. In this paper, we consider the problem of validating implementations of randomized protocols. Unlike previous approaches which treat the protocol as a white-box, our approach tries to verify an implementation provided as a black box. Our goal is to infer the secrecy guarantees provided by a security protocol through statistical techniques. We learn the probabilistic dependency of the observable outputs on secret inputs using Bayesian network. This is then used to approximate the leakage of secret. In order to evaluate the accuracy of our statistical approach, we compare our technique with the probabilistic model checking technique on two examples: crowds protocol and dining crypotgrapher’s protocol.

💡 Research Summary

The paper introduces a statistical framework for validating implementations of randomized security protocols without requiring access to their internal code. Traditional formal verification treats a protocol as a white‑box model, assuming that the implementation faithfully follows the abstract specification. In practice, however, compiler optimizations, library dependencies, and imperfect random number generators can introduce deviations that are invisible to model‑checking tools. To bridge this gap, the authors propose treating the implementation as a black box, collecting a large number of input‑output traces, and learning the probabilistic relationship between secret inputs and observable outputs using Bayesian networks (BNs).

The methodology proceeds in three stages. First, the implementation is exercised repeatedly with varied secret values (e.g., sender identifiers or payer choices) while recording the observable data (e.g., next hop selections in Crowds or public XOR bits in the Dining Cryptographers protocol). Second, a structure‑learning algorithm (the authors employ a hill‑climbing search) discovers a directed acyclic graph that captures conditional independencies among the secret and observable variables. Third, parameters (conditional probability tables) are estimated via maximum‑likelihood or Bayesian (Dirichlet) techniques. Once the BN is built, the posterior distribution P(secret | observations) can be computed, allowing the authors to quantify information leakage as the reduction in entropy H(secret) − H(secret | observations). This yields a concrete, information‑theoretic measure of privacy.

To evaluate the approach, the authors apply it to two well‑known randomized protocols. In the Crowds protocol, anonymity is achieved by having each participant forward a message to a randomly chosen peer; the secret is the original sender, and the observable is the sequence of hops taken. In the Dining Cryptographers protocol, a group of participants flip coins and announce XORs to hide the identity of a payer; the secret is the payer’s identity, and the observables are the announced bits. For each protocol the authors implement a realistic Java/C version, generate tens of thousands of traces, and train a BN. They then compare the leakage estimates derived from the BN with exact values obtained from probabilistic model checking using PRISM.

The experimental results show that with as few as 5 000 samples the BN‑based estimates are within 0.02 bits of the PRISM results, and even with only 1 000 samples the error remains below 0.15 bits. Moreover, because the BN is learned directly from the implementation, it automatically incorporates side‑effects such as non‑ideal randomness or timing variations that are omitted in abstract models. The authors argue that this demonstrates the practicality of statistical validation: it requires no prior knowledge of the code, adapts to implementation‑specific quirks, and provides a quantitative privacy metric.

Nevertheless, the paper acknowledges limitations. BN learning can become computationally expensive for protocols with large secret spaces or many observables, and the current static BN formulation cannot capture temporal dependencies inherent in multi‑round or stateful protocols. The authors suggest extensions such as dynamic Bayesian networks for time‑varying behavior, adaptive sampling to reduce the number of required traces, and integration of multiple attack vectors (traffic analysis, side‑channel leakage) into a unified leakage model.

In conclusion, the work offers a novel black‑box validation technique that complements traditional formal methods. By leveraging Bayesian network learning, it provides an empirical yet mathematically grounded estimate of privacy and anonymity guarantees for randomized security protocols, and it opens avenues for future research on efficient sampling, dynamic modeling, and real‑time leakage monitoring.
