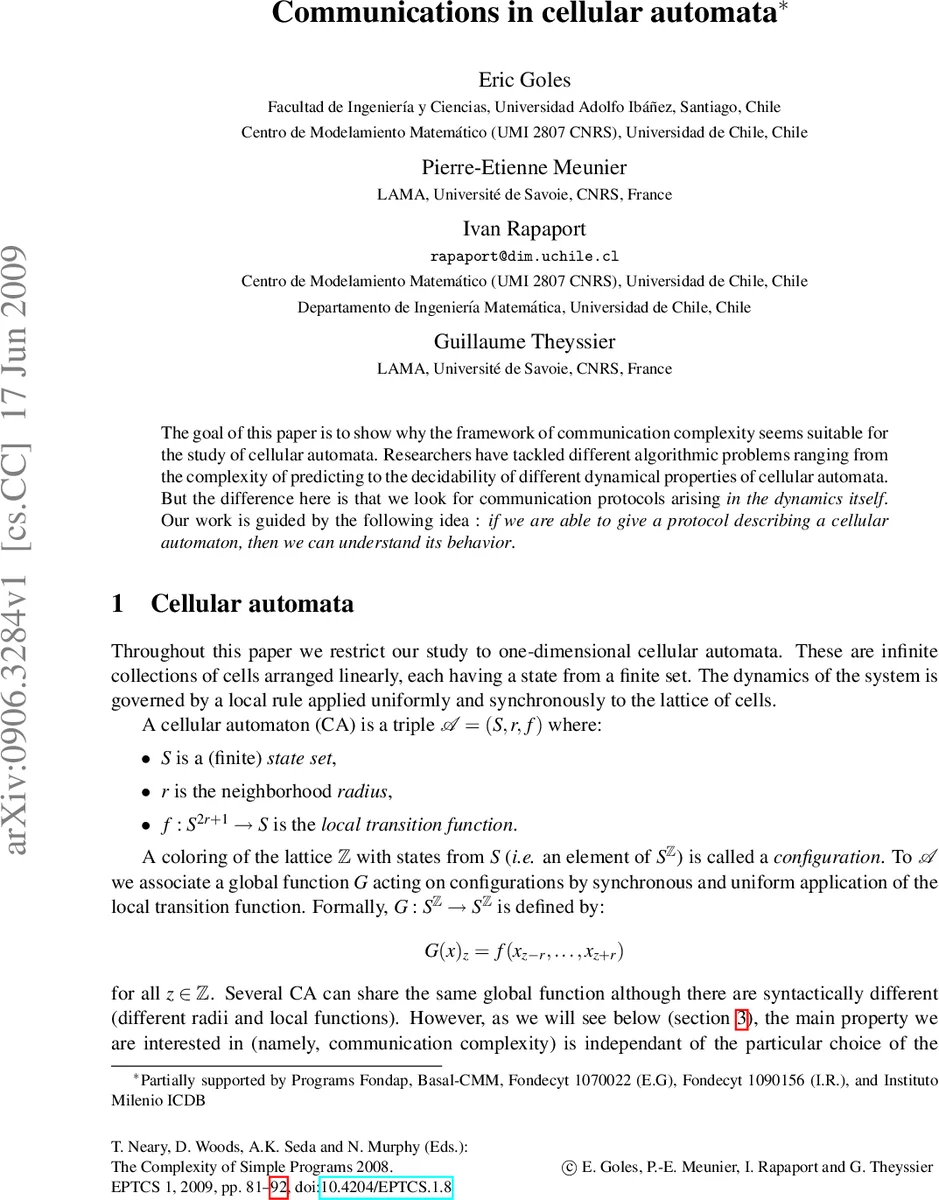

Communications in cellular automata

The goal of this paper is to show why the framework of communication complexity seems suitable for the study of cellular automata. Researchers have tackled different algorithmic problems ranging from the complexity of predicting to the decidability of different dynamical properties of cellular automata. But the difference here is that we look for communication protocols arising in the dynamics itself. Our work is guided by the following idea: if we are able to give a protocol describing a cellular automaton, then we can understand its behavior.

💡 Research Summary

The paper introduces communication complexity as a novel analytical framework for studying cellular automata (CA). While prior work on CA has largely focused on algorithmic problems such as prediction complexity, decidability of dynamical properties, and classifications based on time‑space complexity or entropy, this study shifts the focus to the communication protocols that naturally arise from the dynamics of the automaton itself. The central thesis is simple yet powerful: if one can describe a CA by an efficient communication protocol, then the behavior of that CA becomes substantially more understandable.

The authors begin by reviewing the standard model of deterministic two‑party communication complexity. In this model, two players, Alice and Bob, each receive a portion of the input (x and y respectively) and must compute a joint function f(x, y) while exchanging as few bits as possible. The minimum number of exchanged bits, denoted C(f, n), serves as a measure of the intrinsic difficulty of f. This notion is then mapped onto the evolution of a CA. An initial configuration C₀ on a one‑dimensional lattice is split into two contiguous blocks, C₀ᴬ and C₀ᴮ, assigned to Alice and Bob. At each discrete time step, a cell’s new state depends only on a finite neighbourhood of radius r. Consequently, to compute the global configuration after t steps, Alice and Bob need only exchange information about the cells that lie on the boundary of their respective blocks and whose neighbourhoods cross that boundary. The amount of information that must be communicated therefore reflects how far the influence of a local change propagates through the lattice.

The paper proceeds with a systematic case‑study of several well‑known elementary CA rules. Linear rules such as Rule 90 and Rule 150 are shown to have extremely low communication complexity: because the update rule is a simple XOR, each party can locally compute the linear combination of its own bits and needs to exchange only a constant number of bits (essentially the XOR of the two boundary cells) to reconstruct the next global configuration. Rule 184, which models traffic flow, also exhibits low complexity; only the states of cells immediately adjacent to the cut need to be exchanged, leading to a communication cost that grows linearly with the number of simulated time steps but remains independent of the lattice size.

In contrast, non‑linear and computationally universal rules such as Rule 30 and Rule 110 display dramatically higher communication requirements. The authors prove lower bounds based on information‑theoretic arguments: the entropy generated by these rules grows proportionally to the lattice size, implying a communication lower bound of Ω(log n) bits per step. Moreover, because Rule 110 is Turing‑complete, any protocol that predicts its evolution for arbitrary time horizons would effectively solve the halting problem, which is impossible within polynomial communication. Thus, for such rules the communication complexity is essentially unbounded.

A key conceptual contribution is the introduction of “communication cuts.” By treating the CA as a graph and removing edges that cross a chosen cut, the authors examine whether the remaining sub‑graphs can still correctly simulate the global dynamics when supplemented with a limited amount of exchanged information. This analysis yields a quantitative measure of locality versus long‑range dependence: CA that are highly local (e.g., linear or traffic‑flow rules) require only small cuts, whereas CA that generate complex patterns need large cuts and consequently higher communication.

The paper also derives general upper and lower bounds for any CA with neighbourhood radius r in d dimensions. An upper bound of O(r·d·log n) bits per step follows from the observation that each cell interacts with at most r·d neighbours, limiting the amount of new information that can cross a cut. The lower bound is linked to the Shannon entropy H(Cₜ) of the configuration after t steps: H(Cₜ) ≤ C(f, n)·log|Σ|, where Σ is the cell alphabet. Hence, CA that produce high‑entropy configurations inevitably demand a non‑trivial amount of communication.

Building on these results, the authors propose a three‑tier classification of CA based on communication complexity:

1. Low‑communication CA – Linear rules and simple traffic models. They are easily predictable, amenable to distributed simulation, and have modest information propagation.
2. Medium‑communication CA – Rules such as 54 that exhibit moderate long‑range correlations; they require more communication than low‑communication CA but still allow efficient protocols for bounded time horizons.
3. High‑communication CA – Universally computational rules like 110 and chaotic rules like 30. Their dynamics generate substantial entropy and long‑range dependencies, making any low‑communication protocol infeasible.

The authors argue that this classification aligns with traditional dynamical categories (stable, chaotic, complex) and offers a practical tool for selecting CA in applications. For instance, cryptographic constructions benefit from high‑communication CA because their inherent unpredictability translates into strong diffusion and confusion properties. Conversely, large‑scale physical simulations (e.g., fluid dynamics models) prefer low‑communication CA to minimize inter‑processor communication overhead.

In the discussion, the paper outlines several promising research directions. One is the exploration of probabilistic and quantum communication models, which could lower the required bits for certain CA and reveal new connections between quantum information theory and discrete dynamical systems. Another avenue is the integration of communication complexity with other complexity measures—Kolmogorov complexity, Lyapunov exponents, and algorithmic randomness—to develop a multi‑dimensional taxonomy of CA behavior. Finally, the authors suggest that communication‑complexity‑based analysis could be extended to higher‑dimensional CA, asynchronous update schemes, and non‑uniform cellular automata, potentially uncovering universal principles governing information flow in discrete space‑time systems.

Overall, the paper demonstrates that communication complexity provides a rigorous, quantitative lens through which the internal information dynamics of cellular automata can be examined. By linking the amount of necessary inter‑party communication to the structural properties of CA rules, the work offers fresh insights into predictability, decidability, and practical implementation, thereby enriching both theoretical understanding and applied methodology in the study of cellular automata.
