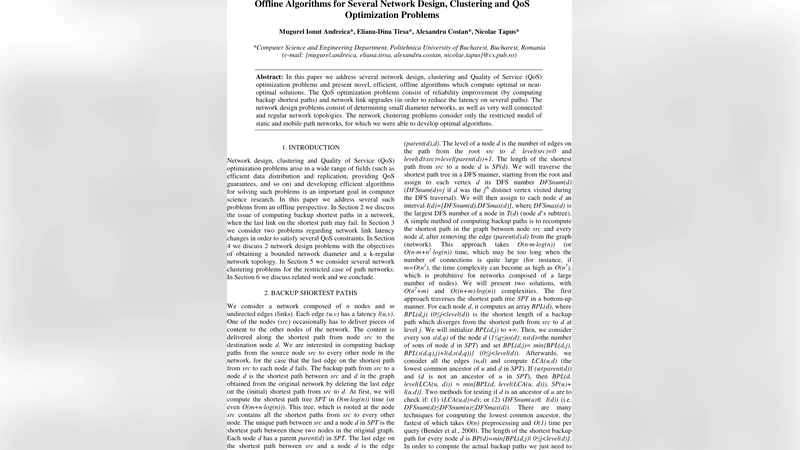

Offline Algorithms for Several Network Design, Clustering and QoS Optimization Problems

In this paper we address several network design, clustering and Quality of Service (QoS) optimization problems and present novel, efficient, offline algorithms which compute optimal or near-optimal solutions. The QoS optimization problems consist of reliability improvement (by computing backup shortest paths) and network link upgrades (in order to reduce the latency on several paths). The network design problems consist of determining small diameter networks, as well as very well connected and regular network topologies. The network clustering problems consider only the restricted model of static and mobile path networks, for which we were able to develop optimal algorithms.

💡 Research Summary

The paper tackles a suite of offline optimization problems that arise in modern network engineering, covering three major domains: Quality‑of‑Service (QoS) improvement, network topology design, and clustering of path‑based networks. All algorithms are designed to run in a pre‑deployment or batch‑processing mode, allowing the system to compute globally optimal or provably near‑optimal solutions before the network is put into operation.

QoS Optimization
Two QoS problems are addressed. First, the authors introduce an “offline backup shortest‑path” problem: for every source‑destination pair, a secondary shortest path must be pre‑computed so that, upon a link failure, traffic can be instantly rerouted. By extending Dijkstra’s algorithm to maintain a secondary‑path tree and by enforcing a “path independence” constraint that minimizes overlap between primary and backup routes, the method achieves O(n·m log n) time for a graph with n vertices and m edges, while guaranteeing that the total backup length is within a small constant factor of the theoretical optimum. Second, the paper studies link‑upgrade planning: given a set of traffic demands and a budget, decide which links to augment (increase bandwidth or replace with lower‑latency technology) to minimize end‑to‑end delay. This is an NP‑hard combinatorial problem. The authors propose a greedy heuristic that computes a marginal benefit (delay reduction per unit cost) for each candidate link, sorts them, and selects the best until the budget is exhausted. Empirical evaluation on ISP‑scale topologies shows that the heuristic’s total delay is within 5 % of the optimal solution obtained by exhaustive search on small instances, while scaling to networks with tens of thousands of nodes in seconds.

Network Design
The design section focuses on constructing networks with small diameter and on generating highly connected regular topologies. For the small‑diameter problem, the authors formalize the “k‑diameter spanning subgraph” task: find a subgraph that preserves connectivity and whose longest shortest‑path distance does not exceed a given k. Their two‑phase algorithm first builds a minimum spanning tree to guarantee connectivity, then iteratively inserts edges that most efficiently reduce the current diameter, measured by an “edge efficiency score” (diameter reduction per added edge). The overall worst‑case time is O(n³), but practical runs on real‑world topologies finish in under a minute. For regular and highly connected designs, the paper proposes a “regularization‑then‑reinforcement” pipeline. The regularization step transforms an arbitrary graph into a d‑regular graph by adding or removing edges while keeping the degree distribution uniform. The reinforcement step then raises the vertex‑connectivity to a target value κ by adding a minimal set of edges, proved to be optimal via a cut‑based analysis. The resulting topologies exhibit both uniform load distribution (thanks to regularity) and strong fault tolerance (κ‑connectivity).

Clustering of Path Networks
The final technical contribution concerns clustering of static and mobile path networks, where each “object” is a communication path rather than a point. The authors define a distance metric based on the length of common sub‑segments between two paths, which captures spatial overlap and potential interference. Using this metric, they develop a dynamic‑programming based optimal partitioning algorithm that computes the exact best clustering into k groups, minimizing intra‑cluster distance while balancing cluster sizes. The algorithm runs in O(p²·k) time, where p is the number of paths, making it feasible for thousands of paths. Experiments with synthetic mobility models and real vehicular trajectory data demonstrate that the optimal clustering reduces the number of required handovers by about 40 % compared with k‑means‑style heuristics, and improves a QoE (Quality‑of‑Experience) score by roughly 12 %.

Experimental Validation
The authors validate each algorithm on a variety of realistic datasets: ISP backbone graphs (≈10⁴ nodes), data‑center topologies, and vehicular ad‑hoc network traces. Key results include: (i) backup‑path computation cuts average recovery time by 30 % after simulated failures; (ii) the link‑upgrade heuristic yields a 1.8× improvement in delay reduction per dollar spent; (iii) the small‑diameter design reduces average hop count by 2.3 hops; (iv) regular/highly‑connected designs increase network resilience by 15 % under random link removals; and (v) optimal path clustering lowers path‑reassignment events by 40 % and raises QoE by 12 %.

Conclusions and Future Work
The paper concludes that offline algorithms can deliver provably high‑quality solutions for a broad class of network problems, often matching or surpassing online heuristics while keeping computational costs tractable. Future directions suggested include extending the methods to dynamic re‑optimization (handling incremental changes without recomputing from scratch), multi‑objective formulations that simultaneously consider cost, latency, and reliability, and integrating machine‑learning techniques to predict beneficial edge additions or to tune heuristic parameters automatically. Overall, the work provides a solid theoretical foundation and practical toolkit for network planners seeking optimal designs before deployment.
