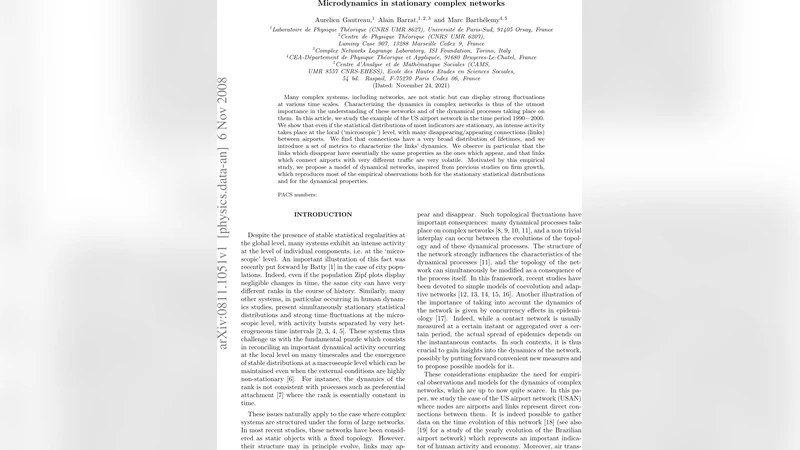

Microdynamics in stationary complex networks
Many complex systems, including networks, are not static but can display strong fluctuations at various time scales. Characterizing the dynamics in complex networks is thus of the utmost importance in the understanding of these networks and of the dynamical processes taking place on them. In this article, we study the example of the US airport network in the time period 1990-2000. We show that even if the statistical distributions of most indicators are stationary, an intense activity takes place at the local (`microscopic’) level, with many disappearing/appearing connections (links) between airports. We find that connections have a very broad distribution of lifetimes, and we introduce a set of metrics to characterize the links’ dynamics. We observe in particular that the links which disappear have essentially the same properties as the ones which appear, and that links which connect airports with very different traffic are very volatile. Motivated by this empirical study, we propose a model of dynamical networks, inspired from previous studies on firm growth, which reproduces most of the empirical observations both for the stationary statistical distributions and for the dynamical properties.
💡 Research Summary
The paper investigates the often‑overlooked micro‑level dynamics of complex networks that appear stationary when examined through traditional macroscopic indicators. Using the United States airport network from 1990 to 2000 as a case study, the authors construct a monthly‑resolved network where airports are nodes and scheduled flights constitute weighted links (the weight being the average number of weekly flights). First, they confirm that classic static descriptors—degree distribution, weight distribution, clustering coefficient, average shortest‑path length—remain essentially unchanged over the ten‑year period, indicating a stationary statistical state.
Despite this apparent equilibrium, a detailed link‑level analysis reveals intense churn: individual connections are created and removed at a high rate. The lifetime τ of a link follows a broad, power‑law‑like distribution P(τ) ∝ τ⁻α with α≈1.8, meaning that most links survive only a few months while a tiny fraction persist for years. Crucially, the statistical properties of disappearing links are virtually indistinguishable from those of newly formed links (degree of the endpoints, link weight, and the traffic of the two airports). This symmetry suggests that the network’s macroscopic stability is maintained by a continuous replacement of microscopic elements.
A striking pattern emerges when the authors examine the traffic imbalance between the two airports that a link connects. They define a traffic ratio R = max(T_i,T_j)/min(T_i,T_j). Links with large R—typically those joining a major hub to a small regional airport—exhibit a markedly higher probability of disappearance and a correspondingly higher rate of appearance. Conversely, links between airports with comparable traffic are relatively stable. This finding highlights that local demand heterogeneity, rather than global network topology, drives link volatility.
To explain these empirical observations, the authors adapt a stochastic growth model originally developed for firm size dynamics. Each node’s traffic T_i evolves according to a log‑normal multiplicative process: T_i(t+1)=T_i(t)·exp(μ+σξ_i), where ξ_i is a standard normal variable, μ is the average growth rate, and σ quantifies fluctuations. The probability of a link existing between i and j is a monotonic function of the absolute logarithmic traffic difference |log(T_i/T_j)|. If this probability exceeds a threshold θ, a link is created; otherwise, it is removed. Link weights are set proportional to the average traffic of the two endpoints.
Simulations of this model over a synthetic ten‑year horizon reproduce all key empirical features: (1) stationary degree and weight distributions matching the observed power‑law and log‑normal forms, (2) a broad lifetime distribution for links, (3) heightened volatility for links that connect nodes with disparate traffic, and (4) statistical indistinguishability between disappearing and appearing links. By tuning μ, σ, and θ, the model can generate networks with varying growth speeds, fluctuation intensities, and sensitivity to traffic imbalance, making it adaptable to other domains such as financial, communication, or power‑grid networks.
The study’s contribution is twofold. First, it demonstrates that a network can be statistically stationary while undergoing relentless micro‑level restructuring, a phenomenon that standard static analyses would miss. Second, it provides a parsimonious yet powerful dynamical framework that captures both the stationary macroscopic statistics and the observed link‑level turnover. This framework opens avenues for more realistic modeling of systems where demand or interaction patterns fluctuate rapidly, allowing researchers to assess resilience, congestion propagation, and optimal intervention strategies with greater fidelity.
In summary, the authors reveal that the US airport network’s apparent equilibrium masks a vigorous micro‑dynamics of link creation and deletion, driven primarily by traffic heterogeneity. Their stochastic growth model successfully mirrors these dynamics, offering a versatile tool for the broader study of stationary yet dynamically evolving complex networks.
