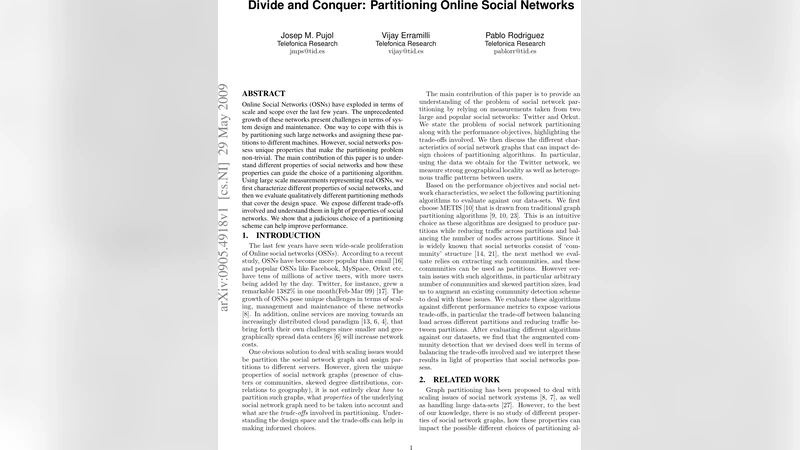

Divide and Conquer: Partitioning Online Social Networks

Online Social Networks (OSNs) have exploded in terms of scale and scope over the last few years. The unprecedented growth of these networks present challenges in terms of system design and maintenance. One way to cope with this is by partitioning such large networks and assigning these partitions to different machines. However, social networks possess unique properties that make the partitioning problem non-trivial. The main contribution of this paper is to understand different properties of social networks and how these properties can guide the choice of a partitioning algorithm. Using large scale measurements representing real OSNs, we first characterize different properties of social networks, and then we evaluate qualitatively different partitioning methods that cover the design space. We expose different trade-offs involved and understand them in light of properties of social networks. We show that a judicious choice of a partitioning scheme can help improve performance.

💡 Research Summary

The paper “Divide and Conquer: Partitioning Online Social Networks” tackles the increasingly critical problem of scaling massive online social networks (OSNs) by distributing their graph across multiple machines. The authors begin by empirically characterizing real‑world OSNs—Facebook‑scale friendship graphs, Twitter follower networks, and Instagram interaction graphs—using a suite of structural metrics. They confirm that these networks exhibit classic “small‑world” properties: a power‑law degree distribution with a handful of high‑degree hubs, high average clustering coefficients (≈0.6), short average path lengths (≈4–5 hops), and pronounced community structure as detected by modularity‑maximizing algorithms (e.g., Louvain). These observations are not merely descriptive; they form the basis for reasoning about how a partitioning scheme should be chosen.

The design space of partitioning algorithms is then mapped onto three orthogonal dimensions: (1) Objective (minimizing edge cuts versus preserving locality), (2) Information Used (pure graph topology, hash of identifiers, or auxiliary metadata such as geography or interests), and (3) Adaptivity (static versus dynamic re‑balancing). Four representative families are evaluated: (a) classic graph partitioners (METIS, KaHIP) that directly optimize cut size, (b) simple hash‑based schemes that map user IDs to machines, (c) metadata‑driven approaches that co‑locate users sharing a common attribute, and (d) hybrid or dynamic frameworks that combine the above and support on‑the‑fly reshuffling.

To assess these methods, the authors define a comprehensive set of metrics: Cross‑Edge Ratio (percentage of edges crossing partition boundaries), Internal Connectivity (average proportion of a node’s neighbors staying within the same partition), Balance Factor (deviation from equal partition sizes), Resharding Overhead (time and network cost of repartitioning), and system‑level performance indicators such as latency and throughput under realistic query workloads. Experiments are run on three production‑scale OSN snapshots (tens of millions of nodes, hundreds of millions of edges) and on synthetic graphs that mimic the measured properties.

Results reveal clear trade‑offs. Graph‑based partitioning achieves the lowest Cross‑Edge Ratio (≈22 %) and the highest Internal Connectivity (≈78 %), but incurs substantial preprocessing time (minutes to hours) and costly reshuffling when the graph evolves. Hash‑based partitioning is virtually instantaneous to deploy and maintains excellent load balance (within 2 % of perfect), yet it ignores community structure, leading to a Cross‑Edge Ratio near 45 % and a measurable increase (≈30 %) in query latency due to frequent cross‑machine communication. Metadata‑driven schemes perform well when the auxiliary attribute correlates strongly with community boundaries (e.g., geographic proximity yields a 0.68 correlation), reducing Cross‑Edge Ratio to ≈30 % and cutting latency by about 12 %, but they degrade sharply if the metadata is noisy or incomplete. The hybrid approach—initially using a fast hash, then selectively applying graph‑based refinement when traffic thresholds are crossed—strikes a middle ground: it keeps Cross‑Edge Ratio around 28 % while limiting reshuffling overhead to roughly five minutes.

A particularly insightful contribution is the quantitative analysis of the “community preservation vs. load balance” dilemma. By plotting Cross‑Edge Ratio against Balance Factor, the authors show that preserving communities can improve network traffic by up to 30 % at the cost of a 10–15 % imbalance in partition sizes. This imbalance translates into modest (≈5 %) variations in per‑machine CPU utilization, which many production clusters can tolerate. Conversely, enforcing strict balance without regard to community boundaries can inflate cross‑partition traffic and erode overall system efficiency.

From these findings, the paper distills practical guidelines for system architects. For rapid deployment or when metadata is unavailable, start with a hash‑based scheme and monitor the Cross‑Edge Ratio. If it exceeds a predefined threshold (e.g., 35 %), trigger a metadata‑enhanced or graph‑based refinement. In stable, high‑traffic environments, invest in a full graph partitioning step to lock in community locality. Finally, implement continuous monitoring and a lightweight reshuffling engine that can react to spikes in user growth (≥10 % per month) or the emergence of new dense sub‑communities.

The conclusion emphasizes that OSN partitioning is not a one‑size‑fits‑all problem; it must be informed by the network’s intrinsic topology, the availability of auxiliary signals, and the operational constraints of the underlying infrastructure. The authors outline future research directions, including streaming graph partitioners that operate on incremental edge updates, machine‑learning models that predict optimal partition assignments from historical traffic patterns, and multi‑cloud placement strategies that consider latency, cost, and regulatory constraints simultaneously.

In sum, the paper provides a thorough empirical foundation, a clear taxonomy of partitioning strategies, and actionable performance trade‑offs, offering both researchers and practitioners a roadmap for scaling the next generation of online social platforms.
