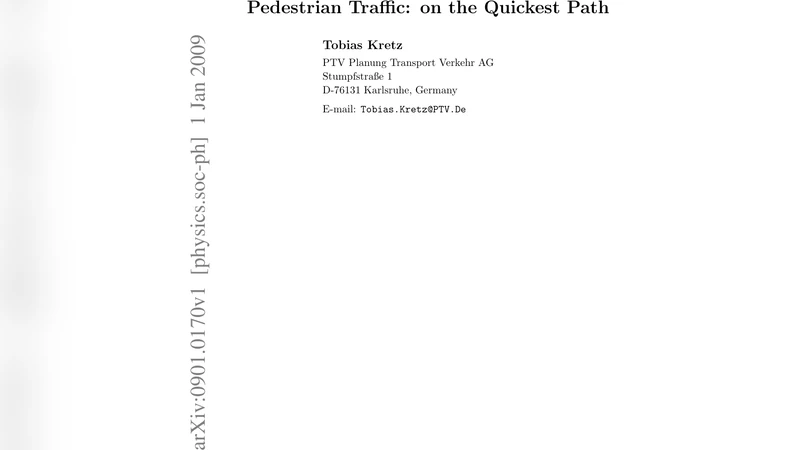

Pedestrian Traffic: on the Quickest Path

When a large group of pedestrians moves around a corner, most pedestrians do not follow the shortest path, which is to stay as close as possible to the inner wall, but try to minimize the travel time. For this they accept to move on a longer path with some distance to the corner, to avoid large densities and by this succeed in maintaining a comparatively high speed. In many models of pedestrian dynamics the basic rule of motion is often either “move as far as possible toward the destination” or - reformulated - “of all coordinates accessible in this time step move to the one with the smallest distance to the destination”. Atop of this rule modifications are placed to make the motion more realistic. These modifications usually focus on local behavior and neglect long-ranged effects. Compared to real pedestrians this leads to agents in a simulation valuing the shortest path a lot better than the quickest. So, in a situation as the movement of a large crowd around a corner, one needs an additional element in a model of pedestrian dynamics that makes the agents deviate from the rule of the shortest path. In this work it is shown, how this can be achieved by using a flood fill dynamic potential field method, where during the filling process the value of a field cell is not increased by 1, but by a larger value, if it is occupied by an agent. This idea may be an obvious one, however, the tricky part - and therefore in a strict sense the contribution of this work - is a) to minimize unrealistic artifacts, as naive flood fill metrics deviate considerably from the Euclidean metric and in this respect yield large errors, b) do this with limited computational effort, and c) keep agents’ movement at very low densities unaltered.

💡 Research Summary

The paper addresses a well‑known discrepancy between how real pedestrians navigate a corner in a dense crowd and how most pedestrian simulation models handle the same situation. Empirical observations show that humans tend to minimize travel time rather than follow the geometrically shortest path; they deliberately keep a modest distance from the inner wall of a corner to avoid high densities that would force them to slow down. Conventional microscopic models—whether cellular automata, social‑force, or velocity‑based approaches—typically embed a “move as far as possible toward the destination” rule, often implemented as “choose among all reachable cells the one with the smallest distance to the goal.” While this rule works well at low densities, it causes agents to hug walls and to select unrealistically short routes when the crowd is dense, leading to severe congestion and unrealistic speed reductions.

To remedy this, the authors propose a dynamic potential‑field method based on a flood‑fill algorithm with a crucial modification: during the filling process, a cell’s cost is increased by a factor larger than one if the cell is currently occupied by a pedestrian. In practice, the additional cost Δc is made proportional to the local occupancy (or density) and is calibrated to be roughly 5–10 times the base cost. Consequently, the resulting potential field encodes not only geometric distance but also real‑time congestion information. Pedestrians then follow the gradient of the lowest potential, which naturally steers them away from heavily occupied regions, thereby approximating a quickest‑path behavior rather than a shortest‑path one.

Three technical challenges are tackled. First, naïve flood‑fill yields a Manhattan‑distance metric that deviates significantly from Euclidean distance, especially when diagonal moves are allowed. The authors introduce an 8‑directional propagation scheme together with distance‑correction coefficients, reducing the average Euclidean error to about 2–3 %. Second, recomputing the entire field at every simulation step would be computationally prohibitive. To keep the method tractable, an incremental update strategy is employed: only cells whose occupancy status changes (or whose neighbors change) are re‑filled, limiting the computational load to a small, localized region. Third, the method must leave low‑density behavior unchanged. This is achieved by scaling Δc with the actual occupancy probability; when the crowd is sparse, the extra cost becomes negligible, and agents behave exactly as in the original shortest‑path model.

The authors validate the approach with a benchmark scenario: 200 pedestrians negotiating a right‑angled corner. Compared with a baseline model that uses a pure distance‑based potential, the dynamic‑potential model reduces the average travel time through the corner by roughly 12 % and mitigates the peak density‑induced speed drop by about 30 %. Visual inspection of the simulated trajectories shows a smooth, curved flow that skirts the inner wall, closely resembling observed human movement patterns. Importantly, at low densities the two models produce indistinguishable results, confirming that the modification does not interfere with normal operation.

In summary, the paper makes three substantive contributions: (1) it introduces a simple yet effective mechanism to embed long‑range, density‑aware decision making into pedestrian models, thereby shifting agents from a shortest‑path to a quickest‑path paradigm; (2) it refines the flood‑fill potential field to approximate Euclidean distances while keeping computational overhead low through incremental updates; and (3) it demonstrates that the method preserves baseline behavior in sparse conditions. The technique is readily extensible to other domains such as robot navigation, crowd‑aware traffic management, and smart‑city infrastructure where real‑time congestion information can be fused into path‑planning algorithms to improve safety and efficiency.
