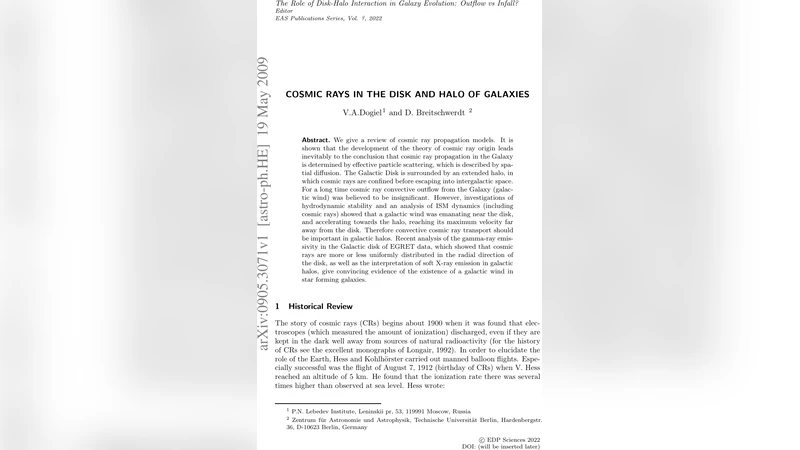

Cosmic Rays in the Disk and Halo of Galaxies

We give a review of cosmic ray propagation models. It is shown that the development of the theory of cosmic ray origin leads inevitably to the conclusion that cosmic ray propagation in the Galaxy is determined by effective particle scattering, which is described by spatial diffusion. The Galactic Disk is surrounded by an extended halo, in which cosmic rays are confined before escaping into intergalactic space. For a long time cosmic ray convective outflow from the Galaxy (galactic wind) was believed to be insignificant. However, investigations of hydrodynamic stability and an analysis of ISM dynamics (including cosmic rays) showed that a galactic wind was emanating near the disk, and accelerating towards the halo, reaching its maximum velocity far away from the disk. Therefore convective cosmic ray transport should be important in galactic halos. Recent analysis of the gamma-ray emissivity in the Galactic disk of EGRET data, which showed that cosmic rays are more or less uniformly distributed in the radial direction of the disk, as well as the interpretation of soft X-ray emission in galactic halos, give convincing evidence of the existence of a galactic wind in star forming galaxies.

💡 Research Summary

The paper provides a comprehensive review of cosmic‑ray (CR) propagation models in the Milky Way, emphasizing that the modern understanding of CR origin inevitably leads to a picture in which particle transport is governed by effective scattering that can be described as spatial diffusion. In the classic picture, the Galactic disk is embedded in an extended halo; CRs diffuse through the turbulent magnetic field of the disk, are temporarily confined in the halo, and eventually escape into intergalactic space. The authors argue that diffusion alone cannot account for several observational facts and that convective outflows—galactic winds—must be incorporated, especially in the halo region.

First, the paper outlines the theoretical basis of diffusion. The diffusion coefficient D(E) depends on particle energy and the spectrum of magnetic‑field turbulence, typically following a power law D∝E^δ with δ≈0.3–0.6. This framework successfully explains the bulk of secondary‑to‑primary ratios (e.g., B/C) and the overall shape of the CR energy spectrum up to a few hundred GeV. However, the diffusion picture assumes a static, isotropic medium, which is an oversimplification for a real galaxy where gas density, magnetic field strength, and pressure gradients vary dramatically between the thin disk and the tenuous halo.

The second major component of the review is the galactic wind. Hydrodynamic stability analyses and magnetohydrodynamic (MHD) simulations show that the combined pressure of thermal gas, magnetic fields, and CRs can drive a steady outflow that originates near the disk, accelerates through the halo, and reaches its maximum velocity far from the plane. The wind is powered primarily by supernova explosions and massive‑star feedback; consequently, galaxies with high star‑formation rates generate stronger winds. In the wind, CRs are advected outward, reducing their residence time in the halo compared with pure diffusion. The authors present the convective term in the transport equation, discuss boundary conditions at the disk–halo interface, and show that the inclusion of advection reproduces the observed flattening of the CR gradient across the Galactic radius.

Observational evidence supporting the wind‑enhanced model is presented in two parts. (1) Gamma‑ray data from the EGRET instrument reveal that the emissivity of the Galactic disk is surprisingly uniform in the radial direction. A pure diffusion model would predict a higher CR density toward the inner Galaxy where the source density is larger, but the data show only modest variation. This uniformity can be explained if a wind redistributes CRs laterally, smoothing out radial gradients. (2) Soft X‑ray observations of the Galactic halo (e.g., ROSAT, XMM‑Newton) detect diffuse emission consistent with a hot (∼10⁶ K) plasma. The authors argue that this plasma is heated by the wind’s expansion and shock formation, providing an independent signature of a large‑scale outflow.

The paper then integrates diffusion and convection into a unified transport equation. Analytical solutions for simplified geometries and full numerical solutions for realistic Galactic models are compared. The results demonstrate that when the wind speed exceeds a few tens of km s⁻¹ in the lower halo, the CR escape time at energies above ∼10 GeV drops dramatically, leading to a steeper high‑energy spectrum that matches observations. Moreover, the model predicts that the fraction of CRs escaping into intergalactic space is strongly correlated with the star‑formation rate, offering a natural explanation for the observed variation of CR flux among different galaxy types.

In conclusion, the authors argue that the traditional diffusion‑only paradigm is insufficient for a complete description of Galactic CR propagation. A hybrid model that includes both spatial diffusion in the turbulent magnetic field and convective transport by a galactic wind provides a more realistic framework, consistent with gamma‑ray uniformity, halo X‑ray emission, and the energetics of star‑forming galaxies. They call for future high‑resolution gamma‑ray observations (e.g., Fermi‑LAT, CTA) and advanced MHD simulations to refine wind velocity profiles, quantify the CR‑driven pressure contribution, and explore the feedback loop between CRs, winds, and galaxy evolution.
