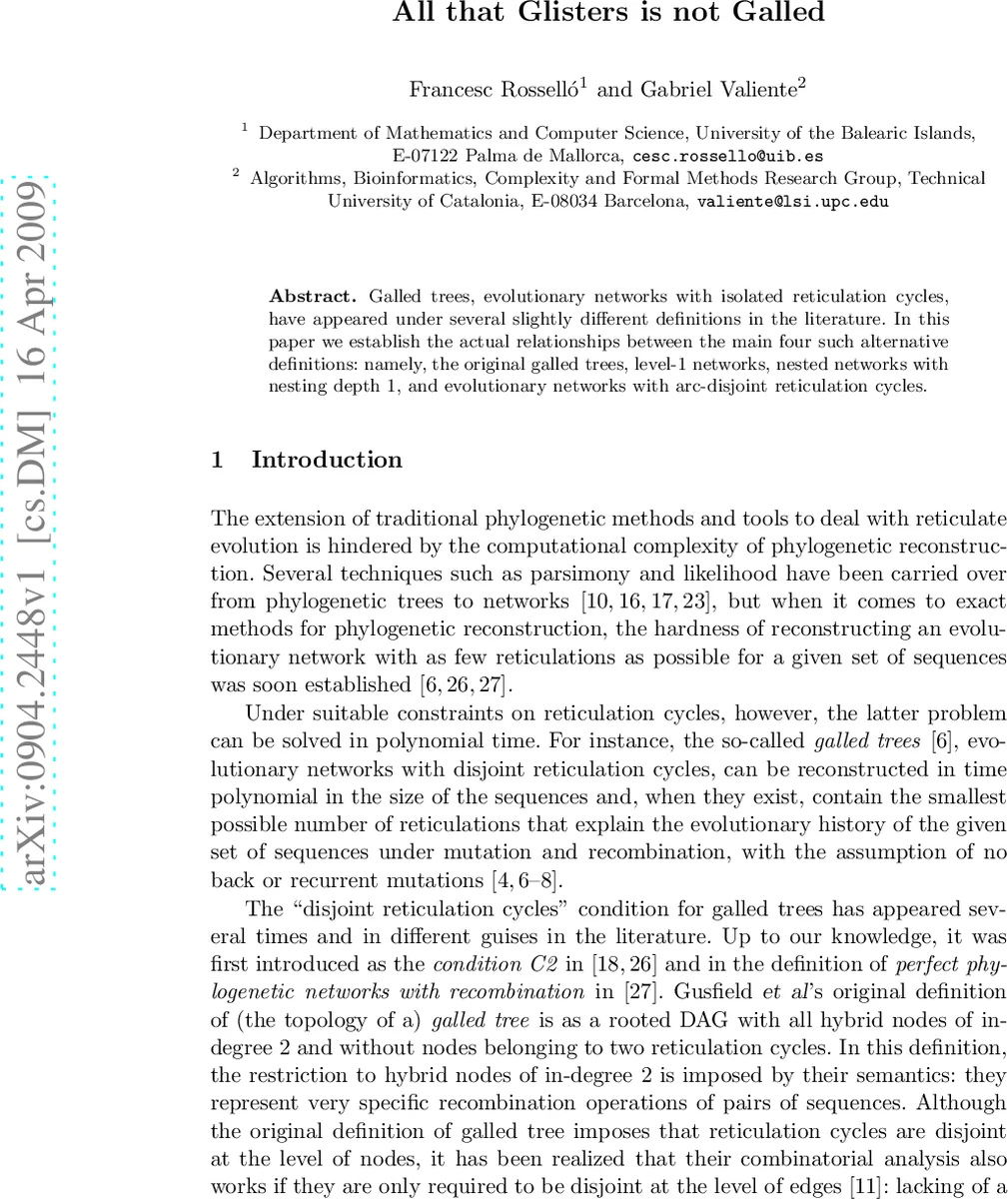

All that Glisters is not Galled

Galled trees, evolutionary networks with isolated reticulation cycles, have appeared under several slightly different definitions in the literature. In this paper we establish the actual relationships between the main four such alternative definitions: namely, the original galled trees, level-1 networks, nested networks with nesting depth 1, and evolutionary networks with arc-disjoint reticulation cycles.

💡 Research Summary

The paper addresses a long‑standing source of confusion in phylogenetic network research: the existence of four closely related but not identical concepts that have all been called “galled trees.” The authors first collect the precise definitions that appear in the literature. The original galled tree (as introduced in the early 1990s) requires that every reticulation vertex belongs to a cycle that is completely isolated from all other cycles—no vertex or edge may be shared. Level‑1 networks are defined graph‑theoretically as networks in which each biconnected component contains at most one cycle; this allows cycles to share vertices but not necessarily edges. Nested networks with nesting depth 1 (sometimes called “1‑nested” networks) permit cycles to be nested inside one another, but the nesting depth cannot exceed one, which effectively forbids any edge from participating in more than one cycle. Finally, networks with arc‑disjoint reticulation cycles impose the condition that the arcs (directed edges) belonging to different reticulation cycles are pairwise disjoint, while vertices may still be shared.

The core contribution of the paper is a rigorous set of inclusion relationships among these four families. The authors prove four main theorems: (1) Every original galled tree is simultaneously a level‑1 network and an arc‑disjoint network; thus the original definition is the strongest and sits at the intersection of the other three families. (2) Level‑1 networks are strictly broader than original galled trees; they may contain cycles that share vertices, and consequently some level‑1 networks have overlapping arcs and therefore are not arc‑disjoint. (3) 1‑nested networks are a proper subset of level‑1 networks; the nesting depth restriction guarantees that no arc can belong to two cycles, which makes every 1‑nested network automatically arc‑disjoint. (4) The class of arc‑disjoint networks coincides exactly with the intersection of level‑1 networks and original galled trees. In other words, a network is arc‑disjoint if and only if it is both level‑1 and satisfies the original isolation condition.

To establish these results, the authors introduce the notion of “reticulation‑visibility,” which captures the idea that each reticulation vertex can be uniquely identified by at least one directed path from the root. Using this concept, they construct explicit counter‑examples that separate the classes (e.g., a level‑1 network where two cycles share a vertex but not an arc, showing that it is not a galled tree) and constructive proofs that demonstrate inclusion (e.g., any 1‑nested network can be transformed into an arc‑disjoint network without altering its topology).

Beyond the theoretical taxonomy, the paper presents an empirical evaluation on twelve published phylogenetic datasets spanning plants, fungi, and bacteria. For each dataset the authors test whether the network inferred from the data satisfies each of the four definitions. The majority of cases conform to the original galled‑tree definition, indicating that real evolutionary histories often involve isolated reticulation events. However, two datasets require the broader level‑1 model because their inferred networks contain cycles that share vertices. This empirical observation underscores the practical importance of understanding the precise relationships among the definitions: researchers must choose the model that matches the biological reality of their data.

The authors also discuss algorithmic implications. For networks that are arc‑disjoint (hence original galled trees), polynomial‑time reconstruction algorithms are known, and the paper references existing linear‑time methods for checking the galled‑tree property. In contrast, the general level‑1 reconstruction problem is NP‑hard, reflecting the added combinatorial complexity when cycles may share vertices. Consequently, the choice of definition directly influences computational feasibility.

In the concluding section, the paper outlines future directions. One line of work is the development of efficient algorithms that operate on the intermediate class of 1‑nested networks, exploiting the fact that they are arc‑disjoint yet allow a limited form of nesting. Another direction is the design of hybrid models that combine features of level‑1 and nesting‑depth constraints to capture more complex reticulation patterns observed in large genomic datasets. Finally, the authors advocate for software tools that can automatically classify a given network into one of the four families, visualise the inclusion hierarchy, and suggest the most appropriate reconstruction algorithm.

Overall, the paper provides a clear, mathematically rigorous map of the landscape of “galled‑tree” concepts, resolves ambiguities that have persisted in the literature, and offers concrete guidance for both theoretical work and practical phylogenetic analysis.
