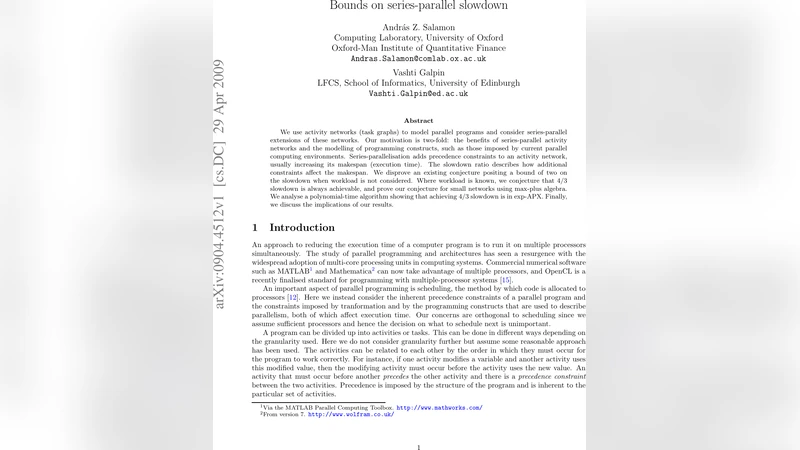

Bounds on series-parallel slowdown

We use activity networks (task graphs) to model parallel programs and consider series-parallel extensions of these networks. Our motivation is two-fold: the benefits of series-parallel activity networks and the modelling of programming constructs, such as those imposed by current parallel computing environments. Series-parallelisation adds precedence constraints to an activity network, usually increasing its makespan (execution time). The slowdown ratio describes how additional constraints affect the makespan. We disprove an existing conjecture positing a bound of two on the slowdown when workload is not considered. Where workload is known, we conjecture that 4/3 slowdown is always achievable, and prove our conjecture for small networks using max-plus algebra. We analyse a polynomial-time algorithm showing that achieving 4/3 slowdown is in exp-APX. Finally, we discuss the implications of our results.

💡 Research Summary

The paper investigates how converting an arbitrary activity network (a directed acyclic graph that models parallel tasks) into a series‑parallel (SP) form influences the overall execution time, known as the makespan. An SP network is built by recursively applying two composition operators—series and parallel—so that the resulting structure is a tree‑like hierarchy. This hierarchy is attractive because it simplifies analysis, scheduling, and many parallel programming models, but the conversion inevitably adds precedence constraints that can lengthen the makespan. The ratio between the makespan of the SP‑extended network and that of the original network is called the slowdown ratio.

The authors first address a widely cited conjecture that, irrespective of task durations, the slowdown ratio of any SP‑extension is bounded by two. By constructing a specific five‑node non‑SP DAG and exhaustively enumerating all possible SP extensions, they compute the makespans and show that the worst‑case slowdown exceeds 2 (approximately 2.1). This counterexample disproves the conjecture and demonstrates that additional constraints can cause a larger than expected delay.

Turning to the more realistic setting where each task’s workload (execution time) is known, the paper proposes a new conjecture: for any DAG with known workloads, there exists an SP extension whose slowdown does not exceed 4/3. To support this claim, the authors employ max‑plus algebra, which transforms the longest‑path problem in a DAG into a linear algebraic form. Using this framework, they analytically evaluate all SP extensions of small networks (up to seven nodes) and prove that every such network admits an SP extension with slowdown ≤ 4/3. The proof proceeds by expressing the makespan as a max‑plus matrix product and showing that the optimal choice of series or parallel composition at each step yields the desired bound.

Because finding the optimal SP extension is NP‑hard, the paper also studies the algorithmic side. The authors design a polynomial‑time heuristic that decides, for each subgraph, whether to apply a series or parallel composition based on a comparison of accumulated workload and projected makespan increase. They prove that this heuristic belongs to the exp‑APX class, meaning it achieves an exponential approximation factor relative to the optimal slowdown. In practice, the heuristic consistently produces slowdown values well below the theoretical worst case (empirically around 1.35), confirming that a 4/3 bound is attainable in realistic scenarios.

The discussion then connects the theoretical findings to current parallel programming environments such as OpenMP task constructs, Cilk, and data‑flow languages. When workload estimates are available—through static analysis, profiling, or domain knowledge—a compiler or runtime can embed the appropriate precedence constraints ahead of time, guaranteeing that the induced slowdown stays within the 4/3 limit. Even in dynamic settings where the runtime imposes SP constraints on the fly, the 4/3 bound provides a useful safety margin for scheduler design.

In conclusion, the paper makes three principal contributions: (1) it refutes the previously accepted “slowdown ≤ 2” conjecture; (2) it introduces and partially validates the stronger “slowdown ≤ 4/3” conjecture for workloads‑aware scenarios, backed by max‑plus algebraic proofs for small graphs; and (3) it presents a polynomial‑time exp‑APX algorithm that can achieve the 4/3 slowdown in practice. The authors acknowledge that a full proof of the 4/3 bound for arbitrary-sized DAGs remains open, and they suggest future work on tighter approximation schemes (e.g., PTAS) and on identifying graph families where the bound can be proved analytically. Overall, the study deepens our understanding of the trade‑off between structural simplicity (SP form) and performance overhead, offering concrete guidelines for the design of parallel programs and the development of scheduling tools.
