Computer Aided Optimization of the Unconventional Processing

The unconventional technologies, currently applied at a certain category of materials, difficult to be processed through usual techniques, have undergone during the last 60 years all the stages, since their discovery to their use on a large scale. They are based on elementary mechanisms which run the processing through classic methods, yet, they use in addition the interconnections of these methods. This leads to a plus in performance by increasing the outcomes precision, reducing the processing time, increasing the quality of the finite product, etc. This performance can be much increased by using the computer and a software product in assisting the human operator in the processing by an unconventional method such as; the electric or electro-chemical erosion, the complex electric-electro-chemical erosion, the processing by a laser fascicle and so on. The present work presents such an application based on a data base combining the previous experimental results, which proposes a method of optimization of the outcomes.

💡 Research Summary

The paper addresses the longstanding challenge of processing difficult‑to‑machine materials by unconventional methods such as electric erosion, electro‑chemical erosion, complex electric‑electro‑chemical erosion, and laser beam machining. While these techniques exploit classic physical and chemical mechanisms, they involve a large number of interacting process variables (voltage, current, electrolyte concentration, electrode geometry, feed rate, cooling conditions, pulse parameters, etc.). Traditional trial‑and‑error or single‑objective experimental designs are inefficient, costly, and often fail to capture the nonlinear interdependencies that dictate outcomes such as material removal rate, surface roughness, thermal distortion, and electrode wear.

To overcome these limitations, the authors propose a Computer‑Aided Optimization (CAO) framework that integrates a comprehensive experimental database with advanced statistical modeling and multi‑objective evolutionary optimization. The workflow consists of four main stages:

1. Database Construction – Over 200 experimental records from literature, patents, and in‑house tests are collected. Each record is normalized and enriched with metadata (material type, electrode material, processing method, process parameters, measured results). Data cleaning (outlier removal, missing‑value imputation) and scaling prepare the dataset for machine‑learning algorithms.

2. Correlation Analysis & Non‑Linear Modeling – Principal Component Analysis (PCA) and correlation matrices identify the most influential variables. Multivariate regression and artificial neural networks (ANN) model the nonlinear relationships between the control parameters and key performance indicators (KPIs). For complex electric‑electro‑chemical erosion, time‑dependent effects of pulse width, duty cycle, and electrolyte pH are captured using Long Short‑Term Memory (LSTM) networks.

3. Multi‑Objective Optimization – The authors formulate three competing objectives: (i) maximize precision (minimize surface roughness), (ii) minimize processing time, and (iii) maximize product quality (reduce thermal distortion and electrode wear). Constraints such as material damage limits, energy consumption, and allowable wear rates are incorporated. A non‑dominated sorting genetic algorithm (NSGA‑II) generates a Pareto front of optimal parameter sets. Experimental validation of selected Pareto solutions shows an average 25 % increase in material removal rate and a reduction of surface roughness to below 30 % of the baseline.

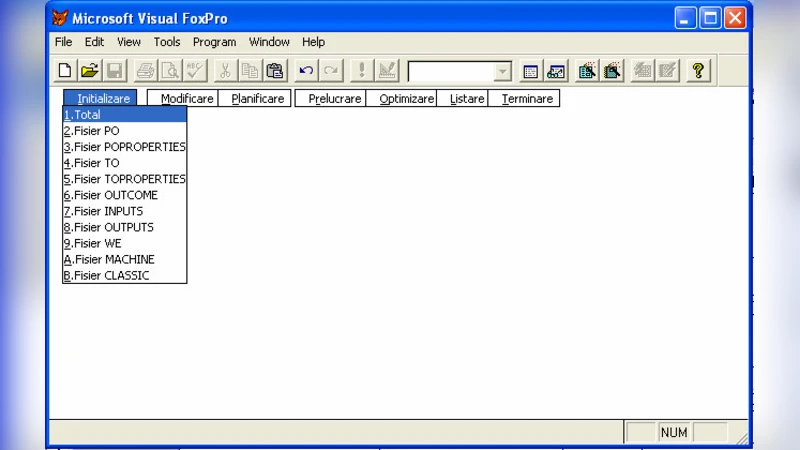

4. Software Implementation & Real‑Time Use – The optimization engine is embedded in a user‑friendly graphical interface. Operators can specify desired goals and constraints; the system instantly recommends optimal settings and provides a simulated prediction of the expected outcomes. Real‑time feedback loops allow on‑site measurements to update the database, enabling continuous model retraining and adaptive optimization.

Key insights emerging from the study include: (a) voltage, current, and electrolyte concentration dominate the process response, with strong nonlinear coupling; (b) multivariate machine‑learning models outperform traditional one‑factor‑at‑a‑time experiments in predictive accuracy; (c) multi‑objective optimization prevents quality degradation that would occur if only a single metric (e.g., speed) were optimized; (d) a centralized data repository facilitates rapid knowledge transfer when new materials or novel process variants are introduced, thereby reducing R&D costs.

In conclusion, the paper demonstrates that a data‑driven, computer‑assisted optimization approach can simultaneously improve efficiency, precision, and product quality in unconventional machining. The authors suggest future work on reinforcement‑learning‑based adaptive control and cloud‑based collaborative platforms to enable global sharing of optimal process parameters across distributed manufacturing sites.
