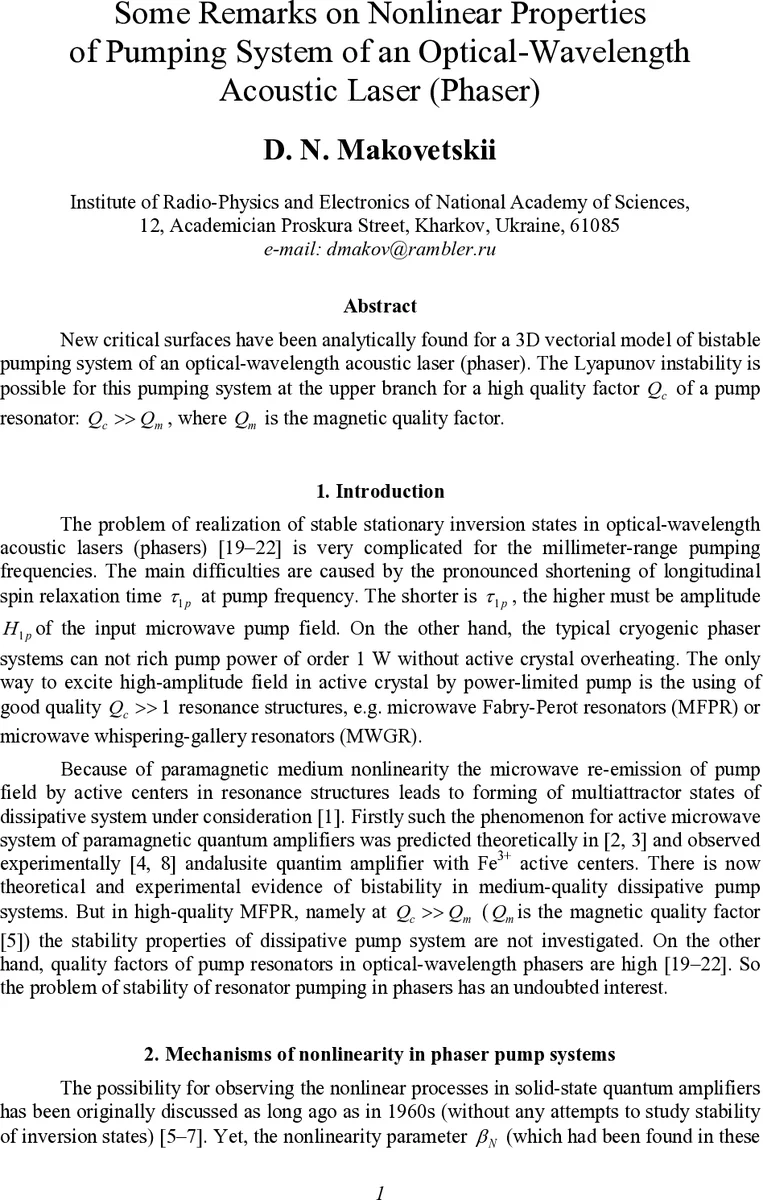

Some Remarks on Nonlinear Properties of Pumping System of an Optical-Wavelength Acoustic Laser (Phaser)

New critical surfaces have been analytically found for a 3D vectorial model of bistable pumping system of an optical-wavelength acoustic laser (phaser). The Lyapunov instability is possible for this pumping system at the upper branch for a high quality factor Qc of a pump resonator: Qc/Qm » 1, where Qm is the magnetic quality factor. This instability is of great interest for interpretaion of some experimental data on the optical-wavelength ruby phaser (see our previous papers arXiv:cond-mat/0303188, arXiv:cond-mat/0402640, arXiv:0704.0123, arXiv:0901.0449).

💡 Research Summary

The paper investigates the nonlinear dynamics of the pumping system in an optical‑wavelength acoustic laser (phaser) with particular emphasis on the role of high‑Q pump resonators. Starting from the Maxwell‑Bloch equations for a three‑level paramagnetic medium, the author reduces the problem to a set of flow equations for a five‑dimensional order‑parameter vector, controlled by up to seven external parameters (including the nonlinearity parameter ξ, the ratio of the cavity quality factor Qc to the magnetic quality factor Qm, detuning Δ, and magnetic field offset h).

Two distinct mechanisms of nonlinearity are identified. The classical saturation‑based nonlinearity (parameter Nβ) requires deep spin‑population saturation, which is impractical in dilute paramagnets at millimetre‑wave pump frequencies. In contrast, a feedback‑driven nonlinearity emerges when the photon lifetime in the resonator is comparable to the transverse spin relaxation time. This gives rise to a dimensionless parameter ξ = (m_c Qc / Q0)·(τc/τ2)², which can exceed unity even for modest pump powers. When ξ > 1, strong nonlinear effects such as bistability, self‑modulation, and hysteresis appear without the need for strong saturation.

To make the problem analytically tractable, the author applies an adiabatic elimination of the fast variables and uses catastrophe theory to reduce the five‑dimensional system to a scalar (one‑dimensional) model. The resulting scalar equation (4) contains a nonlinear term Ψ that depends on the pump power P and the control parameters. Stationary solutions are obtained as two single‑valued inverse functions D₁(P) and D₂(P) (Eq. 5). The Lyapunov exponent λ (Eq. 6) determines the stability of each branch; λ > 0 signals instability.

A critical surface in the multidimensional control‑parameter space is derived analytically (Eqs. 7‑8) by setting λ = 0. This surface separates regions of monostability (single stationary state) from bistability (two stable nodes separated by a saddle). The surface is a saddle‑node bifurcation manifold; crossing it creates or annihilates a pair of fixed points. Importantly, the product ξ·(Qc/Qm) appears as a key factor: for large values the critical surface becomes very thin, and the upper (high‑inversion) branch approaches the separatrix. Consequently, even small perturbations of the control parameters can push the system from the high‑inversion attractor to the low‑inversion (or even absorbing) state. This mechanism provides a theoretical explanation for experimentally observed abrupt loss of inversion when pump power is reduced or when the resonator is detuned.

The author then incorporates the wave equation for the probe (optical‑wavelength) signal (Eq. 9) and derives an explicit expression for the inversion ratio K (Eq. 10). By slicing the critical surface with hyperplanes defined by fixed values of Δ, h, and ξ, the paper explores how the inversion‑ratio curves change. When the pump frequency is exactly tuned to the cavity mode (h = 0), the bistable region expands dramatically with increasing Qc, but the high‑inversion branch remains close to the separatrix, making it fragile. For non‑zero detuning (h ≠ 0), the bistable region is narrower, and an isolated low‑inversion branch (an “isola”) persists, which is robust against perturbations.

The key practical conclusion is that simply increasing the resonator quality factor Qc does not guarantee a stable inversion. Instead, one must keep the combined parameter ξ·(Qc/Qm) away from the critical surface. This can be achieved by adjusting the pump detuning, the magnetic field offset, or the filling factor of the resonator. The analytical critical‑surface formulas provide design guidelines for optimizing phaser pump cavities to achieve high inversion with minimal risk of Lyapunov instability.

Overall, the work delivers a comprehensive analytical framework for the nonlinear dynamics of phaser pump systems, identifies a new feedback‑driven nonlinearity, derives explicit critical surfaces, and clarifies the conditions under which the upper inversion branch becomes unstable. These results are directly relevant to the design of high‑Q microwave resonators for optical‑wavelength acoustic lasers and may also inform the broader class of paramagnetic microwave devices where spin‑photon feedback plays a dominant role.
