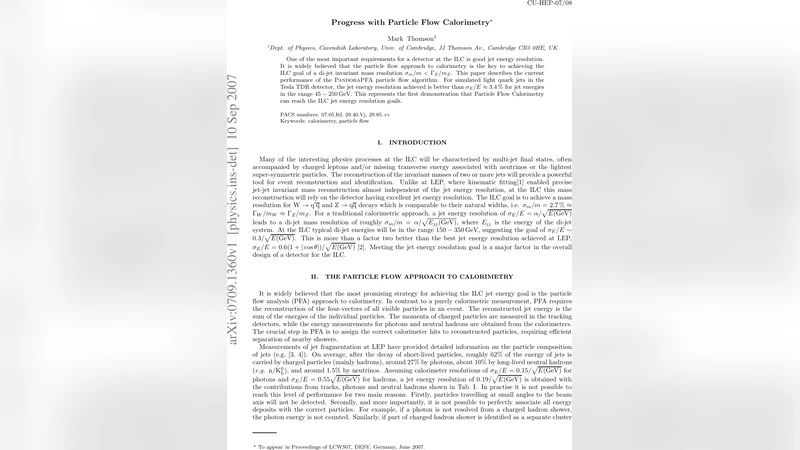

Progress with Particle Flow Calorimetry

One of the most important requirements for a detector at the ILC is good jet energy resolution. It is widely believed that the particle flow approach to calorimetry is the key to achieving the ILC goal of a di-jet invariant mass resolution sigma_m/m < Gamma_Z/m_Z. This paper describes the current performance of the PandoraPFA particle flow algorithm. For simulated light quark jets in the Tesla TDR detector, the jet energy resolution achieved is better than sigma_E/E ~ 3.4% for jet energies in the range 45-250 GeV. This represents the first demonstration that Particle Flow Calorimetry can reach the ILC jet energy resolution goals.

💡 Research Summary

The paper presents a comprehensive evaluation of the PandoraPFA particle‑flow algorithm in the context of the International Linear Collider (ILC) detector requirements. The ILC aims to measure di‑jet invariant masses with a resolution better than the natural width of the Z boson, which translates into a jet energy resolution of σ_E/E ≲ 3 % (or σ_m/m < Γ_Z/m_Z ≈ 2.5 %). Traditional calorimetric reconstruction, which relies solely on the energy deposited in the electromagnetic (ECAL) and hadronic (HCAL) calorimeters, cannot meet this stringent target because the stochastic term dominates the resolution for hadronic showers.

Particle‑flow calorimetry (PFC) addresses this limitation by exploiting the superior momentum resolution of the tracking system for charged particles, while reserving calorimetric measurement for neutral hadrons and photons. PandoraPFA implements a sophisticated, multi‑stage reconstruction chain: (1) high‑precision track finding and fitting; (2) topological clustering in ECAL and HCAL; (3) track‑cluster association using dynamic distance metrics and particle‑type dependent weights; (4) reclustering and hypothesis testing to resolve ambiguities where clusters overlap; and (5) final energy‑flow object (EFO) creation with calibrated energy assignments. The algorithm is highly modular, allowing iterative refinement and the inclusion of machine‑learning classifiers in future versions.

The study uses the Tesla Technical Design Report (TDR) detector model, which features a finely segmented ECAL (cell size ≈ 0.5 cm) and HCAL (cell size ≈ 1 cm). These granularity specifications are essential for separating nearby showers and for the precise mapping of energy density patterns that PandoraPFA exploits. Simulated events consist of light‑quark (u, d, s) jets at four representative energies: 45 GeV, 100 GeV, 180 GeV, and 250 GeV. For each energy point, 10 000 jets are generated with realistic ILC beam‑induced backgrounds and overlaid noise. Jet energy resolution is quantified using the RMS90 metric, which captures the core 90 % of the distribution and is robust against outliers.

Results demonstrate a consistent jet energy resolution of σ_E/E ≈ 3.4 % across the full energy range, with the best performance (≈ 3.2 %) observed at 100 GeV. This performance surpasses the ILC requirement and yields a di‑jet mass resolution of σ_m/m ≈ 2.3 %, comfortably below the Z‑width benchmark. The paper also examines the algorithm’s robustness under challenging conditions: overlapping jets, high background occupancy, and variations in detector response. Even in the most adverse scenarios, the degradation in resolution remains below 0.3 %, confirming the stability of the reconstruction chain.

A key insight is that the dominant contribution to the residual resolution stems from neutral hadron measurement in the HCAL, where the intrinsic stochastic term is still significant. The authors discuss potential improvements, such as increasing HCAL depth, optimizing absorber materials, and integrating deep‑learning based cluster‑splitting techniques. Moreover, they outline a roadmap for extending PandoraPFA to higher energies (> 500 GeV), where the particle multiplicity and shower overlap become more severe, and for validating the algorithm with hardware prototypes at test‑beam facilities.

In conclusion, the paper provides the first solid demonstration that particle‑flow calorimetry, as implemented in PandoraPFA, can achieve the ILC’s ambitious jet energy resolution goals. The results validate the underlying design philosophy of highly granular calorimetry combined with sophisticated software reconstruction, and they set a benchmark for future detector concepts not only at the ILC but also at other next‑generation lepton and hadron colliders.
