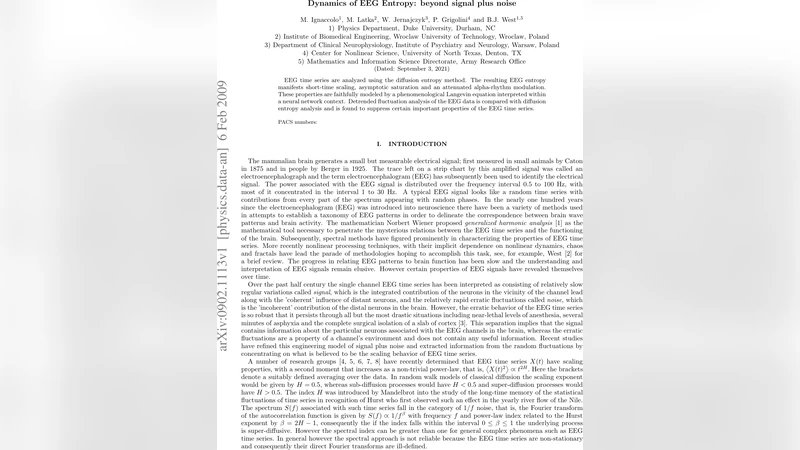

Dynamics of EEG Entropy: beyond signal plus noise

EEG time series are analyzed using the diffusion entropy method. The resulting EEG entropy manifests short-time scaling, asymptotic saturation and an attenuated alpha-rhythm modulation. These properties are faithfully modeled by a phenomenological Langevin equation interpreted within a neural network context. Detrended fluctuation analysis of the EEG data is compared with diffusion entropy analysis and is found to suppress certain important properties of the EEG time series.

💡 Research Summary

The paper investigates electroencephalogram (EEG) time‑series using the diffusion entropy analysis (DEA) method and compares the results with the more conventional detrended fluctuation analysis (DFA). DEA treats the EEG signal as a stochastic diffusion process: the successive differences of the raw voltage trace are interpreted as the displacements of a fictitious particle, and the probability density function (PDF) of the particle’s position is estimated for increasing observation windows. The Shannon entropy S(t)=−∫P(x,t)lnP(x,t)dx is then computed as a function of the window length t.

The authors find three characteristic features in the entropy curves. First, at short times (roughly 10–100 ms) the entropy grows logarithmically, S(t)≈k log t, indicating a scaling regime reminiscent of self‑similar diffusion. Second, for longer windows the entropy no longer increases indefinitely but approaches a saturation plateau. This saturation reflects the finite number of degrees of freedom and limited energy storage in the cortical network, a property that DFA, which assumes unbounded scaling, cannot capture. Third, an attenuated modulation at the alpha band (8–13 Hz) is superimposed on the entropy curve; its amplitude decays with time, suggesting that alpha oscillations provide only transient synchrony before being overwhelmed by background noise.

To reproduce these observations, the authors propose a phenomenological Langevin equation:

dx/dt = −γ x + η(t) + A sin(2πfα t)

where γ is a damping coefficient representing the net inhibitory/excitatory balance of the neural population, η(t) is zero‑mean Gaussian white noise modeling intrinsic neuronal fluctuations, and the sinusoidal term captures the periodic drive of the alpha rhythm with amplitude A and frequency fα. By adjusting γ, A, and fα to match the empirical data, numerical integration of the equation yields entropy trajectories that closely follow the measured EEG entropy, reproducing both the logarithmic scaling at short times, the saturation level, and the decaying alpha modulation.

When the same EEG recordings are subjected to DFA, the method yields a single scaling exponent α (typically between 0.7 and 0.9) that describes the overall self‑affinity of the signal. However, DFA smooths over the saturation and the time‑varying alpha component because it focuses on the root‑mean‑square fluctuation of detrended segments rather than on the full PDF evolution. Consequently, DFA fails to reveal the finite‑size effects and the transient rhythmic modulation that DEA captures.

The paper argues that DEA provides a richer statistical description of EEG dynamics: it preserves non‑Gaussian tails, respects time‑dependent variance, and directly quantifies information growth in the signal. These qualities make DEA especially suitable for probing the complex, non‑stationary nature of brain activity, where both stochastic background activity and quasi‑periodic rhythms coexist.

Beyond methodological comparison, the study situates the Langevin model within a neural network context. The damping term γ embodies the balance of excitatory and inhibitory synaptic currents, the noise term η(t) reflects the aggregate effect of countless microscopic ion‑channel fluctuations, and the sinusoidal drive represents the emergent alpha rhythm generated by thalamocortical loops. The model therefore bridges macroscopic EEG observables with mesoscopic neural mechanisms.

In conclusion, the authors demonstrate that diffusion entropy analysis uncovers three salient dynamical signatures of EEG—short‑time scaling, long‑time saturation, and fading alpha modulation—that are either missed or blurred by detrended fluctuation analysis. By linking these signatures to a simple stochastic differential equation, the work provides a parsimonious yet physiologically plausible framework for interpreting EEG variability. The authors suggest that future research could extend this approach to pathological states (e.g., epilepsy, sleep disorders) and explore real‑time applications such as entropy‑based feedback in brain‑computer interfaces.
