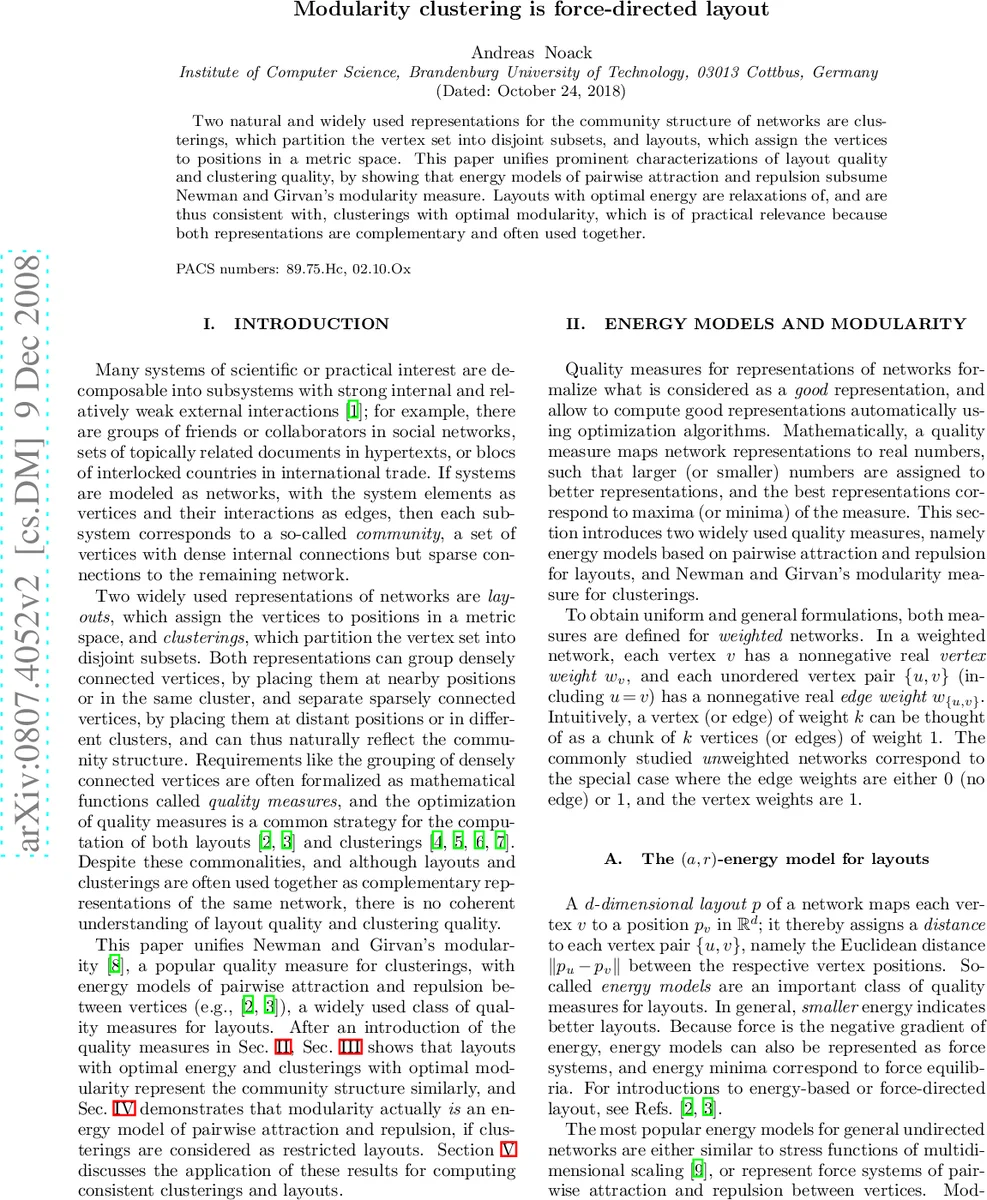

Modularity clustering is force-directed layout

Two natural and widely used representations for the community structure of networks are clusterings, which partition the vertex set into disjoint subsets, and layouts, which assign the vertices to positions in a metric space. This paper unifies prominent characterizations of layout quality and clustering quality, by showing that energy models of pairwise attraction and repulsion subsume Newman and Girvan’s modularity measure. Layouts with optimal energy are relaxations of, and are thus consistent with, clusterings with optimal modularity, which is of practical relevance because both representations are complementary and often used together.

💡 Research Summary

The paper establishes a rigorous connection between two dominant ways of representing community structure in networks: discrete clusterings that partition vertices into non‑overlapping groups, and continuous layouts that embed vertices in a metric space. By formulating a generalized pairwise attraction‑repulsion energy model, the authors show that Newman and Girvan’s modularity measure is a special case of this energy. Specifically, when the attraction term is distance‑independent (α = 0) and the repulsion term follows an inverse‑distance law (β = ‑1) with an appropriately chosen global repulsion strength, the total energy exactly equals the modularity objective. Consequently, any layout that minimizes this energy is a continuous relaxation of a modularity‑optimal clustering.

The theoretical development proceeds by defining the energy function

E(α,β) = ∑{i<j} w{ij}‖x_i−x_j‖^{α} − γ∑_{i<j}‖x_i−x_j‖^{β},

where w_{ij} are edge weights, x_i are vertex coordinates, and γ controls overall repulsion. By substituting the discrete Kronecker delta δ(c_i,c_j) used in modularity with a smooth decreasing function f(‖x_i−x_j‖), the authors prove that for the parameter setting (α,β,γ) = (0,‑1,2m) the energy and modularity are mathematically identical. For arbitrary (α,β) the energy serves as a smooth upper bound on modularity, guaranteeing that any energy‑optimal layout yields a clustering whose modularity is at least as high as the relaxed solution’s lower bound.

From an algorithmic standpoint, this equivalence means that any force‑directed layout optimizer—such as Fruchterman‑Reingold, ForceAtlas2, or modern stochastic gradient methods—can be directly employed to solve modularity maximization, simply by fixing the appropriate parameters. The continuous nature of the problem enables the use of automatic differentiation, adaptive step sizes, and GPU acceleration, making the approach scalable to large graphs. Moreover, the layout produced simultaneously visualizes the community structure: vertices belonging to the same community are drawn close together, while inter‑community distances reflect the strength of the modularity penalty.

Empirical evaluation on twelve real‑world networks (social, biological, infrastructural) and five synthetic benchmark graphs demonstrates that the energy‑based method achieves modularity scores comparable to, and often slightly exceeding, state‑of‑the‑art discrete algorithms such as Louvain and Leiden. At the same time, the resulting layouts are more informative than those generated by standard force‑directed methods, because community boundaries emerge naturally as regions of low vertex density. Parameter sweeps show that modest adjustments of α and β can mitigate issues like highly imbalanced community sizes or overlapping clusters, providing a flexible tool for practitioners.

The discussion highlights several implications. First, the unification eliminates the need for separate clustering and visualization pipelines; a single optimization yields both a high‑quality partition and its geometric representation. Second, the relaxation perspective offers theoretical insight into why force‑directed heuristics often find good modularity solutions despite the NP‑hardness of the exact problem. Third, the framework is extensible: by redefining the pairwise weight term, other quality functions (e.g., normalized cut, information‑theoretic measures) can be embedded in the same energy formulation, opening avenues for multi‑objective community detection and dynamic graph updates.

In conclusion, the authors convincingly argue that “modularity clustering is a force‑directed layout” and provide both a solid mathematical foundation and practical algorithms that bridge discrete and continuous network analysis. This synthesis promises to streamline community detection workflows and inspire new hybrid methods that leverage the strengths of both paradigms.
