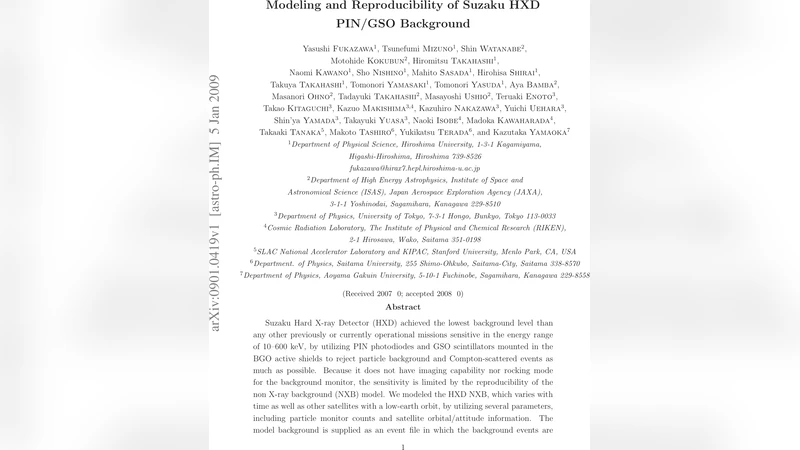

Modeling and Reproducibility of Suzaku HXD PIN/GSO Background

Suzaku Hard X-ray Detector (HXD) achieved the lowest background level than any other previously or currently operational missions sensitive in the energy range of 10–600 keV, by utilizing PIN photodiodes and GSO scintillators mounted in the BGO active shields to reject particle background and Compton-scattered events as much as possible. Because it does not have imaging capability nor rocking mode for the background monitor, the sensitivity is limited by the reproducibility of the non X-ray background (NXB) model. We modeled the HXD NXB, which varies with time as well as other satellites with a low-earth orbit, by utilizing several parameters, including particle monitor counts and satellite orbital/attitude information. The model background is supplied as an event file in which the background events are generated by random numbers, and can be analyzed in the same way as the real data. The reproducibility of the NXB model depends on the event selection criteria (such as cut-off rigidity and energy band) and the integration time, and the 1sigma systematic error is estimated to be less than 3% (PIN 15–40 keV) and 1% (GSO 50–100 keV) for more than 10 ksec exposure.

💡 Research Summary

The paper presents a comprehensive methodology for modeling and evaluating the reproducibility of the non‑X‑ray background (NXB) of the Suzaku Hard X‑ray Detector (HXD), which operates in the 10–600 keV energy range. Suzaku HXD achieves an unprecedentedly low background by combining PIN photodiodes (effective at 10–70 keV) and GSO scintillators (effective at 40–600 keV) with thick BGO active shields that suppress charged particles and Compton‑scattered photons. Because the instrument lacks imaging capability and a rocking mode for direct background monitoring, scientific sensitivity is limited by how accurately the NXB can be modeled and subtracted.

The authors first identify the principal drivers of NXB variability: (1) the geomagnetic cut‑off rigidity (COR), which modulates the flux of cosmic‑ray particles reaching the satellite; (2) orbital position (latitude, longitude, altitude) that determines exposure to high‑radiation regions such as the South Atlantic Anomaly and polar “golden” zones; and (3) long‑term changes in the detector and shield themselves, including temperature, bias voltage drifts, and activation of BGO material by trapped particles. These factors cause both slow trends and rapid fluctuations in the background count rate.

To capture this complexity, the authors employ real‑time data from two on‑board particle monitors: a low‑voltage PIN‑LM and a high‑voltage GSO‑LM. These monitor counts are combined with precise orbital and attitude information to construct a multivariate regression model. The regression coefficients quantify the sensitivity of the background to each environmental parameter, allowing the model to predict the expected background count rate as a function of time.

Because the background is intrinsically stochastic, the deterministic prediction is supplemented with a Poisson‑based randomization step. For each time bin, the model draws a random number of events from a Poisson distribution whose mean equals the predicted count rate. Each simulated event is assigned an energy (drawn from the empirically derived spectral shape for that detector) and a timestamp, producing a synthetic event file that mirrors the format of real Suzaku HXD data. This file can be processed through the standard HXD analysis pipeline (screening, GTI selection, spectral extraction, etc.), ensuring that systematic effects introduced by the background model are treated identically to those in actual observations.

The performance of the model is validated using a set of “blank‑sky” observations that contain no significant astrophysical source. For exposures longer than 10 ks, the 1σ systematic uncertainty of the model is found to be less than 3 % in the PIN band (15–40 keV) and less than 1 % in the GSO band (50–100 keV). These figures represent a substantial improvement over previous missions (e.g., INTEGRAL, BeppoSAX) and confirm that Suzaku HXD can achieve high‑precision measurements even in the hard X‑ray regime where background dominates.

Beyond the immediate application to Suzaku, the paper discusses broader implications. By quantifying how COR, orbital position, and instrument conditions affect the background, observers can optimize scheduling (e.g., avoid low‑COR intervals or high‑radiation zones) to minimize background contributions. The synthetic event files also enable realistic end‑to‑end simulations for proposal planning, sensitivity estimates, and systematic error budgeting.

In summary, the authors deliver a robust, data‑driven NXB model that integrates environmental monitoring, orbital dynamics, and statistical simulation. The model’s high reproducibility (sub‑percent level for GSO, few‑percent for PIN) and its delivery as a standard event file make it a practical tool for the Suzaku community and a template for background modeling in future low‑Earth‑orbit hard X‑ray missions.
