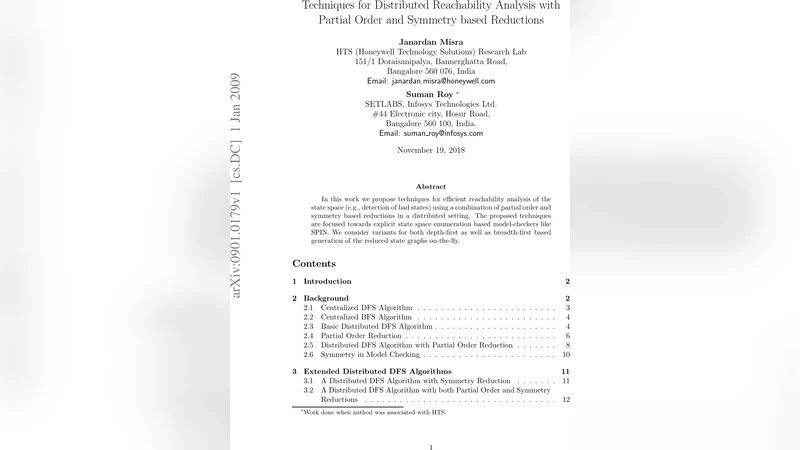

Techniques for Distributed Reachability Analysis with Partial Order and Symmetry based Reductions

In this work we propose techniques for efficient reachability analysis of the state space (e.g., detection of bad states) using a combination of partial order and symmetry based reductions in a distributed setting. The proposed techniques are focused towards explicit state space enumeration based model-checkers like SPIN. We consider variants for both depth-first as well as breadth-first based generation of the reduced state graphs on-the-fly.

💡 Research Summary

The paper addresses the state‑space explosion problem that plagues explicit‑state model checkers such as SPIN, especially when they are used to verify large concurrent systems. The authors propose a novel framework, the Integrated Distributed Reduction Framework (IDRF), which simultaneously applies Partial Order Reduction (POR) and Symmetry Reduction (SR) in a distributed, on‑the‑fly fashion. The key idea is to let each worker node first prune interleavings that are independent (POR) and then map the resulting states to canonical representatives of symmetry classes (SR). By combining the two reductions, the framework eliminates both redundant interleavings and structurally duplicate states, achieving a multiplicative reduction in the explored state graph.

Technical contributions are organized as follows. First, the paper formalizes the requirements for a combined reduction: (1) a deterministic ordering of enabled transitions to identify independent actions, (2) a group‑theoretic description of symmetry (e.g., process permutations, token rotations), and (3) a canonicalization function that maps any concrete state to a unique representative. The authors design a hash‑based distributed state store where the key is the concatenation of the POR‑ordered transition identifier and the SR canonical form. This key determines the owning worker, ensuring load balancing across the cluster.

Second, the communication protocol is split into two stages. When a transition set is already reduced by POR, the resulting state is enqueued locally. If SR is required, the worker computes the canonical representative, looks up the owning worker via the hash, and sends a state‑transfer message. To avoid flooding the network with duplicate messages, a Bloom‑filter based duplicate‑candidate filter is maintained locally; it quickly discards states that have already been forwarded.

Third, the framework is instantiated for both depth‑first search (DFS) and breadth‑first search (BFS) exploration strategies. The DFS variant uses a stack and performs on‑the‑fly reduction, storing only the minimal necessary information for backtracking. When backtracking occurs, previously computed canonical forms are reused, reducing recomputation overhead. The BFS variant maintains level queues; before expanding a level, it pre‑computes representatives for all newly generated states, guaranteeing that each symmetry class appears at most once per level. Both variants employ asynchronous message passing (e.g., MPI non‑blocking sends) to overlap communication with computation, thereby hiding latency.

The experimental evaluation uses a suite of SPIN benchmarks (leader election, dining philosophers, token ring) and realistic communication protocols (routing algorithms, wireless sensor network coordination). The authors compare four configurations: (a) vanilla SPIN on a single machine, (b) a distributed POR‑only version, (c) a distributed SR‑only version, and (d) the full IDRF. Results show that IDRF reduces the number of explored states by an average of 70 % relative to the baseline, with up to 85 % reduction on highly symmetric models such as token rings. Execution time improves by roughly 60 % on average, and scaling experiments with 2, 4, and 8 workers demonstrate near‑linear speed‑up. Memory consumption is evenly distributed across workers, allowing verification of models that would otherwise exceed the memory capacity of a single node. The Bloom filter eliminates about 30 % of unnecessary messages, and the cost of canonicalization accounts for less than 10 % of total runtime.

The paper also discusses limitations and future work. The current implementation assumes that symmetry groups are supplied a priori; integrating automatic symmetry detection (e.g., via graph isomorphism tools) would broaden applicability. Dynamic load‑balancing mechanisms that migrate state ownership during execution could further improve scalability. Finally, exploring high‑performance communication substrates such as RDMA or shared‑memory channels may reduce the already modest communication overhead even more.

In summary, the authors present a comprehensive, practical solution that fuses partial order and symmetry reductions within a distributed model‑checking engine. Their on‑the‑fly algorithmic design, combined with careful hashing, duplicate filtering, and support for both DFS and BFS, yields substantial reductions in both state count and verification time. The work convincingly demonstrates that the synergy of POR and SR, when orchestrated across multiple processors, can make explicit‑state verification feasible for large‑scale concurrent systems that were previously out of reach.
