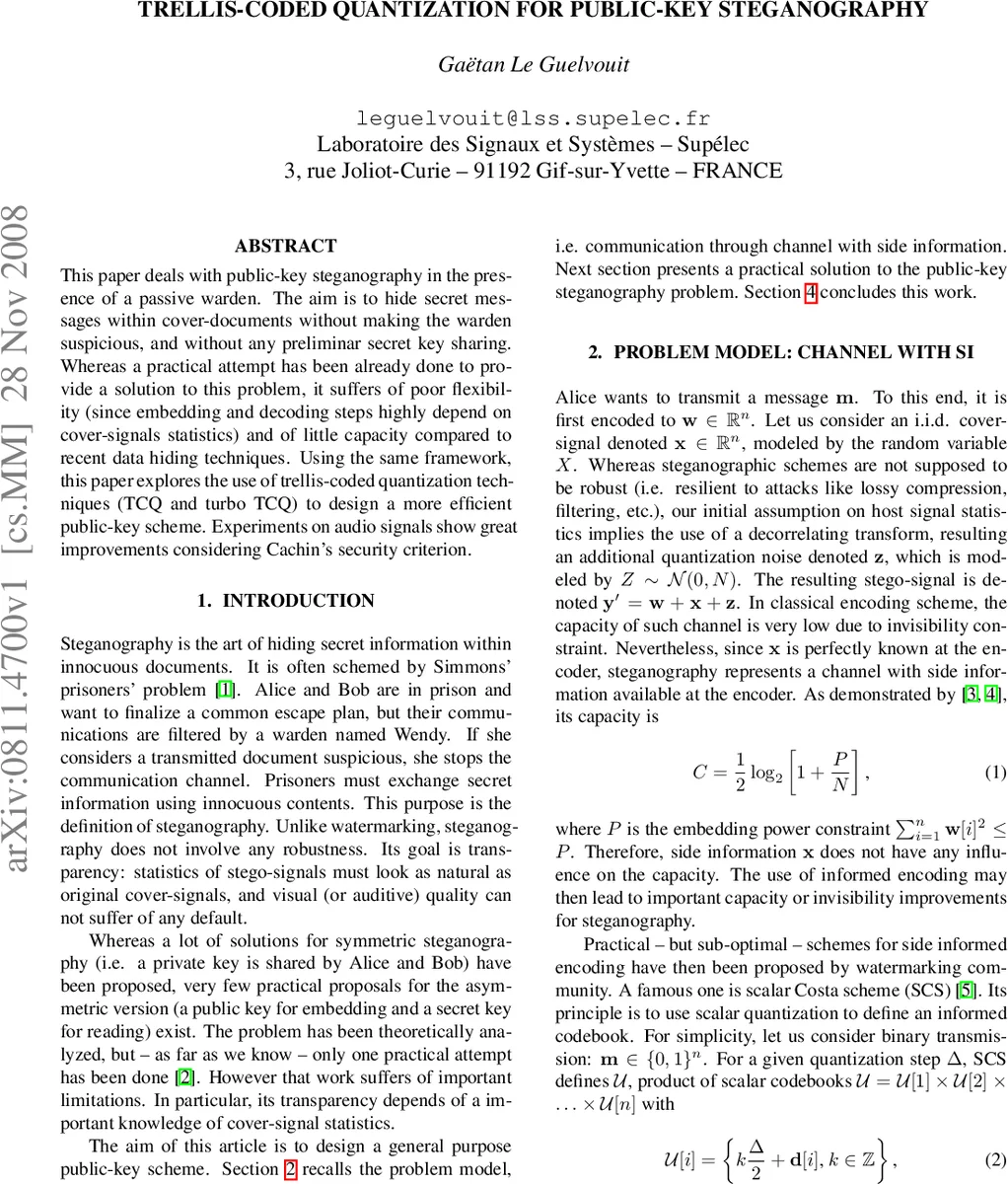

Trellis-coded quantization for public-key steganography

This paper deals with public-key steganography in the presence of a passive warden. The aim is to hide secret messages within cover-documents without making the warden suspicious, and without any preliminar secret key sharing. Whereas a practical attempt has been already done to provide a solution to this problem, it suffers of poor flexibility (since embedding and decoding steps highly depend on cover-signals statistics) and of little capacity compared to recent data hiding techniques. Using the same framework, this paper explores the use of trellis-coded quantization techniques (TCQ and turbo TCQ) to design a more efficient public-key scheme. Experiments on audio signals show great improvements considering Cachin’s security criterion.

💡 Research Summary

The paper addresses the problem of public‑key steganography in the presence of a passive warden, where Alice must embed secret data into cover documents without prior secret‑key exchange and without raising suspicion. Existing practical solutions, notably the framework proposed by Guillon et al., rely on the scalar Costa scheme (SCS) for both an initialization phase (embedding a temporary key) and a permanent phase (embedding the actual secret message). While functional, this approach suffers from two major drawbacks: (1) the initialization step depends heavily on the statistical distribution of the cover signal, requiring a compressor‑equalizer loop to flatten the probability density function (pdf) before embedding, which is cumbersome and fragile; (2) SCS’s regular quantization grid introduces noticeable statistical artifacts, limiting embedding capacity and forcing a high signal‑to‑noise ratio (P/N ≈ 14 dB) to achieve acceptable bit‑error rates.

To overcome these limitations, the authors propose to replace SCS with trellis‑coded quantization (TCQ) in the initialization phase and with turbo‑TCQ in the permanent phase. The key idea is to treat steganographic embedding as a “writing on dirty paper” problem, where the cover signal x is known perfectly at the encoder (side information). TCQ introduces a state‑dependent dither function o(s_i,m_i) and a transition function t(s_i,m_i) that generate pseudo‑random partitions of the quantization space. By using a Viterbi algorithm to select the optimal codeword u* from the state‑dependent sub‑codebook, the embedding signal w = α(u* − x) can be computed with α = P/(P+N), the same optimal scaling factor derived by Costa. Experiments with a 2⁹‑state trellis show that the resulting stego‑pdf matches the original cover pdf, eliminating the statistical artifacts observed with SCS. Moreover, the authors adopt an iterative “Miller‑style” adjustment to ensure that the Euclidean distance between the stego signal and its nearest codeword does not become smaller than that of the cover, thereby avoiding a detectable clue for the warden.

For the permanent phase, the paper introduces turbo‑TCQ, a recent source‑coding technique that couples two parallel TCQ trellises via interleaving. The posterior probabilities from one trellis serve as priors for the other, and the process iterates until convergence. This turbo structure yields a powerful dirty‑paper code: at an embedding rate of 1 bit per cover element, turbo‑TCQ achieves a 5 dB gain in signal‑to‑noise ratio compared with classical SCS, while preserving transparency because robustness is not a primary requirement in steganography.

Security is evaluated using Cachin’s information‑theoretic criterion, which measures the relative entropy D_KL(P_Y‖P_X) between cover and stego distributions. Two audio test signals—a smooth bass solo (“Jazz”) and a dense guitar track (“Heavy metal”)—are processed with MDCT, grouped into 32 sub‑bands over 10 windows, and assumed Laplacian. Both SCS and turbo‑TCQ are applied to embed random binary payloads. The results show that turbo‑TCQ reduces the relative entropy by roughly an order of magnitude relative to SCS at the same embedding rates, indicating a ten‑fold increase in ε‑security for high‑rate embedding.

In conclusion, the paper delivers a practical, statistically agnostic initialization scheme based on TCQ and a high‑capacity, highly secure permanent embedding scheme based on turbo‑TCQ. Compared with the earlier public‑key framework, the new design eliminates the need for cover‑dependent preprocessing, improves embedding efficiency, and substantially enhances security under Cachin’s model. The work opens avenues for further research on adaptive trellis designs, multi‑media extensions, and real‑time public‑key steganographic systems.
