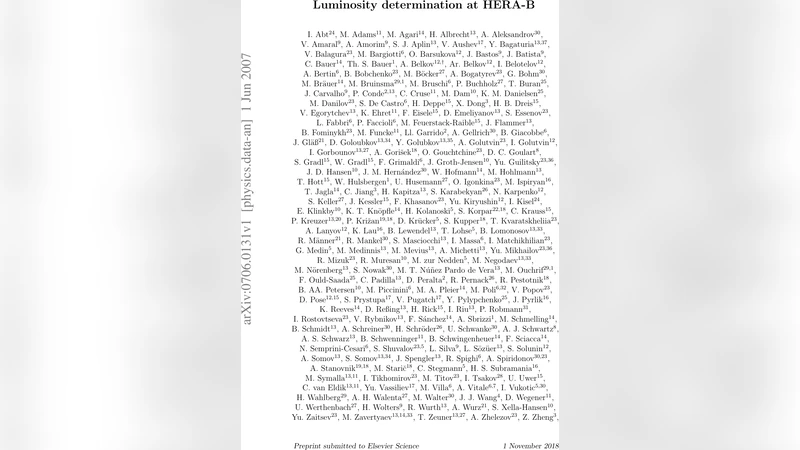

Luminosity determination at HERA-B

A detailed description of an original method used to measure the luminosity accumulated by the HERA-B experiment for a data sample taken during the 2002-2003 HERA running period is reported. We show that, with this method, a total luminosity measurement can be achieved with a typical precision, including overall systematic uncertainties, at a level of 5% or better. We also report evidence for the detection of delta-rays generated in the target and comment on the possible use of such delta rays to measure luminosity.

💡 Research Summary

The paper presents a comprehensive description of an original technique developed to determine the integrated luminosity for the HERA‑B experiment during the 2002‑2003 data‑taking period. The authors begin by emphasizing the central role of luminosity measurements in fixed‑target high‑energy experiments, where accurate cross‑section normalization is essential for testing theoretical models. Traditional luminosity determination relies on separate measurements of beam current, target thickness, and the interaction cross‑section, which together introduce sizable systematic uncertainties due to beam intensity fluctuations, target density non‑uniformities, and detector efficiency drifts.

To overcome these limitations, the authors introduce a dual‑signal approach that uses (1) non‑interaction (or “empty‑event”) counts and (2) detection of delta‑rays generated as high‑energy beam particles traverse the target material. Non‑interaction events are identified by a forward detector system that records beam particles that pass through the target without undergoing a hadronic interaction. Because the rate of such events is directly proportional to the number of incident beam particles, it provides a real‑time monitor of beam intensity that can be cross‑checked against conventional beam‑current monitors. The paper details the hardware configuration, timing logic, and background suppression techniques employed to isolate a clean sample of non‑interaction events.

Delta‑rays are secondary electrons knocked out of target atoms by the passing beam particles. Their production rate scales with the product of the number of target atoms and the number of beam particles, making them an independent probe of the effective target thickness and beam flux. The authors develop a dedicated reconstruction algorithm that exploits the characteristic energy‑loss pattern and trajectory curvature of delta‑rays in the tracking detectors. Using GEANT‑based Monte‑Carlo simulations, they quantify the detection efficiency, evaluate background contributions, and derive correction factors for various target thicknesses and beam energies.

Both auxiliary measurements are treated as independent observables with their own statistical and systematic error budgets. The authors adopt a Bayesian combination framework, assigning likelihood functions to each observable and integrating over nuisance parameters that describe detector efficiencies and calibration uncertainties. This statistical fusion yields a final luminosity estimate with a total relative uncertainty of better than 5 %, a significant improvement over the ≈10 % uncertainties typical of earlier HERA‑B analyses. The paper provides detailed tables of systematic contributions, showing that the dominant residual uncertainties arise from the delta‑ray detection efficiency and the absolute calibration of the beam‑current monitor.

In addition to the primary luminosity determination, the study reports the first experimental evidence for the detection of delta‑rays in the HERA‑B environment. The authors discuss how delta‑ray measurements could be developed into a standalone luminosity monitor, especially in scenarios where the beam intensity varies rapidly or where target density cannot be measured precisely. They outline a roadmap for future work, including the design of a dedicated delta‑ray detector with fast readout, refined simulation studies to reduce model dependence, and potential integration of the delta‑ray signal into the online luminosity feedback loop.

The conclusions stress that the dual‑signal method not only achieves the targeted 5 % precision but also establishes a versatile framework applicable to other fixed‑target experiments and possibly to collider environments where similar auxiliary signals can be exploited. By demonstrating that delta‑rays can serve as a reliable luminosity proxy, the work opens a new avenue for real‑time luminosity monitoring, reducing reliance on external beam instrumentation and enhancing the overall robustness of cross‑section measurements. Future developments, as outlined, aim to further suppress systematic errors, extend the method to a broader range of beam conditions, and explore automated calibration schemes that could make this approach a standard tool in high‑energy physics experiments.
