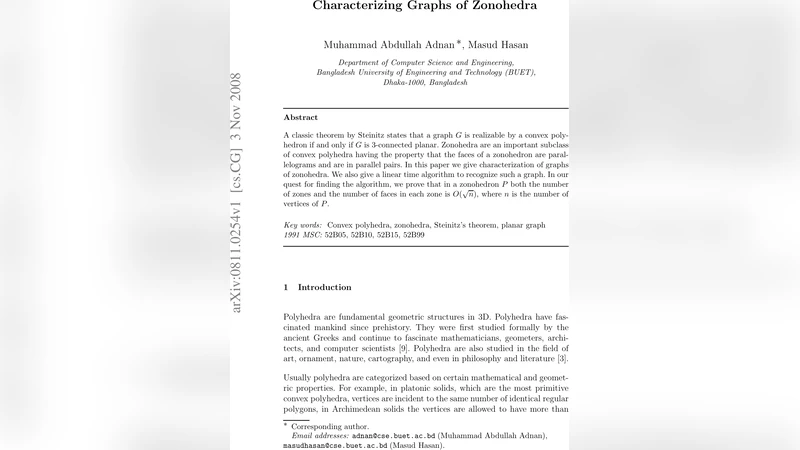

Characterizing Graphs of Zonohedra

A classic theorem by Steinitz states that a graph G is realizable by a convex polyhedron if and only if G is 3-connected planar. Zonohedra are an important subclass of convex polyhedra having the property that the faces of a zonohedron are parallelograms and are in parallel pairs. In this paper we give characterization of graphs of zonohedra. We also give a linear time algorithm to recognize such a graph. In our quest for finding the algorithm, we prove that in a zonohedron P both the number of zones and the number of faces in each zone is O(square root{n}), where n is the number of vertices of P.

💡 Research Summary

The paper investigates the class of convex polyhedra known as zonohedra—polyhedra whose faces are parallelograms occurring in parallel pairs—and provides a complete graph‑theoretic characterization of their skeletons together with a linear‑time recognition algorithm.
The authors begin by recalling Steinitz’s theorem, which states that a graph is realizable as the edge‑vertex graph of some convex polyhedron if and only if it is 3‑connected and planar. They then focus on the subclass of zonohedra defined by Coxeter, where every face is a parallelogram (the more restrictive rhombic case is not considered).
A central geometric notion introduced is the “zone”. A zone is a cyclic sequence of faces that share a common normal direction; in the Gauss map each zone corresponds to a great circle on the unit sphere. Important geometric facts are proved: (i) each zone contains an even number of faces, (ii) any two distinct zones intersect in exactly two parallel faces, (iii) every face belongs to precisely two zones, and (iv) two parallel faces of the same zone split the zone into two equal chains of faces.
These facts are translated into purely combinatorial conditions on a planar graph G:

1. G must be 3‑connected and planar.
2. Every face must be a quadrilateral.
3. Each face must be incident to exactly two zones.
4. Any pair of zones must intersect in exactly two faces, and after removing those two faces each zone must be divided into two non‑empty, equally long chains of faces.
   Theorem 3.5 asserts that these four conditions are not only necessary but also sufficient for G to be the graph of a zonohedron.

The sufficiency proof is constructive. The authors define a “zone deletion” operation: for a given zone, contract each of its faces into a single edge, thereby replacing the whole zone by a simple cycle (the “zone cycle”). They show that deleting a zone preserves 3‑connectivity, the quadrilateral face structure, and the zone‑intersection properties. Repeated deletion eventually reduces any graph satisfying the four conditions to the graph of a cube, which is the minimal zonohedral graph (three zones of length four). Lemma 4.1 formalizes this base case.

Conversely, the authors describe how to reconstruct a zonohedron from a smaller one by “adding a zone”. Starting from a cube, they iteratively insert zones along previously deleted cycles. Lemma 4.3 proves that the newly added faces appear in parallel pairs, and Lemma 4.4 guarantees the existence of a viewing direction d such that the resulting polyhedron remains convex; d can be found in O(h log h) time where h is the number of faces added in the current zone.

Based on these operations, a linear‑time recognition algorithm is derived. The algorithm proceeds as follows: (a) verify 3‑connectivity and planarity (both achievable in O(n) time), (b) check that all faces are quadrilaterals, (c) for each face identify its opposite edges to determine the two incident zones, (d) verify that any two zones intersect in exactly two faces and that the equal‑chain property holds, and (e) repeatedly delete zones of length ≥ 6 until only a cube remains. Because each vertex and edge is examined a constant number of times, the total running time is O(n).

An additional theoretical contribution is the bound on the number of zones and the length of each zone: both are O(√n) where n is the number of vertices of the polyhedron. This follows from Euler’s formula and the fact that each zone contributes a distinct set of edges to the graph.

In summary, the paper delivers a clean combinatorial characterization of zonohedral graphs, a constructive proof of sufficiency, and a practical O(n) algorithm for recognizing such graphs. The work bridges geometric intuition (via the Gauss map and zones) with pure graph theory, opening avenues for fast preprocessing in computer graphics, CAD, and crystallography where zonohedral structures frequently arise.
