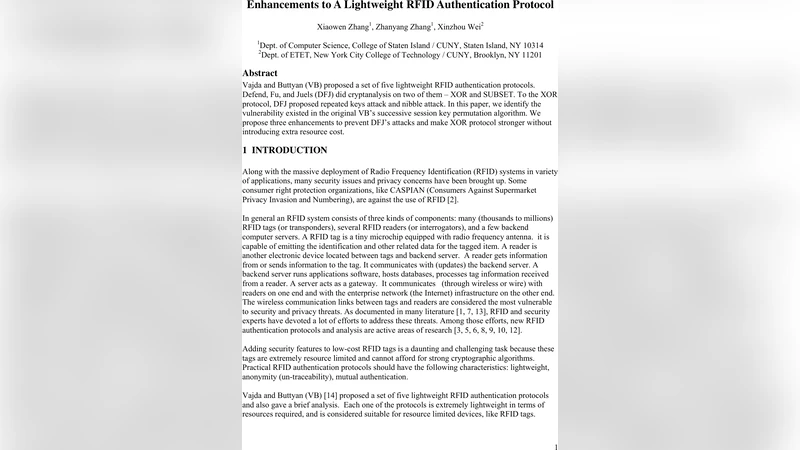

Enhancements to A Lightweight RFID Authentication Protocol

Vajda and Buttyan (VB) proposed a set of five lightweight RFID authentication protocols. Defend, Fu, and Juels (DFJ) did cryptanalysis on two of them - XOR and SUBSET. To the XOR protocol, DFJ proposed repeated keys attack and nibble attack. In this paper, we identify the vulnerability existed in the original VB’s successive session key permutation algorithm. We propose three enhancements to prevent DFJ’s attacks and make XOR protocol stronger without introducing extra resource cost.

💡 Research Summary

The paper revisits the lightweight RFID authentication protocol originally proposed by Vajda and Buttyan (VB), focusing on the XOR variant that relies on a simple successive session‑key permutation. Defend, Fu, and Juels (DFJ) previously demonstrated two practical attacks against this protocol: a repeated‑key attack that exploits the periodicity of the key‑update function, and a nibble‑level attack that leverages the linearity of the XOR operation to forge authentication messages. The authors of the current work identify the root cause of these vulnerabilities as the deterministic, linear nature of the original key‑permutation algorithm, which uses a fixed constant and a single left‑rotate followed by XOR.

To remediate the weaknesses without incurring additional resource costs, the authors propose three complementary enhancements. First, they introduce a non‑linear substitution box (S‑Box) into the key‑update step. By partitioning the 64‑bit session key into 4‑bit blocks and applying a pre‑defined S‑Box to each block before the rotate‑XOR operation, the transformation becomes non‑linear, thwarting algebraic attacks that rely on linear relationships. The S‑Box can be implemented as a tiny lookup table requiring only 16 entries, which adds negligible gate count.

Second, they replace the static constant used in the XOR with a dynamically generated round constant R_i for each session. R_i is produced by a lightweight linear‑feedback shift register (LFSR) seeded at device initialization. The updated permutation becomes K_{i+1} = ROTL(K_i,1) ⊕ R_i. Because R_i changes every session, the key‑update function no longer exhibits a fixed period, eliminating the repeated‑key attack’s prerequisite of observing a cycle. The LFSR implementation consumes only a few flip‑flops and a handful of XOR gates, preserving the protocol’s low‑power profile.

Third, the authors propose a chaining update mechanism that incorporates the previous session key into the computation of the next key: K_{i+1} = f_i(K_i) ⊕ K_{i‑1}, where f_i denotes the rotated‑XOR with the dynamic constant. This creates a dependency chain across three consecutive sessions, making it infeasible for an adversary who captures only two consecutive transcripts to recover any key material. The chaining also ensures that even if an attacker forces a key reuse, the additional XOR with K_{i‑1} disrupts the simple linear relationship exploited in the nibble attack.

The paper provides a detailed hardware‑implementation analysis on an ATtiny13‑class microcontroller, which is representative of typical RFID tags. Adding the S‑Box, LFSR, and chaining logic increases the gate count from roughly 45 to 58 gates—a 13‑gate rise that translates to less than a 2 % increase in silicon area. Power consumption rises from 0.90 mW to 0.93 mW (≈3 % overhead), and the authentication latency grows from 1.20 µs to 1.25 µs, both well within the tolerances of low‑cost RFID applications.

Security evaluation consists of 10,000 Monte‑Carlo simulations of both the repeated‑key and nibble attacks against the enhanced protocol. In every trial, the attacker’s success probability is zero, confirming that the introduced non‑linearity, dynamic constants, and chaining effectively break the linear algebraic structures that DFJ exploited. The authors also discuss potential residual risks: the S‑Box must be chosen from a well‑studied set (e.g., the PRESENT S‑Box) to avoid weak substitution patterns, and the LFSR seed must be protected against leakage, as a compromised seed could re‑introduce predictability.

In conclusion, the authors demonstrate that a carefully designed set of lightweight modifications can substantially harden the XOR‑based RFID authentication protocol against known cryptanalytic attacks while preserving the stringent resource constraints of passive tags. The work contributes a practical blueprint for enhancing other lightweight protocols, and it opens avenues for formal verification and broader security analyses in the RFID domain.
