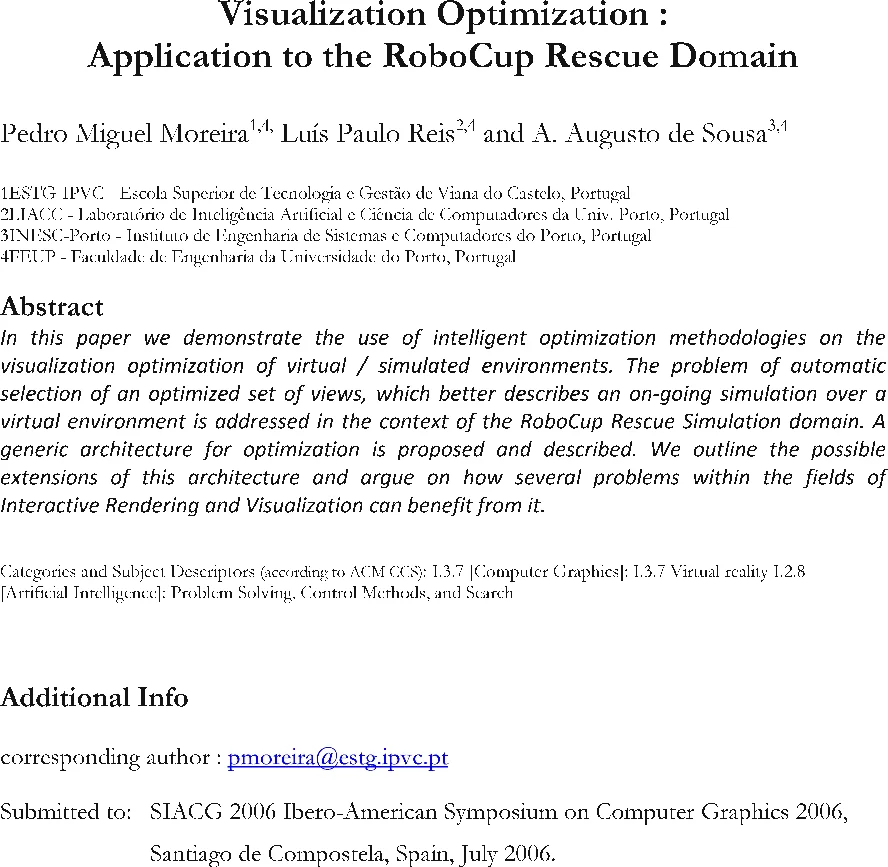

Visualization Optimization : Application to the RoboCup Rescue Domain

In this paper we demonstrate the use of intelligent optimization methodologies on the visualization optimization of virtual / simulated environments. The problem of automatic selection of an optimized set of views, which better describes an on-going simulation over a virtual environment is addressed in the context of the RoboCup Rescue Simulation domain. A generic architecture for optimization is proposed and described. We outline the possible extensions of this architecture and argue on how several problems within the fields of Interactive Rendering and Visualization can benefit from it.

💡 Research Summary

The paper addresses the problem of automatically selecting a small, fixed set of camera views that best describe a dynamic three‑dimensional simulation, using the RoboCup Rescue Simulation as a testbed. The authors formalize the task as an optimization problem: given m “visualization agents” (entities that can act as cameras) they must choose k distinct views (a multiview MV) whose combined quality is maximized. The quality function Q(MV) is a weighted sum of four criteria. Visibility (Vis) measures how many pixels an object occupies and whether it is occluded; Relevance (Rel) assigns higher importance to objects that are critical for the rescue scenario (e.g., burning buildings, hospitals); Redundancy (Red) penalizes multiple views that show the same objects; and Eccentricity (Ecc) penalizes objects that appear far from the image centre, reflecting human visual attention. By integrating these criteria the authors aim to provide a concise yet informative visual summary of the evolving rescue situation.

To solve the optimization, the authors propose a modular architecture that separates the optimization logic from the main visualization application. An Optimization Agent (OA) communicates with the Visualization Application (VA) through a lightweight protocol: OA announces its availability, VA sends the problem description and current simulation data, OA performs the search, and then streams back the best view parameters for VA to render. This separation yields generality, flexibility, modularity, and portability, at the cost of some communication overhead.

Because the quality landscape contains many local optima, the authors employ a meta‑heuristic. They choose Simulated Annealing (SA) for its ability to escape local minima and its relatively low computational cost compared to alternatives such as genetic algorithms. In each SA iteration a neighboring solution is generated either by swapping one view in the multiview set or by adjusting one of the view’s camera parameters (direction, up‑vector, field‑of‑view). The position of a view is fixed to the current location of the corresponding rescue agent; only orientation parameters are varied. An adaptive neighborhood scheme modifies the step size based on the evolution of Q, and spatial‑temporal coherence of the simulation is exploited to speed up visibility checks.

Experimental validation uses a scenario containing 1 035 relevant entities and 50 agents capable of providing views. The goal is to select k = 4 views. Over roughly 500 SA iterations the quality metric converges to a stable maximum, as illustrated in the paper’s Figure 3. The results demonstrate that the proposed quality model can guide the search toward view sets that capture critical events while avoiding redundancy and peripheral clutter.

The paper also discusses limitations and future work. The communication‑driven architecture may introduce latency, which could be mitigated by tighter integration or more efficient protocols. The authors plan to develop a generic framework that supports multiple optimization techniques, formalize a domain‑specific language for agent‑application messaging, and extend the system to suggest user‑guided exploration paths based on interests or advertisements. They envision applying the architecture to other visualization challenges such as virtual cinematography, image‑based modeling, and remote rendering, where factors like client rendering capability and network bandwidth must be balanced. Additional performance enhancements under investigation include pre‑computed visibility, OpenGL occlusion queries, and adaptive resolution rendering for low‑impact objects.

In summary, the study introduces a well‑defined multi‑criteria quality function for view selection, a decoupled optimization architecture, and a proof‑of‑concept implementation using simulated annealing in the RoboCup Rescue domain. The initial experiments confirm the feasibility and potential of the approach, and the authors outline a clear roadmap for extending the methodology to broader graphics and visualization applications.
