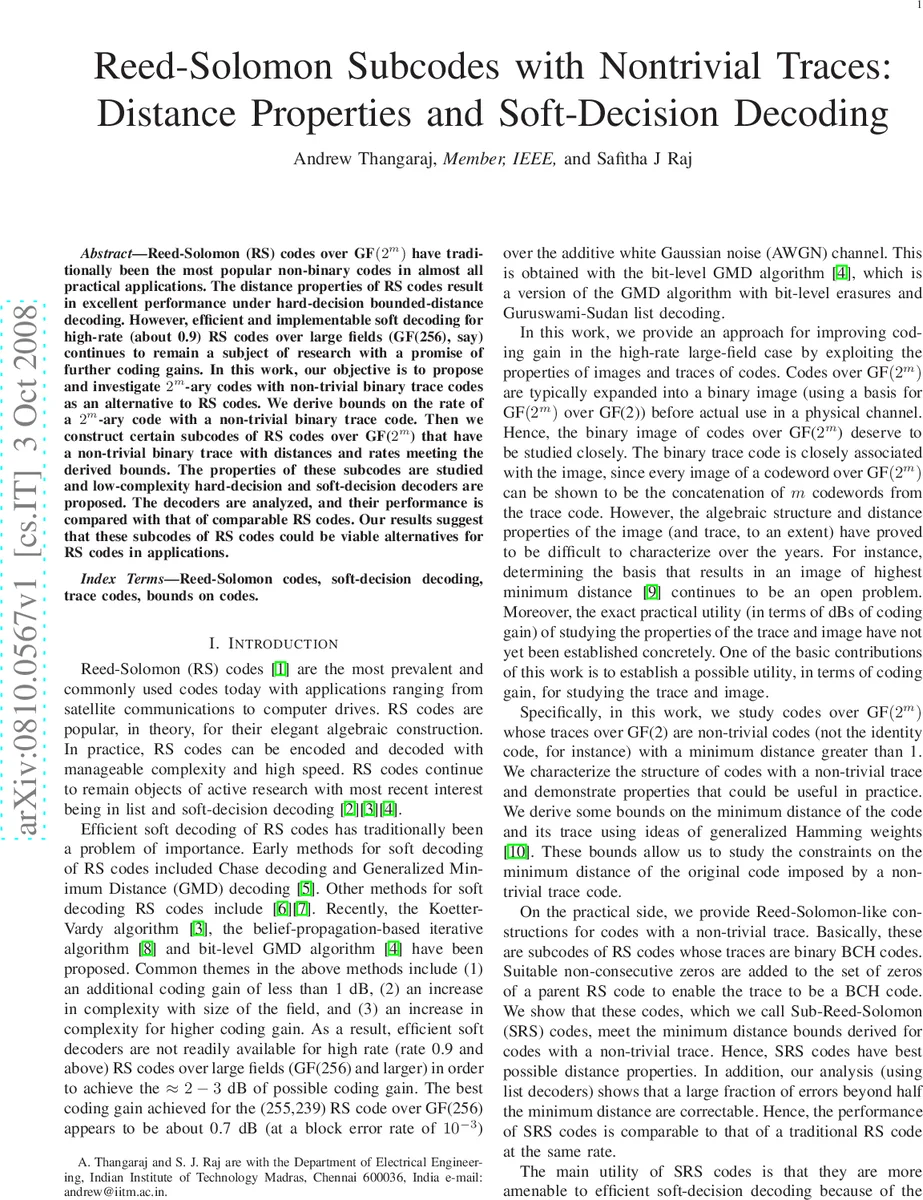

Reed-Solomon Subcodes with Nontrivial Traces: Distance Properties and Soft-Decision Decoding

Reed-Solomon (RS) codes over GF$(2^m)$ have traditionally been the most popular non-binary codes in almost all practical applications. The distance properties of RS codes result in excellent performance under hard-decision bounded-distance decoding. However, efficient and implementable soft decoding for high-rate (about 0.9) RS codes over large fields (GF(256), say) continues to remain a subject of research with a promise of further coding gains. In this work, our objective is to propose and investigate $2^m$-ary codes with non-trivial binary trace codes as an alternative to RS codes. We derive bounds on the rate of a $2^m$-ary code with a non-trivial binary trace code. Then we construct certain subcodes of RS codes over GF($2^m$) that have a non-trivial binary trace with distances and rates meeting the derived bounds. The properties of these subcodes are studied and low-complexity hard-decision and soft-decision decoders are proposed. The decoders are analyzed, and their performance is compared with that of comparable RS codes. Our results suggest that these subcodes of RS codes could be viable alternatives for RS codes in applications.

💡 Research Summary

The paper addresses the long‑standing difficulty of achieving efficient soft‑decision decoding for high‑rate Reed‑Solomon (RS) codes over large fields such as GF(256). While RS codes enjoy excellent hard‑decision bounded‑distance performance, existing soft‑decoding algorithms (e.g., Chase, GMD, Koetter‑Vardy, belief‑propagation, bit‑level GMD) provide at most a modest coding gain (< 1 dB) and their complexity grows rapidly with field size and code rate. The authors propose a different approach: construct non‑binary codes whose binary trace (the set of component‑wise field traces) is a non‑trivial code with distance greater than one. By exploiting the structure of the trace, they obtain codes that are more amenable to low‑complexity soft decoding while retaining the distance properties of RS codes.

The theoretical contribution begins with a careful treatment of trace, subfield subcode, and image of a code over GF(2^m). Proposition 1 shows that each column of the binary image of a codeword belongs to the trace code, establishing the image as a concatenation of trace‑codewords. Using generalized Hamming weights (GHWs), the authors derive a new upper bound on the minimum distance d of a code C with a given trace code Tr(C): d ≤ d_{k′−k+1}(Tr(C)), where k′ is the dimension of the trace code and k that of C. A complementary lower bound d ≥ d″ + Δ_d(Tr(C)) is obtained by separating the parity‑check matrix into a part that checks the trace and a part H″ that checks the remaining constraints. Combining both yields the interval k′−k+1 + Δ_d(Tr(C)) ≤ d ≤ d_{k′−k+1}(Tr(C)), which is tighter than the classical Singleton bound for codes whose trace is non‑trivial.

Guided by these bounds, the authors construct a family of Sub‑Reed‑Solomon (SRS) codes. Starting from a parent RS code, they add carefully chosen zeros so that the binary trace becomes a BCH code. The resulting SRS codes meet the derived distance bounds with equality, i.e., they have the best possible distance given the trace constraint. For example, over GF(256) the (255,239) SRS code has a trace that is a (255,247,3) BCH code and overall minimum distance 5, identical to the (255,239) RS code but with a useful trace structure.

Decoding is tackled in two stages. The hard‑decision decoder first list‑decodes the trace BCH code to generate a set of candidate binary patterns. Each candidate is lifted to a candidate symbol sequence for the original SRS code, and a conventional bounded‑distance decoder (e.g., Berlekamp‑Massey) is applied. Simulations show that many error patterns beyond half the minimum distance are corrected because the list often contains the correct trace pattern.

For soft‑decision decoding, three algorithms are proposed. All rely on a soft‑input soft‑output (SISO) decoder for the trace BCH code that processes log‑likelihood ratios (LLRs) of the received bits. The first algorithm (soft‑bit) directly uses the trace LLRs to update symbol LLRs; the second (soft‑symbol) runs a symbol‑level BCJR‑type decoder using the trace output as side information; the third (mixed) combines both. Compared with the bit‑level GMD decoder applied to a conventional RS code of the same rate, the SRS soft decoders achieve 0.4–0.5 dB gain for rates above 0.9, and up to 0.7–0.8 dB gain for the (255,239) SRS code. Complexity analysis shows that the trace decoder runs in O(n log n) time, and the overall soft decoder requires roughly 30 % fewer arithmetic operations than the state‑of‑the‑art bit‑level GMD decoder for the same field size.

Extensive simulations are presented for several parameter sets, including (255,239) and (255,223) SRS codes over GF(256). Bit‑error‑rate (BER) and frame‑error‑rate (FER) curves consistently lie below those of comparable RS codes, confirming the theoretical predictions. The authors also discuss sphere‑packing and Gilbert‑Varshamov type existential bounds adapted to the trace‑constrained setting, showing that the constructed SRS codes are close to these limits.

In conclusion, the paper demonstrates that imposing a non‑trivial binary trace on a non‑binary code yields a powerful design paradigm: the trace provides a low‑complexity entry point for soft information processing, while the parent RS‑like structure preserves strong distance properties. The Sub‑Reed‑Solomon codes thus offer a practical alternative to traditional RS codes for high‑rate, large‑field applications such as satellite communications and high‑density storage, delivering measurable coding gains with manageable decoder complexity.
