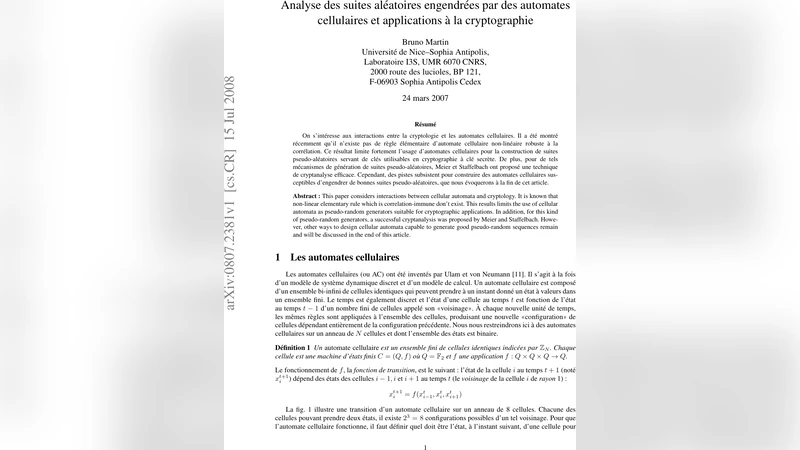

Analyse des suites aleatoires engendrees par des automates cellulaires et applications `a la cryptographie

This paper considers interactions between cellular automata and cryptology. It is known that non-linear elementary rule which is correlation-immune don’t exist. This results limits the use of cellular automata as pseudo-random generators suitable for cryptographic applications. In addition, for this kind of pseudo-random generators, a successful cryptanalysis was proposed by Meier and Staffelbach. However, other ways to design cellular automata capable to generate good pseudo-random sequences remain and will be discussed in the end of this article.

💡 Research Summary

The paper investigates the interplay between cellular automata (CA) and cryptography, focusing on the suitability of elementary one‑dimensional binary CA as pseudo‑random number generators (PRNGs) for cryptographic key streams. After a concise introduction to CA—originally proposed by Ulam and von Neumann—the author defines a ring of N binary cells with radius‑1 neighborhoods and explains that each cell’s next state is determined by a Boolean function of three bits. There are 2³ = 8 possible input patterns, yielding 2⁸ = 256 distinct elementary rules; rule 30, introduced by Wolfram, is highlighted because it can be expressed as x_{i}^{t+1}=x_{i-1}^{t} ⊕ (x_{i}^{t} ∨ x_{i+1}^{t}) and exhibits complex space‑time behavior from a simple seed.

A central cryptographic property, correlation immunity, is examined. A Boolean function is correlation‑immune of order k if the output is statistically independent of any subset of up to k input bits. The author proves that no non‑linear elementary rule can be correlation‑immune, which immediately limits the cryptographic strength of CA‑based PRNGs: without correlation immunity, linear or differential attacks can exploit statistical dependencies between the key (initial configuration) and the generated stream.

The paper then details the Meier‑Staffelbach (MS) attack, originally devised for rule 30. By exploiting the partial linearity of rule 30, the attacker can reconstruct the triangular space‑time diagram from two adjacent columns of bits. The attack proceeds in two phases: forward (or “front”) completion, which propagates known bits forward in time using the linear relation x_{i-1}^{t}=x_{i}^{t+1} ⊕ (x_{i}^{t} ∨ x_{i+1}^{t}), and backward completion, which reconstructs the missing bits on the opposite side. The algorithm runs in O(N²) time for a ring of N cells. Experimental illustration with N = 5 shows that with probability ½ the correct key is recovered on the first trial, demonstrating that rule 30‑based generators are insecure for practical cryptographic use.

To assess the statistical quality of all elementary rules, the author employs Walsh transforms. For a Boolean function F:(F₂)ⁿ→F₂, the Walsh coefficient \hat{F}(ω) measures the correlation between the output and the parity of a subset of input bits defined by ω. The paper shows that \hat{F}(0) equals the mean of F and that \hat{F}(ω)=0 for all non‑zero ω with Hamming weight ≤ k is equivalent to k‑order correlation immunity (Xiao‑Massey theorem). By computing the Walsh spectra of all 256 rules, the author first filters those with a balanced output (\hat{F}(0)=2^{N‑1}), leaving 70 candidates. A second filtering step selects rules that minimize the maximum absolute Walsh coefficient among low‑weight ω, aiming to find the most correlation‑immune among elementary rules. No rule satisfies the stringent criteria, confirming the earlier theoretical result.

The conclusion is that elementary one‑dimensional binary CA cannot, by themselves, provide cryptographically strong pseudo‑random streams. The absence of non‑linear correlation‑immune rules and the effectiveness of the MS attack render rule 30 and similar automata unsuitable for key‑stream generation. The paper suggests future directions: exploring larger neighborhoods (radius ≥ 2), non‑uniform or two‑dimensional topologies, hybrid automata that combine linear and non‑linear transition functions, or integrating CA with established cryptographic primitives such as S‑boxes. Additionally, the author advocates for automated Walsh‑based evaluation frameworks to efficiently screen candidate rules in more complex CA designs.
