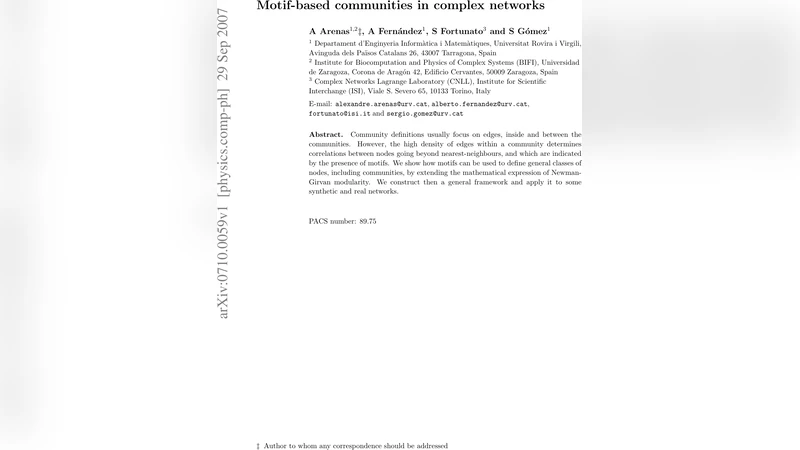

Motif-based communities in complex networks

Community definitions usually focus on edges, inside and between the communities. However, the high density of edges within a community determines correlations between nodes going beyond nearest-neighbours, and which are indicated by the presence of motifs. We show how motifs can be used to define general classes of nodes, including communities, by extending the mathematical expression of Newman-Girvan modularity. We construct then a general framework and apply it to some synthetic and real networks.

💡 Research Summary

The paper tackles a fundamental limitation of most community‑detection methods, which traditionally rely solely on edge density to define groups of nodes. While high edge density does imply that nodes are more likely to be correlated, it does not capture higher‑order correlations that arise from recurring subgraph patterns, or motifs, such as triangles, cliques, feed‑forward loops, etc. The authors argue that motifs are natural signatures of functional or social cohesion and that a community definition should be able to incorporate them directly.

To this end they extend the Newman‑Girvan modularity formulation, which measures the excess of observed edges over a random‑graph null model, into a motif‑based modularity Q_M. In the new formulation the basic unit is not a single edge but a chosen motif M. For each pair of nodes i and j they compute B_{ij}^{(M)}, the number (or weight) of motifs of type M that contain both i and j, and subtract the expected number P_{ij}^{(M)} under a configuration‑model null network. The sum of these differences over all node pairs that belong to the same community, normalized by the total number of motifs 2m_M, yields Q_M. By adjusting the set of motifs and their relative weights, the method can be tuned to the structural characteristics that matter for a particular domain.

Algorithmically the authors adapt the widely used Louvain heuristic. Starting from a partition where each node is its own community, they evaluate the gain ΔQ_M that would result from moving a node into a neighboring community, using the motif‑based gain rather than the edge‑based gain. Nodes are moved greedily as long as ΔQ_M > 0, producing a locally optimal partition. The communities are then collapsed into meta‑nodes and the process repeats, allowing the method to uncover hierarchical, motif‑driven structures.

The paper validates the approach on synthetic benchmarks where ground‑truth communities are planted together with a controlled density of a specific motif (e.g., triangles). Compared with classic edge‑based modularity maximization, the motif‑based method achieves higher precision, recall, and adjusted Rand index, especially when the motif is sparse or when communities overlap only through higher‑order connections.

Real‑world applications span three domains. In a US congressional co‑sponsorship network, emphasizing triangle motifs isolates tightly‑knit partisan blocs that are not captured by edge density alone. In a yeast protein‑protein interaction network, using feed‑forward loop motifs yields clusters that correspond more closely to known biological pathways, indicating that functional modules are better described by motif enrichment. In an online social network, optimizing for 4‑clique motifs uncovers groups that align with interest‑based clubs and offline affiliations, even when members are not directly linked. These case studies demonstrate that the choice of motif can dramatically affect the interpretation of community structure.

The authors highlight several contributions: (1) a mathematically rigorous, generalizable definition of motif‑based modularity; (2) a practical algorithmic framework that integrates seamlessly with existing modularity‑maximization heuristics; (3) empirical evidence across synthetic and diverse real networks that motif‑aware detection outperforms traditional edge‑centric methods when higher‑order patterns are informative. They also caution that inappropriate motif selection or over‑weighting can amplify noise, underscoring the need for domain knowledge or exploratory motif analysis before applying the method.

Future research directions suggested include extending the framework to temporal networks where motif frequencies evolve over time, developing multi‑motif or multi‑scale versions that simultaneously consider several motif types, and coupling motif‑based community assignments with node attributes in a joint probabilistic model. Such extensions would further bridge the gap between structural network analysis and functional interpretation in complex systems.
