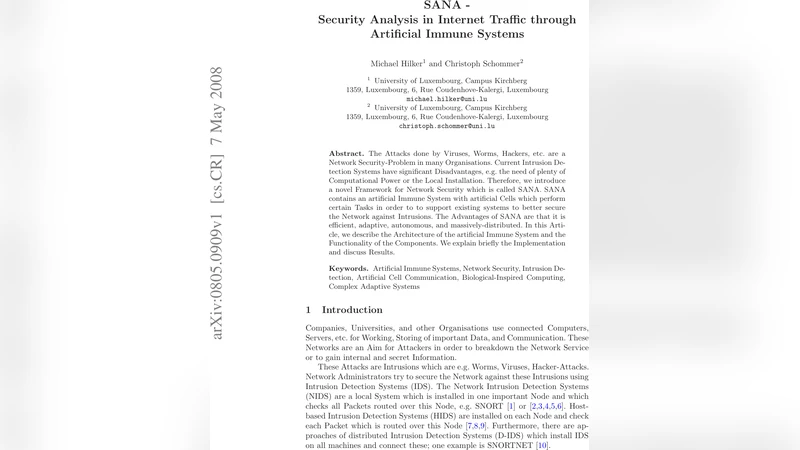

SANA - Security Analysis in Internet Traffic through Artificial Immune Systems

The Attacks done by Viruses, Worms, Hackers, etc. are a Network Security-Problem in many Organisations. Current Intrusion Detection Systems have significant Disadvantages, e.g. the need of plenty of Computational Power or the Local Installation. Therefore, we introduce a novel Framework for Network Security which is called SANA. SANA contains an artificial Immune System with artificial Cells which perform certain Tasks in order to to support existing systems to better secure the Network against Intrusions. The Advantages of SANA are that it is efficient, adaptive, autonomous, and massively-distributed. In this Article, we describe the Architecture of the artificial Immune System and the Functionality of the Components. We explain briefly the Implementation and discuss Results.

💡 Research Summary

The paper introduces SANA, a novel network‑security framework that leverages an artificial immune system (AIS) to overcome the limitations of conventional intrusion‑detection systems (IDS). Traditional NIDS/HIDS are either centrally deployed or require an IDS agent on every host, leading to high computational demands, complex administration, and limited adaptability against sophisticated, stealthy attacks. Inspired by the distributed, autonomous, and specialized nature of the human immune system, SANA integrates several components: mobile artificial cells, local packet‑filters, and conventional IDS modules, all coordinated through a decentralized communication scheme based on a “receptor‑substance” model using public‑key cryptography.

The architecture consists of a network simulator (FIFO queueing with Dijkstra shortest‑path routing) that models packet flows, an adversarial traffic generator that injects both benign and malicious packets, and the AIS core. Mobile artificial cells are lightweight Java objects that traverse the network performing distinct tasks: ANIMA cells inspect packet payloads for malicious signatures, AGNOSCO cells identify infected hosts using artificial “ant colonies,” and monitoring cells collect status information for administrators. Artificial lymph nodes and Central Nativity and Training Stations (CNTS) act as knowledge repositories and cell‑generation factories, respectively. Communication among cells is peer‑to‑peer; each message is encrypted as a “substance” and can be decrypted only by a receiver possessing the appropriate set of receptors, eliminating the need for a central key server.

Implementation is entirely in Java, with the ability to plug in existing IDS such as Snort or Malfor. Experiments focus on a simulated worm‑propagation scenario. Results show that ANIMA cells block most malicious packets, limiting worm spread to only 2–5 neighboring nodes. AGNOSCO cells locate infected hosts within 50–150 simulation time‑steps, after which the lymph‑node infrastructure dispatches disinfection cells that quickly cleanse the compromised machines. Overall detection rates range from 60 % to 85 % depending on attack behavior and network topology, while the combined SANA‑IDS system achieves 80 %–95 % attack‑prevention rates, demonstrating a clear synergistic effect.

A theoretical analysis compares distributed AIS with centralized IDS, highlighting that performance gains from distribution are highly dependent on network topology and attack patterns, but that resource consumption remains manageable when AIS augments existing IDS. The authors acknowledge several limitations: the communication and routing overhead of mobile cells is not quantitatively measured, self‑management mechanisms are still rudimentary, key‑distribution procedures lack concrete detail, and the evaluation is confined to a single Java‑based simulator with limited scale.

Future work is outlined to include more realistic multi‑vector attacks, scalability testing on larger topologies, rigorous performance modeling of cell communication, and a robust self‑management layer that can guarantee security properties even under cell failures. The paper concludes that SANA, by embodying the principles of a complex adaptive system, can enhance current network‑security solutions, but further engineering and empirical validation are required before deployment in production environments.
