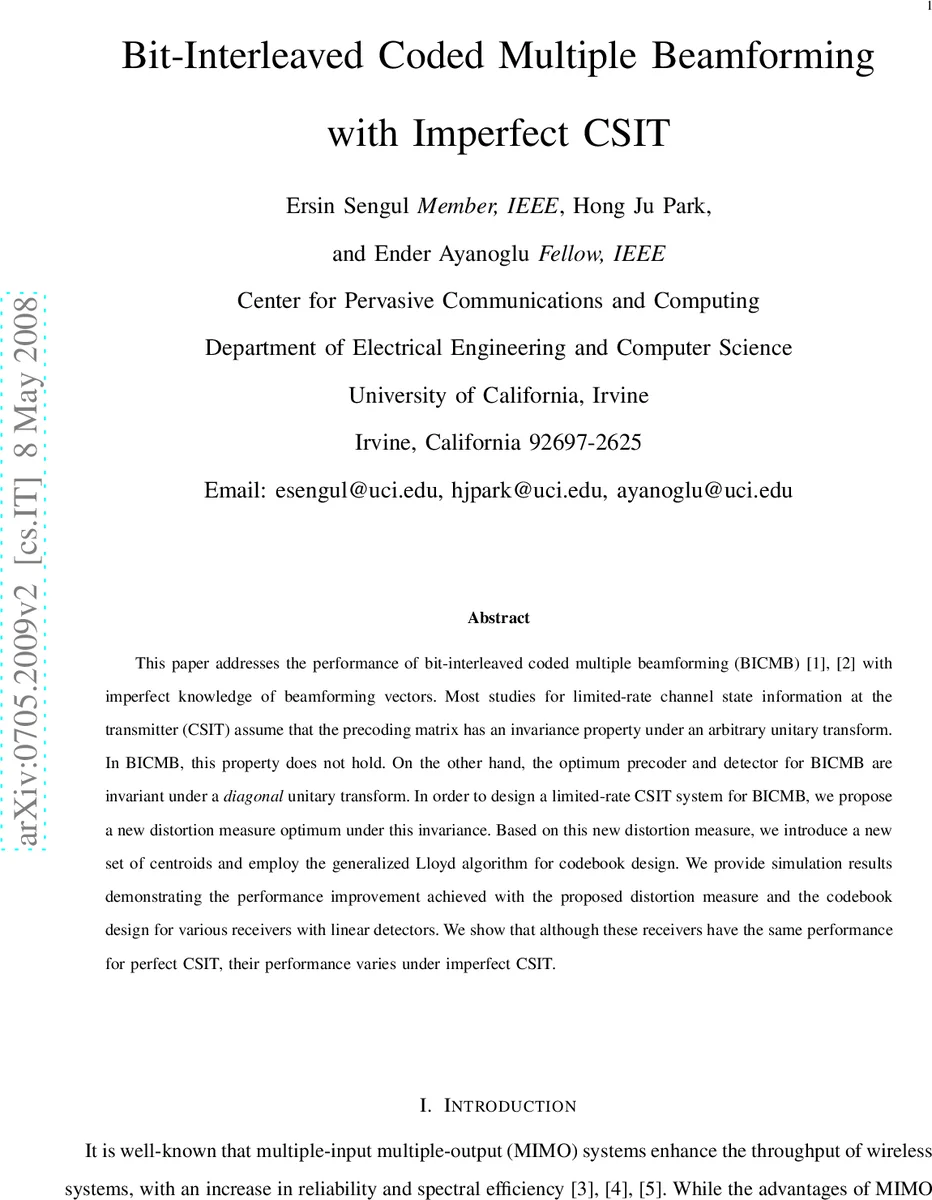

Bit-Interleaved Coded Multiple Beamforming with Imperfect CSIT

Notice: This research summary and analysis were automatically generated using AI technology. For absolute accuracy, please refer to the [Original Paper Viewer] below or the Original ArXiv Source.

This paper addresses the performance of bit-interleaved coded multiple beamforming (BICMB) [1], [2] with imperfect knowledge of beamforming vectors. Most studies for limited-rate channel state information at the transmitter (CSIT) assume that the precoding matrix has an invariance property under an arbitrary unitary transform. In BICMB, this property does not hold. On the other hand, the optimum precoder and detector for BICMB are invariant under a diagonal unitary transform. In order to design a limited-rate CSIT system for BICMB, we propose a new distortion measure optimum under this invariance. Based on this new distortion measure, we introduce a new set of centroids and employ the generalized Lloyd algorithm for codebook design. We provide simulation results demonstrating the performance improvement achieved with the proposed distortion measure and the codebook design for various receivers with linear detectors. We show that although these receivers have the same performance for perfect CSIT, their performance varies under imperfect CSIT.

💡 Research Summary

This paper investigates the performance of Bit‑Interleaved Coded Multiple Beamforming (BICMB) when the transmitter has only imperfect channel state information (CSIT) conveyed through a limited‑rate feedback link. While most limited‑feedback designs for MIMO precoding assume that the precoder matrix is invariant under any unitary transformation, BICMB does not possess this property. Instead, the optimal precoder and the corresponding detector for BICMB remain unchanged only under diagonal unitary (phase‑rotation) transforms applied independently to each data stream. Recognizing this structural difference, the authors propose a new distortion measure that explicitly incorporates the diagonal‑unitary invariance.

The new distortion metric is defined as the minimum Frobenius‑norm distance between the actual channel matrix H and the product of a candidate codebook entry F with an optimal diagonal unitary matrix Λ, i.e.,
D(F, H) = min_{Λ=diag(e^{jθ₁},…,e^{jθ_S})} ‖H − FΛ‖_F².
By allowing per‑stream phase adjustments, this metric reflects the true performance loss caused by quantization errors in the feedback link for BICMB systems.

Based on this metric, the authors adapt the generalized Lloyd algorithm (vector quantization’s k‑means) for codebook construction. The procedure starts with an initial set of precoder candidates, assigns each randomly generated channel realization to the codeword that minimizes the new distortion, and then updates each codeword to the centroid of its assigned set after optimal phase alignment. The phase‑alignment step (optimizing Λ) is the key modification that guarantees the resulting codebook respects the diagonal‑unitary invariance. Iterating this process yields a codebook that achieves a substantially lower average distortion than conventional Frobenius‑norm‑based designs.

Simulation experiments are conducted on a 4 × 4 MIMO system with two spatial streams, 16‑QAM modulation, and feedback budgets of 4–6 bits. Three linear detectors—Zero‑Forcing (ZF), Minimum‑Mean‑Square‑Error (MMSE), and a near‑optimal Minimum‑Distance (MD) detector—are evaluated. With perfect CSIT, all detectors exhibit identical bit‑error‑rate (BER) curves, confirming the theoretical invariance of BICMB under ideal precoding. Under limited CSIT, however, performance diverges: ZF suffers the most degradation due to its sensitivity to precoder errors, while MMSE shows moderate robustness, and MD retains the best overall performance. When the proposed distortion‑aware codebook is employed, the BER curves shift leftward by roughly 1.0–1.8 dB compared with a conventional codebook, with the largest gain observed for ZF. These results demonstrate that the choice of detector matters under imperfect CSIT and that the new codebook design can mitigate the associated loss.

The paper concludes by highlighting several avenues for future work. Extending the approach to multi‑user MIMO would require joint optimization of per‑user diagonal phase rotations, potentially leading to more intricate codebook structures. Incorporating non‑linear detectors such as sphere decoding could further exploit the refined precoding information. Finally, adaptive feedback strategies that vary the number of bits or update the codebook in response to channel dynamics could enhance practicality in fast‑fading environments. Overall, the study provides a principled method for limited‑rate CSIT design tailored to BICMB, enabling higher spectral efficiency and reliable communication even when perfect channel knowledge is unavailable.
