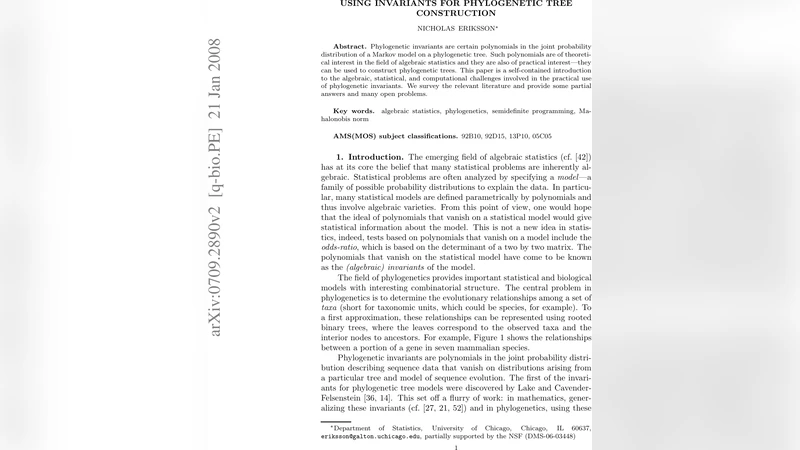

Using invariants for phylogenetic tree construction

Phylogenetic invariants are certain polynomials in the joint probability distribution of a Markov model on a phylogenetic tree. Such polynomials are of theoretical interest in the field of algebraic statistics and they are also of practical interest–they can be used to construct phylogenetic trees. This paper is a self-contained introduction to the algebraic, statistical, and computational challenges involved in the practical use of phylogenetic invariants. We survey the relevant literature and provide some partial answers and many open problems.

💡 Research Summary

The paper “Using invariants for phylogenetic tree construction” offers a self‑contained exposition of phylogenetic invariants—polynomials that vanish on the joint probability distribution generated by a Markov model on a tree—and examines how these algebraic objects can be turned into practical tools for inferring evolutionary relationships. After a concise motivation, the authors lay out the mathematical foundation: a discrete‑time Markov process is placed on each edge of a rooted tree, producing a joint distribution p(i₁,…,iₙ) over the leaf states. A phylogenetic invariant is defined as any polynomial f in the entries of p that evaluates to zero for every admissible choice of model parameters (transition matrices and root distribution). This definition immediately links invariants to the algebraic variety of the model, making them natural identifiers of tree topology.

The survey proceeds to categorize the most widely studied families of invariants. Edge invariants arise from 2×2 minors of flattenings that correspond to a single edge split; they are zero exactly when the split is present. Quartet invariants involve four leaves and consist of cubic relations that discriminate among the three possible unrooted quartet topologies. Flattening invariants generalize the edge case by reshaping the full probability tensor into a matrix and imposing rank constraints dictated by the underlying tree—zero determinants, vanishing singular values, or low‑rank conditions become test statistics. The authors demonstrate how each family captures complementary information: edge invariants are highly local, quartet invariants are robust to noise, and flattening invariants provide global constraints.

From a computational standpoint, the paper outlines a complete pipeline for using invariants on real data. First, empirical frequencies are obtained from aligned sequence data, optionally regularized by Bayesian smoothing. Next, a candidate set of invariants is selected (often a Gröbner basis for the ideal of the model) and evaluated on the empirical distribution. Because real data are noisy, the invariants will not be exactly zero; the authors propose measuring deviation using L₂ distances, χ²‑type statistics, or bootstrap‑derived p‑values. Multiple‑testing correction (e.g., false discovery rate control) is essential when many invariants are examined simultaneously. To mitigate the combinatorial explosion of invariants for large trees, dimensionality‑reduction techniques such as principal component analysis or random projections are suggested before the final hypothesis testing stage. The tree topology that maximizes the number of satisfied invariants (or minimizes a weighted sum of deviations) is then chosen, optionally combined with a voting scheme or Bayesian model averaging to incorporate uncertainty.

The literature review situates invariants within a broader historical context. Early algebraic work by Allman, Rhodes, and Sturmfels established the connection between phylogenetic models and algebraic varieties. Lake’s quartet invariants (1987) demonstrated practical utility, while more recent advances exploit tensor decomposition, semidefinite programming, and even deep‑learning architectures to approximate invariant evaluation on massive genomic datasets. The authors argue that invariants enjoy two key advantages over traditional maximum‑likelihood or Bayesian MCMC methods: (1) they often require far fewer computational resources because they bypass likelihood evaluation, and (2) they can be intrinsically robust to certain model misspecifications, as the vanishing of a polynomial is a qualitative rather than quantitative condition. However, the paper also acknowledges significant challenges: (i) the need for complete invariant sets for complex models (e.g., mixture models, heterogeneous rates), (ii) the difficulty of controlling statistical error rates when invariants are evaluated on finite samples, and (iii) the lack of scalable algorithms for high‑dimensional tensors arising from thousands of taxa.

In the final section the authors enumerate open problems that they deem crucial for the field’s progress. First, a systematic construction of full invariant bases for multi‑state and mixture Markov models remains unresolved. Second, algorithmic innovations—such as parallel Gröbner‑basis computation, randomized low‑rank approximation, and GPU‑accelerated tensor flattening—are needed to bring invariant methods to genome‑scale phylogenetics. Third, rigorous statistical theory for the power of invariant‑based tests, including optimal weighting schemes and error‑rate control under dependence, must be developed. Fourth, hybrid frameworks that combine invariant checks with distance‑based or likelihood‑based criteria could leverage the strengths of each approach. The authors conclude that bridging algebraic theory with statistical practice will not only deepen our understanding of evolutionary processes but also yield computationally efficient, statistically sound tools for the next generation of phylogenetic analysis.
