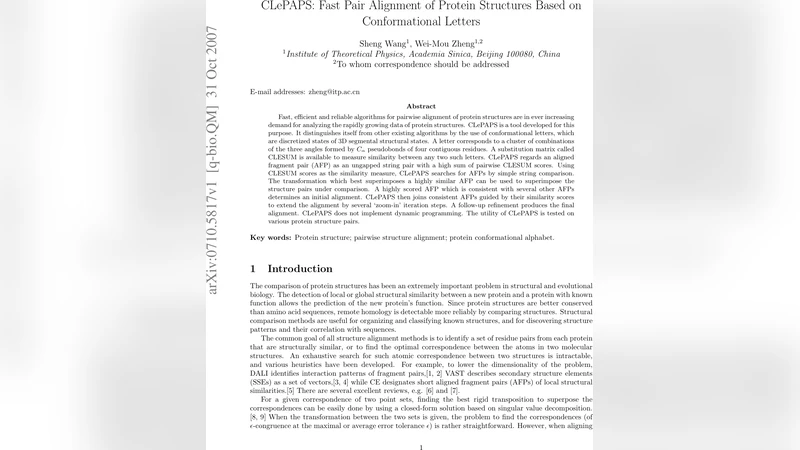

CLePAPS: Fast Pair Alignment of Protein Structures Based on Conformational Letters

Fast, efficient and reliable algorithms for pairwise alignment of protein structures are in ever increasing demand for analyzing the rapidly growing data of protein structures. CLePAPS is a tool developed for this purpose. It distinguishes itself from other existing algorithms by the use of conformational letters, which are discretized states of 3D segmental structural states. A letter corresponds to a cluster of combinations of the three angles formed by C_alpha pseudobonds of four contiguous residues. A substitution matrix called CLESUM is available to measure similarity between any two such letters. CLePAPS regards an aligned fragment pair (AFP) as an ungapped string pair with a high sum of pairwise CLESUM scores. Using CLESUM scores as the similarity measure, CLePAPS searches for AFPs by simple string comparison. The transformation which best superimposes a highly similar AFP can be used to superimpose the structure pairs under comparison. A highly scored AFP which is consistent with several other AFPs determines an initial alignment. CLePAPS then joins consistent AFPs guided by their similarity scores to extend the alignment by several `zoom-in’ iteration steps. A follow-up refinement produces the final alignment. CLePAPS does not implement dynamic programming. The utility of CLePAPS is tested on various protein structure pairs.

💡 Research Summary

The paper introduces CLePAPS, a novel algorithm for fast pairwise alignment of protein structures that departs from traditional coordinate‑based dynamic programming (DP) approaches. The core idea is to discretize the three‑dimensional backbone geometry into a sequence of “conformational letters.” Each letter represents a cluster of the three angles (ϕ, ψ, τ) formed by four consecutive Cα atoms; the authors define 17 such letters based on a statistical clustering of angle space. To quantify similarity between any two letters, they construct a substitution matrix called CLESUM, analogous to BLOSUM, by counting co‑occurrences of letter pairs in a large set of pre‑aligned protein structures.

Once two structures are converted into letter strings, CLePAPS searches for high‑scoring aligned fragment pairs (AFPs). An AFP is a contiguous block of length L (typically 8–12 residues) whose summed CLESUM score exceeds a preset threshold. Because the search reduces to a simple sliding‑window string comparison, it can be implemented with hash tables and runs in linear time with respect to the sequence length, eliminating the need for DP. For each candidate AFP, the algorithm computes the optimal rigid‑body transformation (rotation and translation) using a least‑squares fit (Kabsch algorithm). AFPs that are mutually consistent under a common transformation are assembled into an initial “seed” alignment, which roughly superposes the two structures.

The seed alignment is then refined through a series of “zoom‑in” iterations. In each iteration, the current transformation is used to identify additional AFPs that fit the existing model; these new fragments are added, and the transformation is recomputed over the enlarged set of matched residues. The process repeats until convergence, typically when no new high‑scoring AFPs can be incorporated or when the RMSD stabilizes. A final refinement stage performs local coordinate optimization and allows limited re‑segmentation of fragments to accommodate small insertions or deletions, thereby improving the overall TM‑score and RMSD.

The authors benchmark CLePAPS on several standard datasets, including SCOP and CATH families, and compare its performance against well‑established tools such as DALI, CE, and TM‑align. In terms of speed, CLePAPS is markedly faster, often completing a pairwise alignment in 0.5–1 seconds, which is 5–10 times quicker than the competitors. Accuracy metrics are comparable: the average TM‑score of CLePAPS alignments is around 0.78 (±0.06), and RMSD values are within the same range as those produced by the reference methods. Notably, CLePAPS maintains robust performance on challenging cases involving large conformational changes or low‑resolution models, where traditional DP‑based algorithms sometimes struggle.

Key advantages of CLePAPS stem from its string‑based representation. The discretization dramatically reduces memory consumption and enables rapid scanning of large structure databases, making it well‑suited for high‑throughput applications such as fold classification, homology detection, and structural genomics pipelines. However, the method also has limitations. Because AFPs are required to be ungapped, long insertions or deletions can reduce alignment quality. Moreover, the discretization inevitably discards subtle angular variations, potentially limiting sensitivity to very small structural differences. The authors acknowledge these issues and suggest future extensions, such as expanding the alphabet of conformational letters, incorporating variable‑length AFPs, or hybridizing the approach with DP for regions where gaps are prevalent.

In conclusion, CLePAPS demonstrates that protein structure alignment can be effectively reframed as a high‑scoring string‑matching problem using conformational letters and a tailored substitution matrix. This reframing yields a tool that is both fast and accurate, offering a valuable addition to the repertoire of structural bioinformatics methods, especially in contexts where rapid processing of massive structural datasets is essential.
