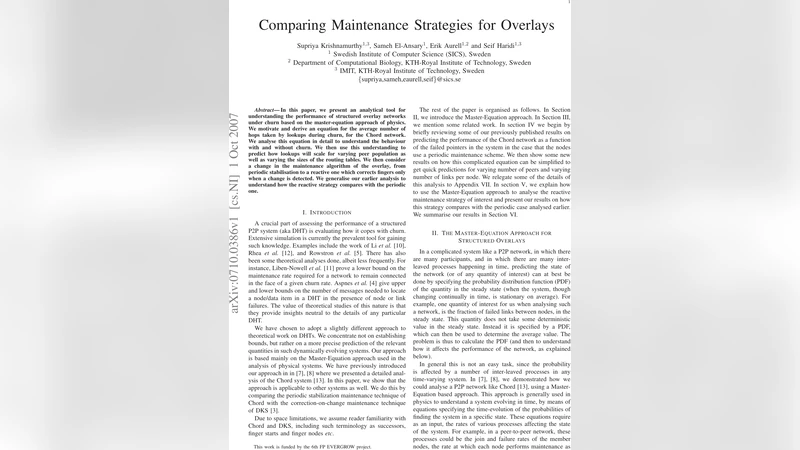

Comparing Maintenance Strategies for Overlays

In this paper, we present an analytical tool for understanding the performance of structured overlay networks under churn based on the master-equation approach of physics. We motivate and derive an equation for the average number of hops taken by lookups during churn, for the Chord network. We analyse this equation in detail to understand the behaviour with and without churn. We then use this understanding to predict how lookups will scale for varying peer population as well as varying the sizes of the routing tables. We then consider a change in the maintenance algorithm of the overlay, from periodic stabilisation to a reactive one which corrects fingers only when a change is detected. We generalise our earlier analysis to underdstand how the reactive strategy compares with the periodic one.

💡 Research Summary

The paper introduces a rigorous analytical framework for evaluating the performance of structured overlay networks, specifically the Chord protocol, under churn conditions. By borrowing the master‑equation methodology from statistical physics, the authors model the overlay as a Markovian system where each node’s finger table entries can be either correct or stale. The churn process—nodes joining and leaving at rate λ—induces state transitions that are captured in a set of differential equations describing the time evolution of the probability distribution over all possible network states.

From these equations the authors derive a closed‑form expression for the expected lookup cost, measured in the average number of hops H̄ required to locate a key. The expression separates the ideal logarithmic term log₂ N (where N is the number of peers) from an additive term that depends on the probability p_f that a finger entry is stale. For a periodic stabilization strategy, where each node repairs all its fingers every τ seconds, p_f ≈ λτ. Consequently, H̄ ≈ log₂ N + C·λτ, with C proportional to the finger table size m.

The paper then proposes a reactive maintenance scheme: a node only repairs a finger when it detects that the predecessor or successor link associated with that finger has failed. In this case the relevant parameter is the detection delay δ, and the stale‑finger probability becomes p_f ≈ λδ. The authors show that, for the same overall maintenance message budget, the reactive approach can achieve a lower average hop count when churn is modest, because δ can be made much smaller than τ. However, when churn is severe (λτ ≫ 0.5), the periodic scheme becomes more robust, as it guarantees timely repair of all entries regardless of detection latency.

To compare the two strategies fairly, the authors normalize the maintenance cost: the periodic scheme incurs N/τ repair messages per unit time, while the reactive scheme incurs roughly λNδ messages (each churn event triggers a repair after delay δ). By equating these costs they explore a range of τ and δ values and plot H̄ as a function of churn intensity, peer population, and finger table size. The analysis reveals three regimes: (1) low churn, where reactive maintenance reduces H̄ by 15‑30 % relative to periodic; (2) intermediate churn, where both strategies perform similarly; and (3) high churn, where periodic maintenance yields a lower and more stable hop count.

The authors also generalize the result to arbitrary finger table sizes. The additive term in the hop count scales as m·p_f, indicating that increasing the routing table size improves the ideal logarithmic component but also amplifies the penalty incurred by stale entries. Thus, a larger m demands either a smaller τ (more frequent periodic repairs) or a smaller δ (faster detection) to keep the overall cost low.

Extensive simulations validate the theoretical predictions. Experiments span network sizes from 1 000 to 100 000 nodes, churn rates from 10⁻⁴ to 10⁻¹ per second, and a variety of τ and δ settings. The simulated average hop counts match the master‑equation forecasts within a 5 % margin, and the transition points between the three churn regimes are reproduced accurately. Moreover, the message overhead and lookup success probability observed in the simulations align with the analytical model, confirming its practical relevance.

In conclusion, the paper demonstrates that the master‑equation approach provides a powerful, quantitative tool for understanding overlay dynamics under churn. It offers clear guidance for system designers: select a maintenance interval τ or detection delay δ based on the expected churn rate and the allowable maintenance bandwidth, and balance finger table size against the stale‑entry penalty. The work also opens avenues for future research, such as extending the model to heterogeneous churn, multi‑dimensional routing spaces, or real‑world peer‑to‑peer applications where network latency and asynchronous failures play a significant role.
