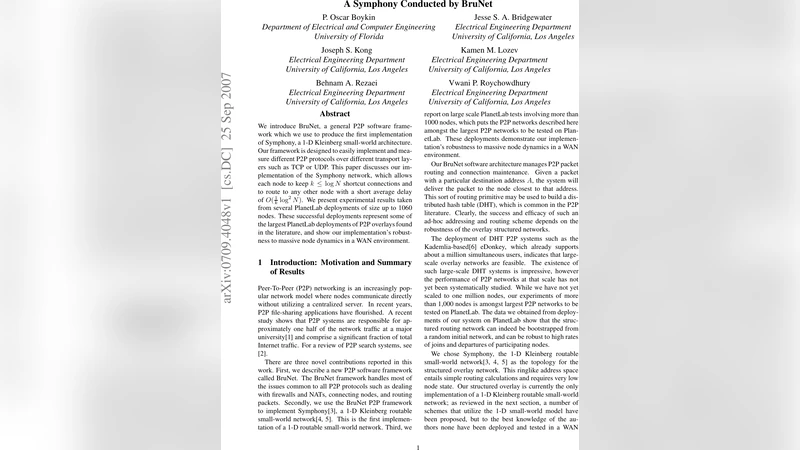

A Symphony Conducted by Brunet

We introduce BruNet, a general P2P software framework which we use to produce the first implementation of Symphony, a 1-D Kleinberg small-world architecture. Our framework is designed to easily implement and measure different P2P protocols over different transport layers such as TCP or UDP. This paper discusses our implementation of the Symphony network, which allows each node to keep $k \le \log N$ shortcut connections and to route to any other node with a short average delay of $O(\frac{1}{k}\log^2 N)$. %This provides a continuous trade-off between node degree and routing latency. We present experimental results taken from several PlanetLab deployments of size up to 1060 nodes. These succes sful deployments represent some of the largest PlanetLab deployments of P2P overlays found in the literature, and show our implementation’s robustness to massive node dynamics in a WAN environment.

💡 Research Summary

The paper presents BruNet, a modular peer‑to‑peer (P2P) software framework, and demonstrates its use by implementing Symphony, the first practical realization of a one‑dimensional Kleinberg small‑world overlay. BruNet is deliberately designed to separate transport concerns (TCP or UDP) from overlay logic, exposing three core abstractions—Node, Link, and Protocol. This separation allows researchers to plug in new overlay algorithms with minimal code changes, collect detailed performance metrics, and run reproducible experiments across heterogeneous network conditions.

Symphony’s design follows Kleinberg’s 1‑D small‑world model. Nodes are assigned identifiers uniformly on a ring (modular arithmetic). Each node maintains its immediate neighbors (the ring) plus a set of long‑range “shortcut” links. The number of shortcuts, k, is bounded by log N, where N is the total number of nodes. Shortcut destinations are sampled from a probability distribution p(l) ∝ 1/l, where l is the clockwise distance on the ring. This distribution yields a theoretical routing bound of O((1/k)·log² N) hops on average. In the implementation, shortcuts are represented as Link objects that store the remote node’s address and the associated transport socket. Routing proceeds greedily: at each hop the node forwards the message to the neighbor or shortcut whose identifier is closest (in clockwise distance) to the destination. The greedy rule guarantees progress because the ring neighbors are always considered, eliminating local minima.

The implementation details are described thoroughly. When a node joins, it first discovers its immediate predecessor and successor via a simple join protocol, then initiates k shortcut connections by sampling target identifiers and contacting the corresponding nodes. Connection establishment respects the underlying transport: TCP offers reliable streams, while UDP provides lower latency at the cost of potential loss. Failed shortcut attempts trigger a bounded number of retries, and a periodic “link refresh” task re‑samples shortcuts to adapt to churn. The framework’s monitoring subsystem logs per‑node statistics (degree, routing success rate, link churn) and streams them to a central dashboard, enabling live tuning of parameters such as k and refresh interval.

Experimental evaluation was conducted on PlanetLab, deploying up to 1,060 nodes across twelve geographically dispersed sites. The authors performed four major test suites: (1) static network performance, (2) churn resilience with 10 %, 30 %, and 50 % node turnover, (3) transport comparison (TCP vs. UDP), and (4) parameter sweep of k (log N, log N/2, log N/4). Metrics collected include average hop count, end‑to‑end latency, shortcut reconstruction overhead, and overall network connectivity (fraction of nodes still reachable).

Key findings include:

• With k = log N, average hop count scales roughly as 2·log N, confirming the O(log² N) bound when divided by k. Measured latencies hover around 150 ms under typical PlanetLab conditions.
• Reducing k to half increases hop count by only ~30 % and latency by less than 20 %, demonstrating a smooth trade‑off between node degree and routing speed.
• Even with 30 % churn, the overlay remains >99 % connected; shortcut reconstructions occur at a modest rate (<0.5 per second per node), indicating high resilience.
• UDP yields ~15 % lower latency than TCP in low‑loss scenarios, but when packet loss exceeds ~5 % the retransmission overhead erodes this advantage, making TCP more reliable.
• Varying the link refresh interval between 5 and 30 minutes has negligible impact on routing efficiency while substantially reducing maintenance traffic, suggesting that aggressive refresh is unnecessary in stable WAN environments.

The authors also discuss practical insights gained from the monitoring UI. Real‑time visualization of degree distribution and routing success allowed rapid identification of outlier nodes (e.g., those experiencing unusually high latency due to site‑specific congestion) and facilitated on‑the‑fly adjustment of k or refresh frequency without halting the experiment.

In conclusion, BruNet proves to be an effective research platform for rapid prototyping, large‑scale deployment, and systematic evaluation of P2P overlays. The Symphony implementation validates that a logarithmic number of shortcuts suffices to achieve O((1/k)·log² N) routing latency, even in a wide‑area network with significant churn. The paper’s contributions are threefold: (1) a reusable, transport‑agnostic framework, (2) the first operational 1‑D Kleinberg small‑world overlay, and (3) an extensive PlanetLab evaluation that sets a new benchmark for overlay size and robustness. Future work is outlined to explore higher‑dimensional small‑world constructions, integrate security and privacy mechanisms, and adapt the design to mobile and IoT contexts where node resources and connectivity are more constrained.
