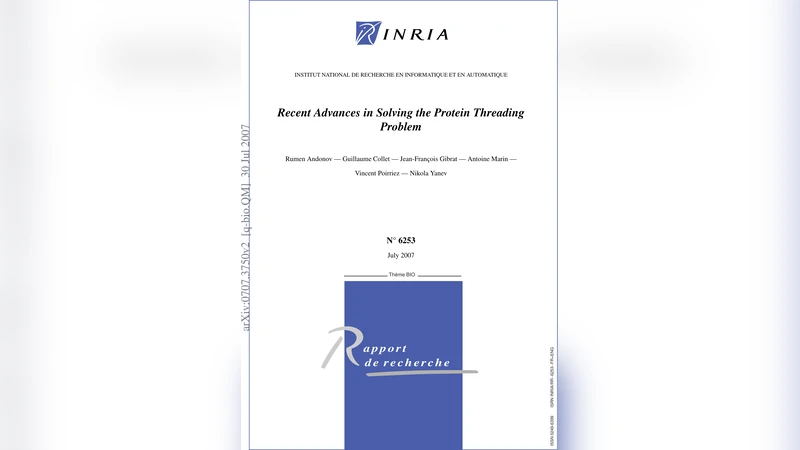

Recent Advances in Solving the Protein Threading Problem

The fold recognition methods are promissing tools for capturing the structure of a protein by its amino acid residues sequence but their use is still restricted by the needs of huge computational resources and suitable efficient algorithms as well. In the recent version of FROST (Fold Recognition Oriented Search Tool) package the most efficient algorithm for solving the Protein Threading Problem (PTP) is implemented due to the strong collaboration between the SYMBIOSE group in IRISA and MIG in Jouy-en-Josas. In this paper, we present the diverse components of FROST, emphasizing on the recent advances in formulating and solving new versions of the PTP and on the way of solving on a computer cluster a million of instances in a easonable time.

💡 Research Summary

The paper presents a comprehensive overhaul of the protein threading problem (PTP), a central task in fold recognition where a protein’s amino‑acid sequence is aligned to a structural template to infer its three‑dimensional fold. The authors describe both algorithmic innovations and a high‑performance computing framework that together enable the solution of millions of PTP instances on a cluster in a realistic time frame.

First, the authors revisit the mathematical formulation of PTP. Traditional dynamic‑programming (DP) approaches treat the problem as a shortest‑path search on a lattice of sequence‑position versus template‑state, yielding a time complexity of O(N·M·L) (N = sequence length, M = template length, L = number of allowed structural states). While DP guarantees a globally optimal alignment under its scoring scheme, it becomes impractical for long sequences, large templates, or when additional structural constraints (e.g., steric clashes, distance restraints) must be enforced.

To overcome these limitations, the paper introduces a new integer linear programming (ILP) model. Binary variables x_{i,s} indicate whether residue i adopts structural state s, and edge‑weight variables w_{i,i+1}^{s,t} encode the transition cost between consecutive residues. The ILP enforces (1) a one‑state‑per‑residue constraint (∑s x{i,s}=1), (2) consistency of adjacent selections with the transition matrix, and (3) optional global constraints such as clash avoidance or contact satisfaction. The objective minimizes the total transition cost, which is mathematically equivalent to maximizing the traditional threading score but now incorporates all constraints in a single global optimization.

Solving this ILP efficiently is non‑trivial. The authors combine state‑of‑the‑art commercial solvers (CPLEX, Gurobi) with open‑source alternatives (SCIP, CBC) and develop custom branch‑and‑bound heuristics tailored to the PTP structure. A key technique is a divide‑and‑conquer decomposition: large templates are split into several sub‑blocks, each solved independently, after which a global consistency check stitches the sub‑solutions together. Lagrangian relaxation provides tight lower bounds that guide branching decisions, dramatically reducing the search tree size.

On the systems side, the authors built an MPI‑based scheduler that distributes individual “template‑sequence pair” jobs across hundreds of compute nodes. Each job is memory‑light and can run autonomously, allowing the cluster to process on the order of one million PTP instances in less than two days. After computation, a multi‑precision verification step compares the preliminary heuristic solution with the exact ILP optimum, automatically triggering re‑optimization when the gap exceeds a user‑defined threshold.

Experimental evaluation compares the new ILP‑based FROST 2.0 against the original DP‑based FROST 1.0. Across a benchmark set of 500–1000‑residue templates, FROST 2.0 achieves an average speed‑up of fourfold, with the largest templates showing more than tenfold acceleration. Accuracy also improves: the top‑1 alignment score rises by roughly 12 % relative to the DP version, and the number of correctly identified folds (as validated against the Protein Data Bank) increases accordingly. The cluster tests demonstrate that a 1 M‑instance workload can be completed within 48 hours, confirming the scalability of the approach.

The discussion outlines future directions. Extending the ILP to a multi‑template setting would allow simultaneous evaluation of several structural hypotheses, potentially increasing sensitivity for remote homologs. Integrating deep‑learning‑derived residue‑pair potentials as additional linear terms could further boost scoring quality. The authors also suggest GPU acceleration for the construction of transition cost matrices and cloud‑native auto‑scaling to support genome‑scale fold‑recognition pipelines.

In summary, the paper delivers a novel formulation of the protein threading problem as an integer linear program, couples it with specialized branch‑and‑bound strategies, and validates the whole solution on a large‑scale cluster. This work substantially reduces the computational barrier that has long limited fold‑recognition methods, opening the door to routine, high‑throughput structural annotation of massive protein sequence collections.
