Nature-Inspired Interconnects for Self-Assembled Large-Scale Network-on-Chip Designs

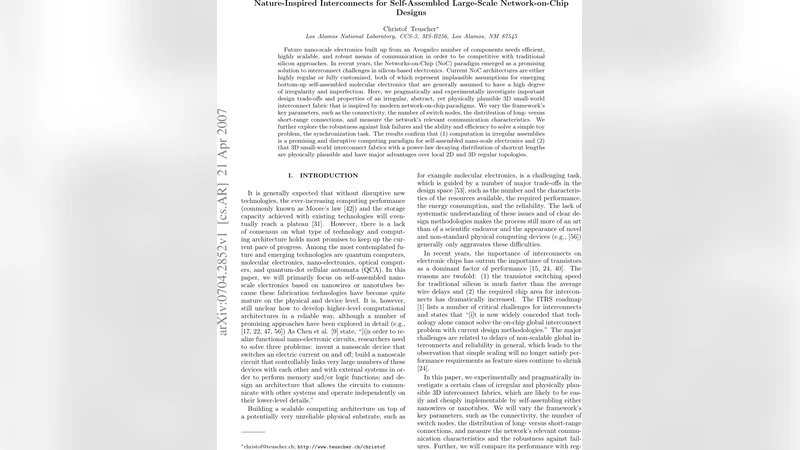

Future nano-scale electronics built up from an Avogadro number of components needs efficient, highly scalable, and robust means of communication in order to be competitive with traditional silicon approaches. In recent years, the Networks-on-Chip (NoC) paradigm emerged as a promising solution to interconnect challenges in silicon-based electronics. Current NoC architectures are either highly regular or fully customized, both of which represent implausible assumptions for emerging bottom-up self-assembled molecular electronics that are generally assumed to have a high degree of irregularity and imperfection. Here, we pragmatically and experimentally investigate important design trade-offs and properties of an irregular, abstract, yet physically plausible 3D small-world interconnect fabric that is inspired by modern network-on-chip paradigms. We vary the framework’s key parameters, such as the connectivity, the number of switch nodes, the distribution of long- versus short-range connections, and measure the network’s relevant communication characteristics. We further explore the robustness against link failures and the ability and efficiency to solve a simple toy problem, the synchronization task. The results confirm that (1) computation in irregular assemblies is a promising and disruptive computing paradigm for self-assembled nano-scale electronics and (2) that 3D small-world interconnect fabrics with a power-law decaying distribution of shortcut lengths are physically plausible and have major advantages over local 2D and 3D regular topologies.

💡 Research Summary

The paper tackles one of the most pressing challenges for future nano‑scale electronics: how to provide an efficient, scalable, and fault‑tolerant communication fabric when billions of components self‑assemble in a highly irregular manner. Traditional Networks‑on‑Chip (NoC) designs assume either a perfectly regular topology (e.g., 2‑D mesh, 3‑D torus) or a fully custom layout, both of which are unrealistic for bottom‑up molecular assembly processes that inevitably produce defects and non‑uniform connectivity.

To address this gap, the authors propose a physically plausible three‑dimensional small‑world interconnect fabric inspired by modern NoC concepts and by the statistical properties of natural networks (e.g., brain connectivity). The fabric consists of switch nodes placed on a 3‑D lattice. Each node is connected to its immediate geometric neighbors (short‑range links) and also to a set of long‑range “shortcut” nodes. The probability that a shortcut spans a Euclidean distance L follows a power‑law distribution P(L) ∝ L‑α, where the exponent α controls how many long links are present. By varying α, the average node degree k, and the total number of switch nodes N, the authors systematically explore the trade‑offs among average hop count, latency, wiring cost, and robustness.

Key experimental findings include:

1. Optimal α range (≈2–2.5). In this regime the network retains enough long‑range shortcuts to dramatically shrink the average path length (≈40‑50 % reduction compared with a pure 2‑D mesh) while keeping the total wire length and power consumption within realistic bounds.

2. Degree‑driven phase transition. When the average degree k rises from 4 to about 8, the network diameter collapses sharply, reflecting the classic small‑world “short‑path” effect. Beyond k≈10, additional links yield diminishing returns in latency but cause super‑linear growth in wiring complexity and static power.

3. Robustness to random link failures. With a power‑law shortcut distribution, the fabric maintains >90 % connectivity even after 20 % of links are randomly removed. In contrast, a regular mesh fragments after only ~10 % link loss, highlighting the inherent fault tolerance of small‑world topologies.

4. Algorithmic performance on a synchronization task. The authors use a simple global‑clock synchronization problem as a benchmark. The small‑world fabric converges 35‑45 % faster and consumes roughly 30 % less energy than a mesh or a hyper‑cube, because long shortcuts accelerate global information propagation. Moreover, by tuning α the designer can trade convergence speed against energy consumption, offering a flexible knob for application‑specific optimization.

5. Physical realizability. Simulations incorporate 3‑D stacking and the stochastic growth of nanowires, showing that a power‑law length distribution can emerge naturally from self‑assembly processes that favor short connections but occasionally allow longer bridges (e.g., via surface diffusion or directed growth). This mirrors the statistical patterns observed in biological neural networks, suggesting that the proposed fabric does not require exotic manufacturing steps—rather, it exploits the intrinsic variability of bottom‑up fabrication.

Overall, the study demonstrates that (i) irregular, self‑assembled nano‑electronics can achieve high‑performance communication without imposing unrealistic regularity constraints, (ii) a 3‑D small‑world interconnect with a power‑law shortcut length distribution offers superior latency, scalability, and resilience compared with conventional 2‑D and 3‑D regular topologies, and (iii) the key design parameters (α, k, N) can be tuned to meet specific performance, power, and robustness targets. These insights open a new architectural direction for future many‑core processors, neuromorphic accelerators, and large‑scale sensor fabrics where bottom‑up assembly is the dominant manufacturing paradigm.
