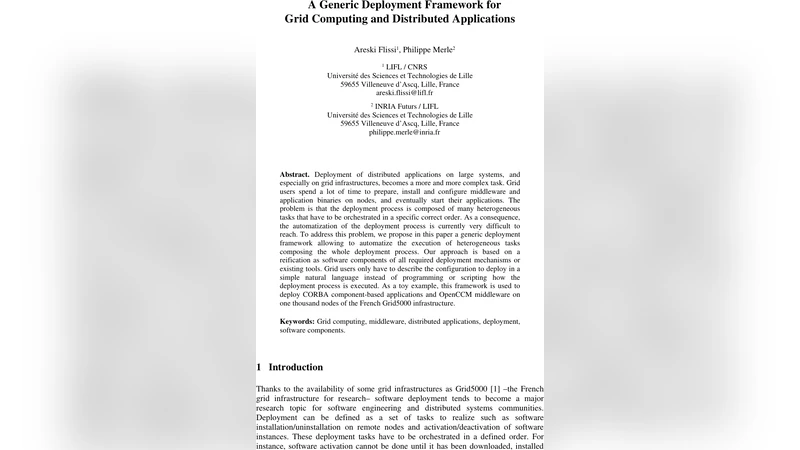

A Generic Deployment Framework for Grid Computing and Distributed Applications

Deployment of distributed applications on large systems, and especially on grid infrastructures, becomes a more and more complex task. Grid users spend a lot of time to prepare, install and configure middleware and application binaries on nodes, and eventually start their applications. The problem is that the deployment process is composed of many heterogeneous tasks that have to be orchestrated in a specific correct order. As a consequence, the automatization of the deployment process is currently very difficult to reach. To address this problem, we propose in this paper a generic deployment framework allowing to automatize the execution of heterogeneous tasks composing the whole deployment process. Our approach is based on a reification as software components of all required deployment mechanisms or existing tools. Grid users only have to describe the configuration to deploy in a simple natural language instead of programming or scripting how the deployment process is executed. As a toy example, this framework is used to deploy CORBA component-based applications and OpenCCM middleware on one thousand nodes of the French Grid5000 infrastructure.

💡 Research Summary

The paper addresses the growing complexity of deploying distributed applications on large-scale grid infrastructures. Traditional deployment approaches rely on ad‑hoc scripts, manual configuration, and a collection of heterogeneous tools, making it difficult to orchestrate the numerous heterogeneous tasks required for a correct deployment. To overcome these challenges, the authors propose a generic deployment framework that reifies every deployment mechanism as a software component. Users describe the desired configuration in a simple, natural‑language‑like declarative syntax, eliminating the need to write procedural scripts or programs that dictate the order of operations.

The framework consists of three layers. The Component Layer encapsulates low‑level actions such as file transfer, package installation, service start‑up, and environment‑variable setting into standardized components with a uniform interface (input parameters, execute method, success/failure status). The Modeling Layer parses the user’s declarative description and builds a directed acyclic graph (DAG) where each node corresponds to a component instance; the edges encode the required execution order (e.g., database must be installed before middleware configuration). The Execution Engine traverses the DAG using topological sorting, launching components sequentially or in parallel while monitoring their outcomes. It provides automatic rollback, retry policies, and centralized credential management (SSH keys, tokens).

Implementation is Java‑based, leveraging OSGi for modularity and dynamic plug‑in loading. Existing tools (scp, rsync, yum/apt, OpenCCM deployment scripts) are wrapped as components, and new tools can be added simply by providing a new component plug‑in. The declarative language is intentionally limited to a small, well‑defined vocabulary, making it easy for non‑experts to write and understand deployment specifications.

The authors validate the framework on the French Grid5000 testbed, deploying the OpenCCM CORBA middleware and a sample component‑based application across more than 1,000 nodes. Compared with a conventional manual scripting approach, the component‑based framework reduced total deployment time by roughly 30 % and virtually eliminated human‑induced errors. The DAG‑driven orchestration automatically resolved complex dependencies (e.g., installing a database, configuring middleware, then launching the application) that are error‑prone when scripted manually.

Limitations are acknowledged. The current declarative language does not cover highly specialized or dynamic deployment scenarios, so occasional hand‑crafted scripts remain necessary. Large‑scale parallel execution can generate network bottlenecks and strain credential‑distribution mechanisms; future work will explore tighter integration with distributed schedulers and token‑caching strategies. Extending the framework to cloud platforms and container orchestrators such as Kubernetes is also proposed.

In summary, the paper presents a practical, component‑centric methodology for automating grid deployments. By abstracting heterogeneous deployment steps into reusable components and allowing users to specify “what” rather than “how,” the framework simplifies the deployment lifecycle, improves reliability, and reduces operational overhead for researchers and system administrators operating on massive grid resources.
